Baldor VJPFPM2551T - 75//60HP, 1770//1470RPM, 3 Phase, 60//50HZ, 365J 50HZ Three Phase 60 HP

Save $2,788.50
BaldorSKU: VJPFPM2551T

Price:
Sale price$8,365.50 Regular price$11,154.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

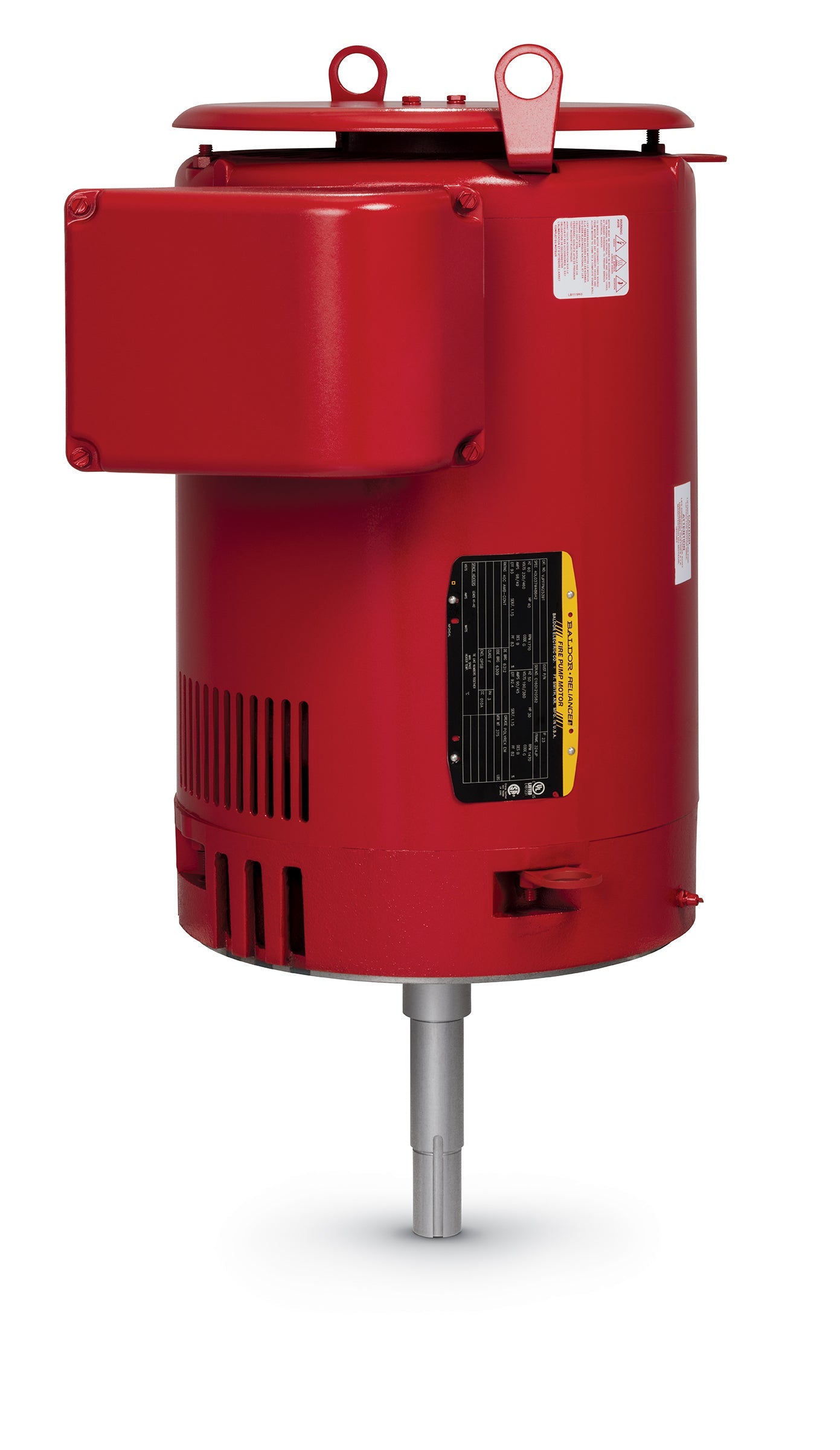

Baldor-Reliance Fire Pump Motor - Model VJPFPM2551T

Introducing the Baldor-Reliance Fire Pump Motor, a high-performance solution designed for reliable operation in fire protection applications. This motor features a robust 75/60 HP power rating and operates at speeds of 1770/1470 RPM, ensuring optimal performance for your fire pump needs.

Specifications:

  • Power: 75/60 HP
  • Speed: 1770/1470 RPM
  • Phase: 3 Phase
  • Frequency: 60/50 Hz
  • Frame Size: 365J

As a trusted vendor, Baldor delivers quality and durability, making this fire pump motor an essential component for any fire protection system. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in selecting the correct pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VJPFPM2551T to ensure compatibility. Our team is here to help you find the right item for your needs.

UPC 781568812228
Supplier Part Number VJPFPM2551T
Category AC Motors
Subcategory Fire Pump
Product Family Fire Pump Motor
Agency Approvals CSA EEV, CULUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 565.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VJPFPM2551T
Current @ Voltage 87.000 A @ 460.0 V, 84.000 A @ 380.0 V, 174.000 A @ 230.0 V, 168.000 A @ 190.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 365JP
Frame Material Steel
Frequency 50.00 Hz, 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 84.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 12 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4272M
Mounting Arrangement F1
Number of Poles 4
Output 60.000 hp @ 50 Hz, 75.000 hp @ 60 Hz
Output @ Frequency 60.000 HP @ 50 HZ, 75.000 HP @ 60 HZ
Overall Length 34.35 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1470 rpm, 1770 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 190 V @ 50 Hz, 380 V @ 50 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
Voltage @ Frequency 230.0 V @ 60 HZ, 190.0 V @ 50 HZ, 460.0 V @ 60 HZ, 380.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
