Baldor VJPFPM2542T-2/4 - 50 HP, 3520RPM, 3 Phase, 60HZ, 324JP, 4044M, Opsb, F 60HZ Three Phase 50 HP 4044 M Cable

Save $1,855.50
BaldorSKU: VJPFPM2542T-2/4

Price:
Sale price$5,566.50 Regular price$7,422.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

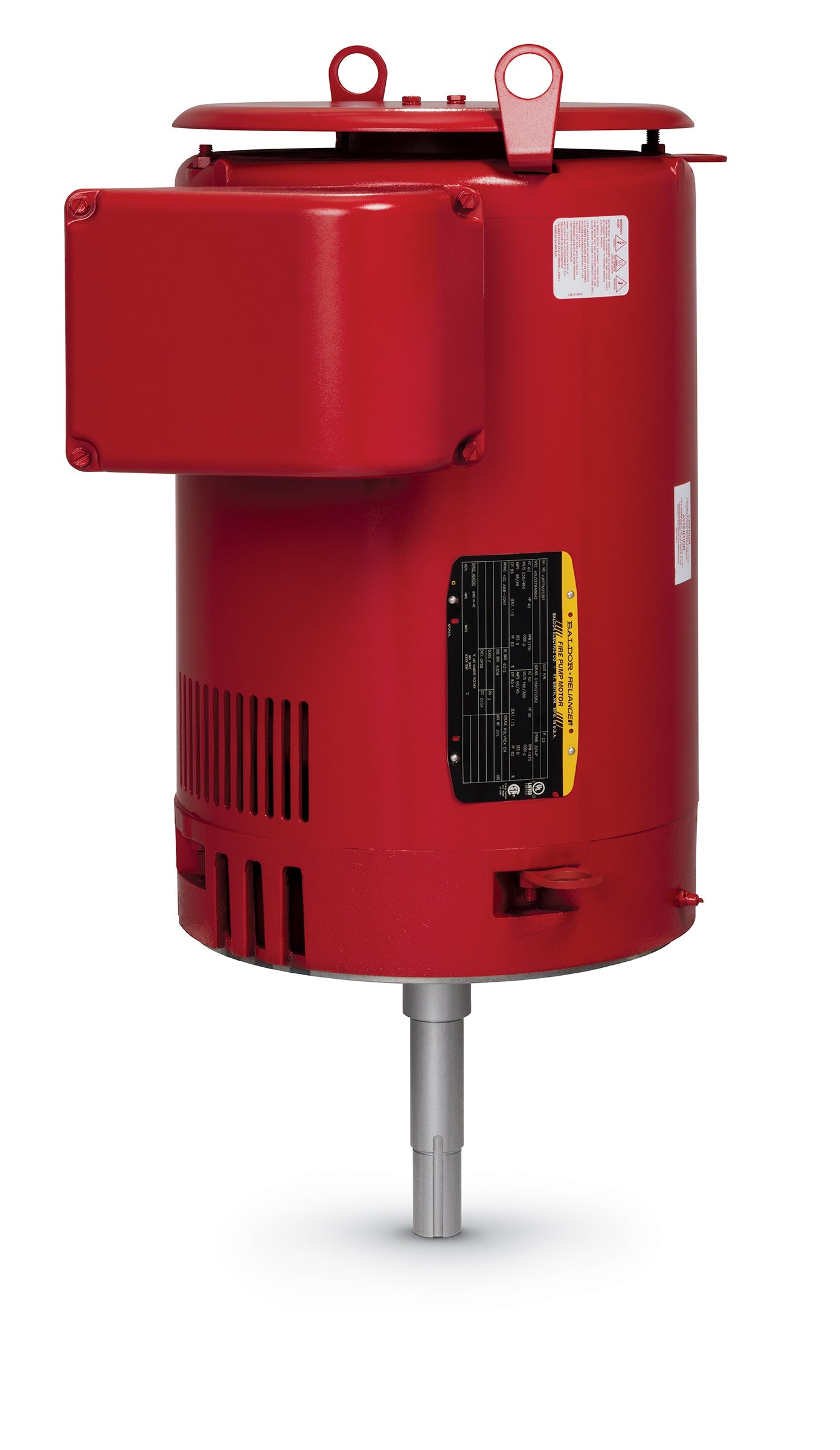

Baldor-Reliance Fire Pump - 50 HP

Introducing the Baldor VJPFPM2542T-2/4 Fire Pump, a high-performance solution designed for reliable fire protection. This robust fire pump features a powerful 50 HP motor, operating at 3520 RPM, and is engineered for three-phase power at 60Hz, ensuring optimal efficiency and performance in critical applications.

Specifications:

  • Power: 50 HP
  • Speed: 3520 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Model: 324JP
  • Frame: 4044M
  • Type: Fire Pump
  • Product Code: VJPFPM2542T-2/4

This Baldor fire pump is ideal for various applications requiring dependable fire protection. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you have access to the best products for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Our team is here to help you find the perfect solution!

UPC 781568816905
Supplier Part Number VJPFPM2542T-2/4
Category AC Motors
Subcategory Fire Pump
Product Family Fire Pump Motor
Agency Approvals CULUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 456.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VJPFPM2542T-2/4
Current @ Voltage 134.000 A @ 200.0 V, 67.000 A @ 400.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 324JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 67.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 12 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4044M
Mounting Arrangement F1
Number of Poles 2
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 31.21 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3520 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 200 V, 400 V
Voltage @ Frequency 200.0 V @ 60 HZ, 400.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
