Baldor VJPFPM2539T - 40 HP, 1770RPM, 3 Phase, 60//50HZ, 324JP, 4052M, Op 50HZ Three Phase 40 HP 4052 M Cable

Save $1,732.00
BaldorSKU: VJPFPM2539T

Price:
Sale price$5,196.00 Regular price$6,928.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

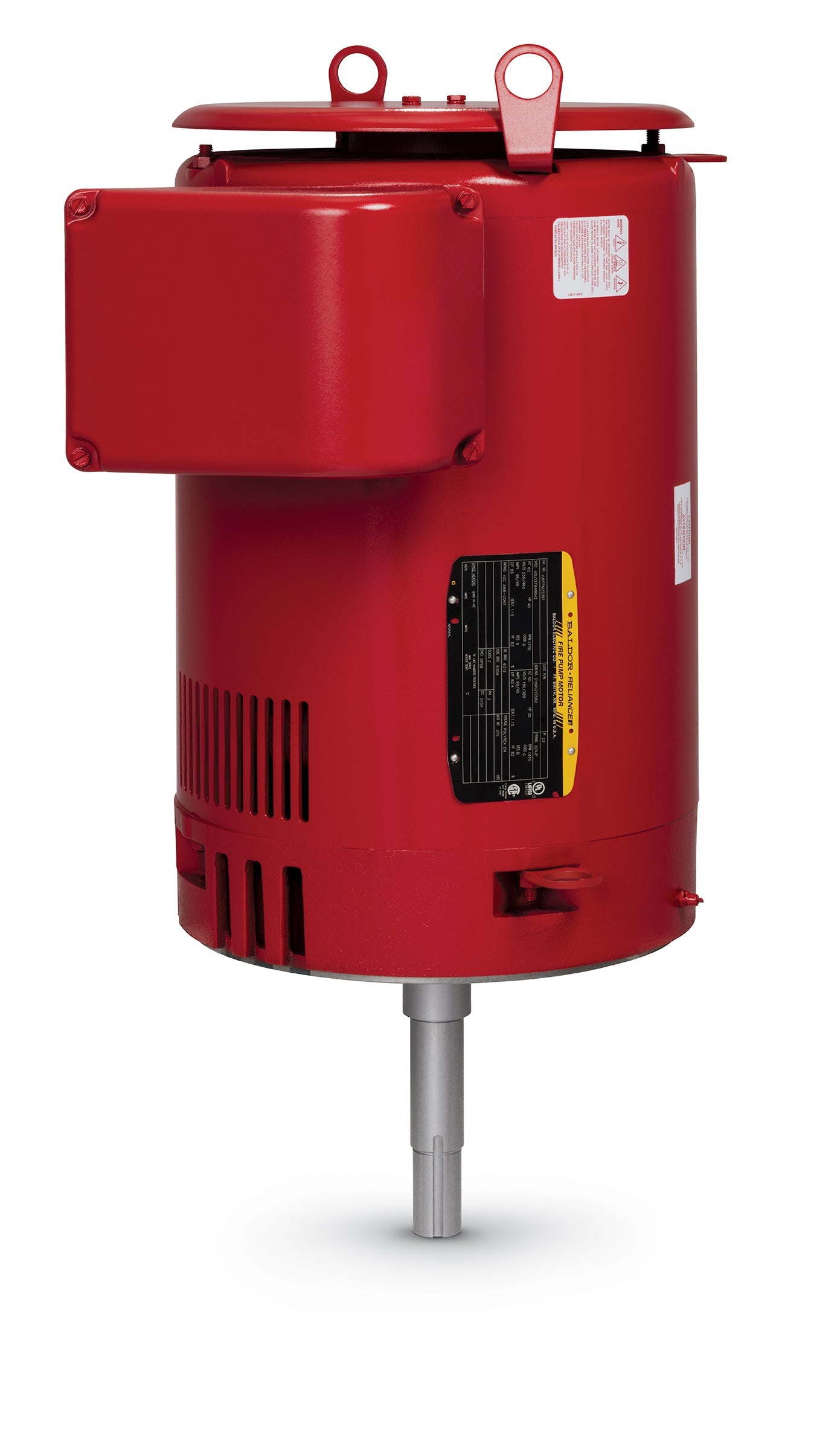

Baldor-Reliance Fire Pump Motor - 40 HP

Introducing the Baldor VJPFPM2539T Fire Pump Motor, a high-performance solution designed for reliable operation in demanding environments. With a robust 40 horsepower and a speed of 1770 RPM, this three-phase motor is engineered to meet the rigorous standards of fire pump applications.

Specifications:

  • Power: 40 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60/50 Hz
  • Frame: 324JP
  • SKU: VJPFPM2539T

This Baldor-Reliance motor is not only efficient but also built to last, making it an ideal choice for fire protection systems. At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts, ensuring you have access to the best products for your needs.

If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. Our team is here to help you find the perfect solution!

UPC 781568812174
Supplier Part Number VJPFPM2539T
Category AC Motors
Subcategory Fire Pump
Product Family General Purpose
Agency Approvals CULUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 375.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VJPFPM2539T
Current @ Voltage 49.000 A @ 460.0 V, 98.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 324JP
Frame Material Steel
Frequency 50.00 Hz, 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 49.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 12 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4052M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 31.13 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
