Description

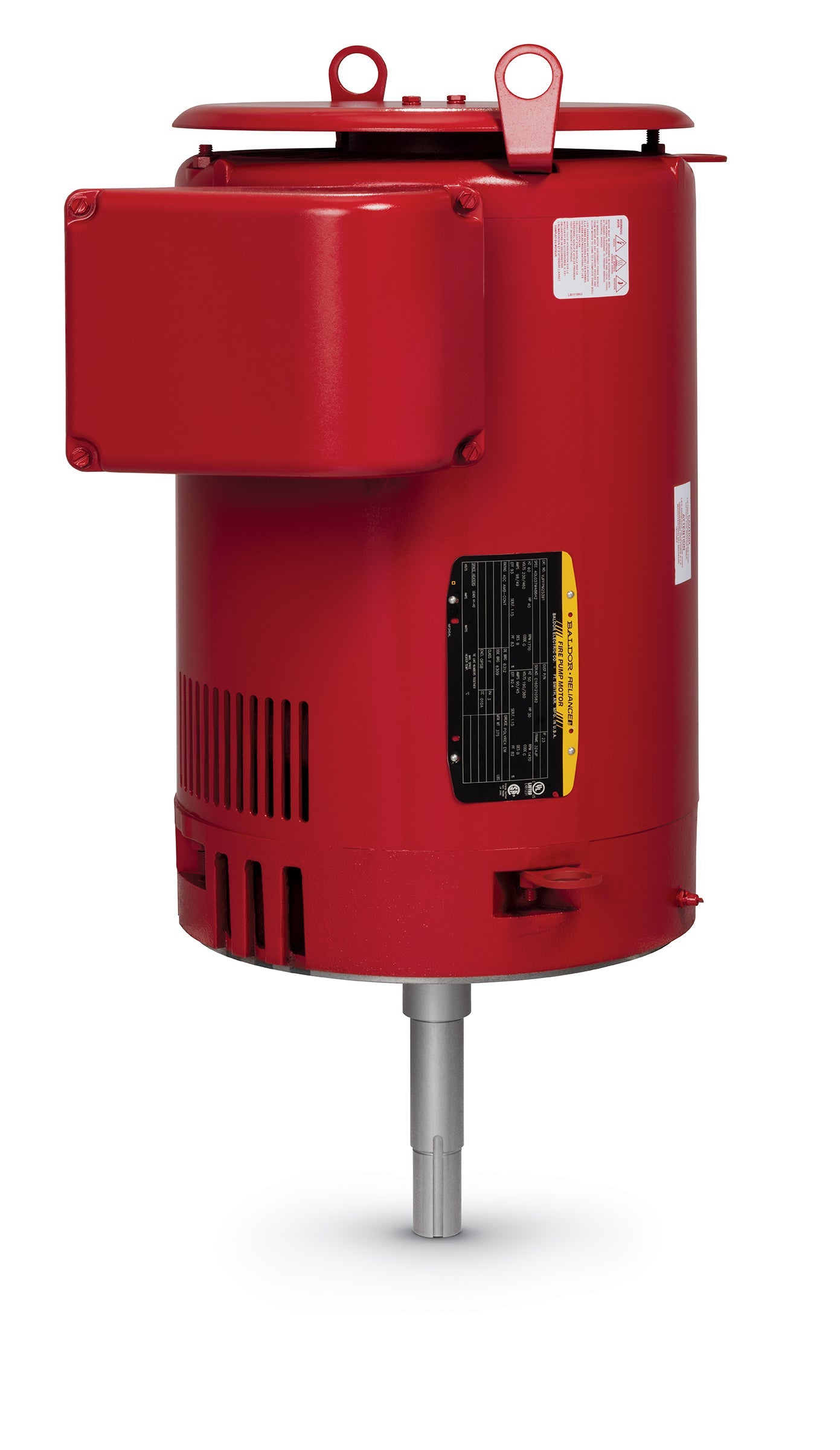

Baldor Replacement Part — Component
The Baldor VJPFPM2516T for Baldor pump systems.
Part Specifications
| Part Number | VJPFPM2516T |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568812136
- Supplier Part Number
- VJPFPM2516T
- Category
- AC Motors
- Subcategory
- Fire Pump
- Product Family
- General Purpose
- Agency Approvals
- CSA EEV, CULUS
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 221.0
- Auxillary Box
- No Auxillary Box
- Auxillary Box Lead Termination
- None
- Base Indicator
- No Mounting
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Blower
- None
- Catalog Number
- VJPFPM2516T
- Current @ Voltage
- 58.000 A @ 230.0 V, 56.000 A @ 190.0 V, 29.000 A @ 460.0 V, 28.000 A @ 380.0 V
- Design Code
- B
- Drip Cover
- Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 91.0 %
- Electrically Isolated Bearing
- Not Electrically Isolated
- Enclosure
- ODP
- Feedback Device
- NO FEEDBACK
- Frame
- 256JP
- Frame Material
- Steel
- Frequency
- 50.00 Hz, 60.00 Hz
- Front Face Code
- Standard
- Front Shaft Indicator
- None
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 28.0 a
- Insulation Class
- F
- Inverter Code
- Not Inverter
- KVA Code
- F
- Lifting Lugs
- Vertical Lifting Lugs
- Locked Bearing Indicator
- Locked Bearing
- Motor Lead Exit
- Ko Box
- Motor Lead Quantity/Wire Size
- 12 @ 10 AWG
- Motor Lead Termination
- Flying Leads
- Motor Letter Type
- Three Phase
- Motor Standards
- NEMA
- Motor Type
- 3934M
- Mounting Arrangement
- F1
- Number of Poles
- 2
- Output
- 20.000 hp @ 50 Hz, 25.000 hp @ 60 Hz
- Output @ Frequency
- 20.000 HP @ 50 HZ, 25.000 HP @ 60 HZ
- Overall Length
- 28.15 IN
- Phase
- 3
- Power Factor
- 88
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- C-Face
- Pulley Shaft Indicator
- Tapped & Key
- Rodent Screen
- Included
- Service Factor
- 1.15
- Shaft Diameter
- 1.750 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- Shaft Slinger
- Speed
- 3515 rpm
- Speed Code
- Single Speed
- Starting Method
- Wye Start - Delta Run
- Synchronous Speed
- 3,600 rpm
- Synchronous Speed @ Frequency
- 3600 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Vibration Sensor Indicator
- No Vibration Sensor
- Voltage
- 190 V @ 50 Hz, 380 V @ 50 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
- Voltage @ Frequency
- 460.0 V @ 60 HZ, 380.0 V @ 50 HZ, 230.0 V @ 60 HZ, 190.0 V @ 50 HZ
- Winding Thermal 1
- None
- Winding Thermal 2
- None
