Baldor VHECP4316T - 75 HP, 1780RPM, 3 Phase, 60HZ, 365 HP, 1482M, TEFC 60HZ Three Phase 75 HP 365 HP 1482 M Cable

Save $5,515.00
BaldorSKU: VHECP4316T

Price:
Sale price$16,545.00 Regular price$22,060.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

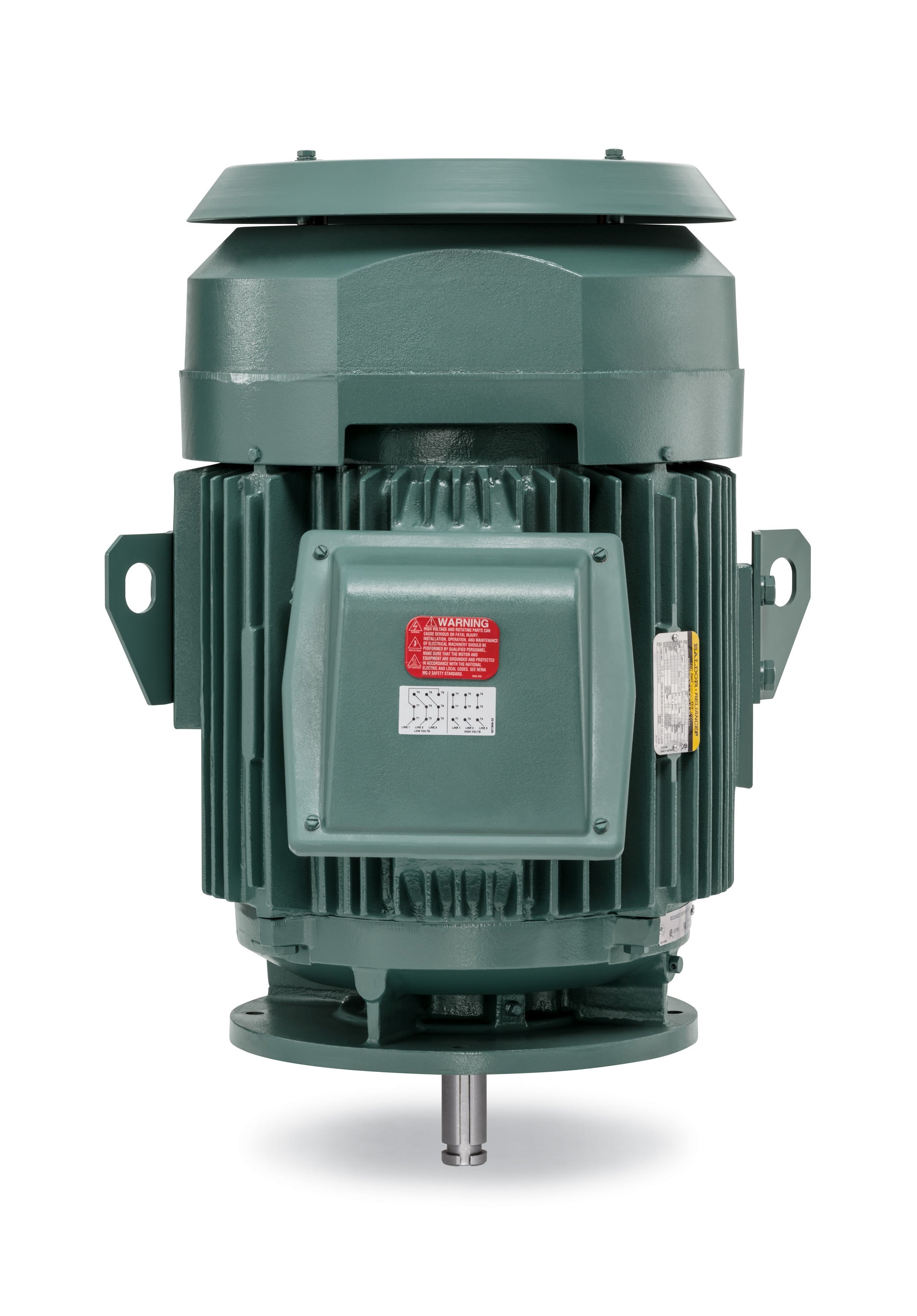

Baldor-Reliance Vertical P-Base Motor - Model VHECP4316T

Experience exceptional performance with the Baldor-Reliance Vertical P-Base Motor, designed for demanding applications. This robust motor features a powerful 75 HP output and operates at 1780 RPM, making it ideal for various industrial uses. With a 3 Phase configuration and 60HZ frequency, this motor ensures reliable and efficient operation.

Key specifications include:

  • Power: 75 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Model: 1482M
  • Type: TEFC (Totally Enclosed Fan Cooled)

As a trusted supplier, Pump-Stop.com is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this model, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your equipment with the reliable Baldor VHECP4316T Vertical P-Base Motor today!

UPC 781568397107
Supplier Part Number VHECP4316T
Category AC Motors
Subcategory Vertical P-Base Motors
Agency Approvals CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1002.0
Auxillary Box No Auxillary Box
Base Indicator Bracket Mounted
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number VHECP4316T
Current @ Voltage 171.000 A @ 230.0 V, 85.900 A @ 460.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.4 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 365HP
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 85.9 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36070M
Mounting Arrangement F1
Number of Poles 4
Output 75.000 hp
Output @ Frequency 75.000 HP @ 60 HZ
Overall Length 35.36 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code P-Base
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
