Baldor VHECP4310T - 60 HP, 3550RPM, 3 Phase, 60HZ, 364 HP, 1452M, TEFC, F 60HZ Three Phase 60 HP 364 HP 1452 M Cable

Save $5,280.75
BaldorSKU: VHECP4310T

Price:
Sale price$15,842.25 Regular price$21,123.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

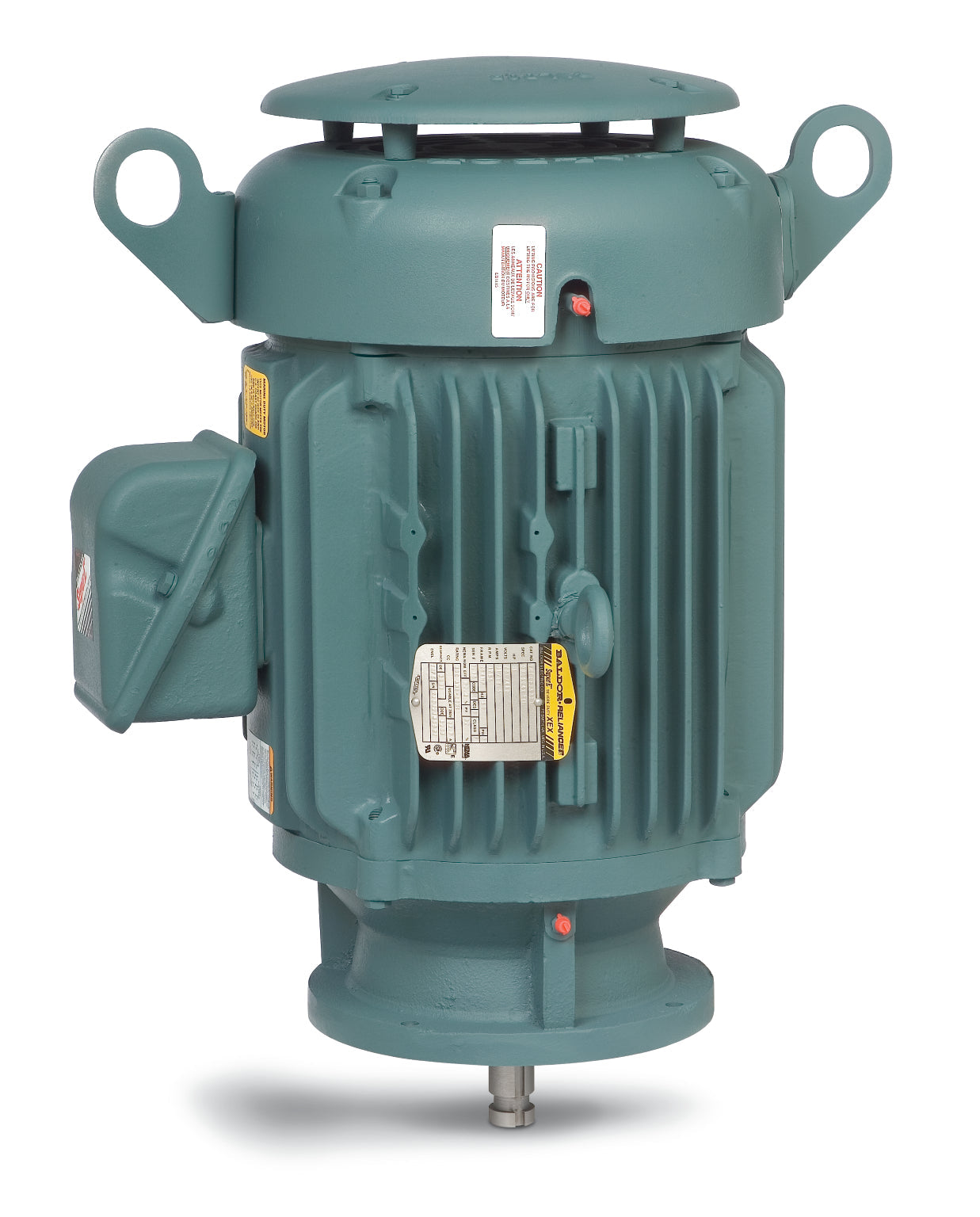

Baldor-Reliance Vertical P-Base Motor - Model VHECP4310T

Experience exceptional performance with the Baldor-Reliance Vertical P-Base Motor, designed for demanding applications. This robust motor features a powerful 60 HP output and operates at 3550 RPM, making it ideal for various industrial uses.

  • Power Rating: 60 HP
  • Speed: 3550 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 364 HP
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VHECP4310T

This motor is engineered for durability and efficiency, making it a reliable choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VHECP4310T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568397411
Supplier Part Number VHECP4310T
Category AC Motors
Subcategory Vertical P-Base Motors
Agency Approvals CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 959.0
Auxillary Box No Auxillary Box
Base Indicator Bracket Mounted
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number VHECP4310T
Current @ Voltage 130.000 A @ 230.0 V, 65.100 A @ 460.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364HP
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 65.1 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36056M
Mounting Arrangement F1
Number of Poles 2
Output 60.000 hp
Output @ Frequency 60.000 HP @ 60 HZ
Overall Length 35.36 IN
Phase 3
Power Factor 91
Pulley End Bearing Type Ball
Pulley Face Code P-Base
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3560 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
