Baldor VHECP2334T - 20 HP, 1770RPM, 3 Phase, 60HZ, 256 HP, 0960M, TEFC, F 60HZ Three Phase 20 HP 256 HP 0960 M Cable

Save $1,920.00
BaldorSKU: VHECP2334T

Price:
Sale price$5,760.00 Regular price$7,680.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

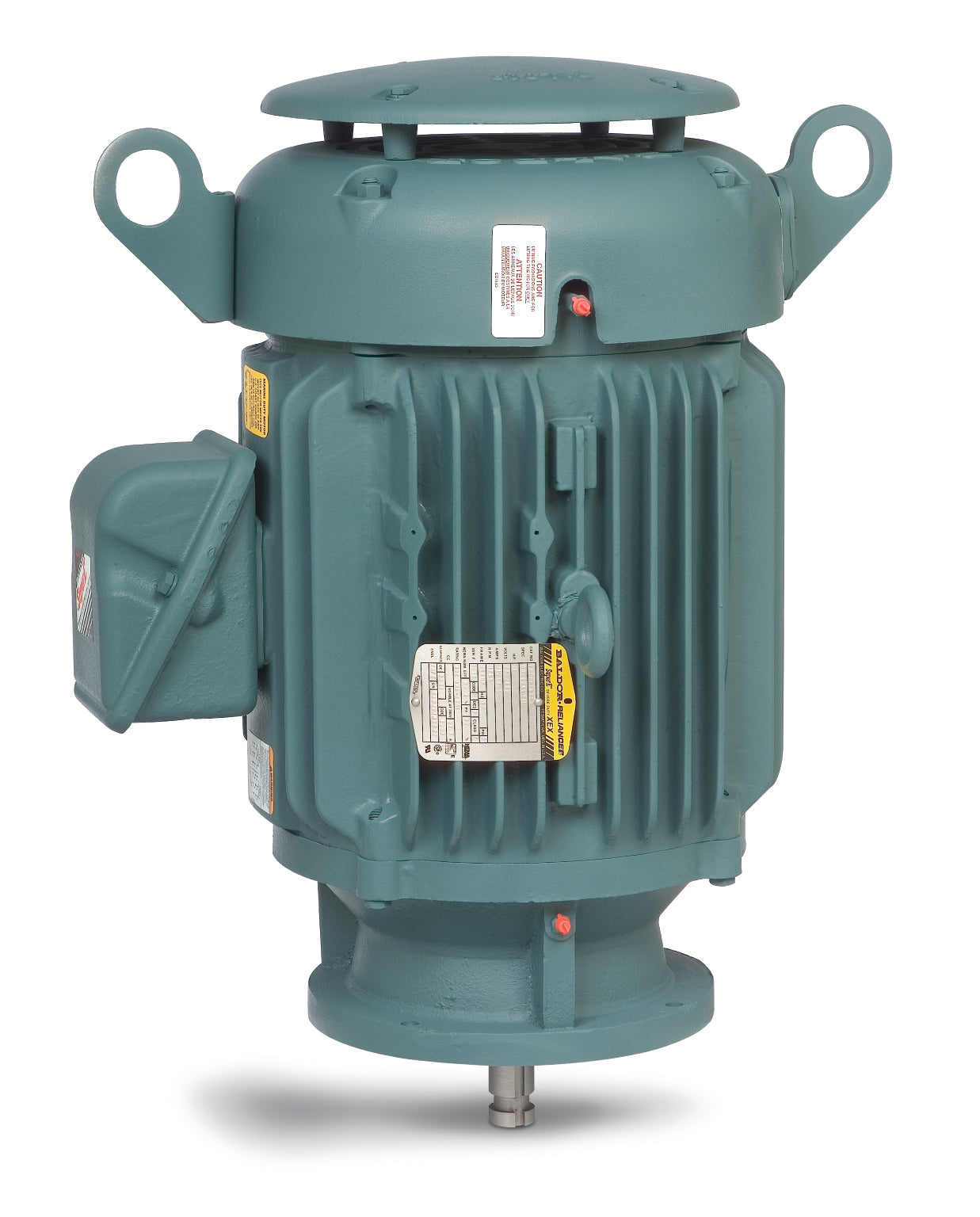

Baldor-Reliance Vertical P-Base Motor - Model VHECP2334T

Upgrade your pumping system with the Baldor VHECP2334T Vertical P-Base Motor. This high-performance motor delivers 20 HP and operates at 1770 RPM, making it an ideal choice for various industrial applications. Designed for 3-phase power and 60Hz frequency, this motor ensures reliable and efficient operation.

Key specifications include:

  • Power: 20 HP
  • Speed: 1770 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 256 HP
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VHECP2334T

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568396742
Supplier Part Number VHECP2334T
Category AC Motors
Subcategory Vertical P-Base Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 337.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VHECP2334T
Current @ Voltage 48.000 A @ 230.0 V, 52.000 A @ 208.0 V, 24.000 A @ 460.0 V
Design Code A
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256HP
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0960M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 26.11 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code P-Base
Pulley Shaft Indicator P-Base Groove & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
