Baldor VFWDM3542 - .75 HP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, TEFC, F1 60HZ Three Phase 75 HP 3514 M Cable 56°C

Save $301.75
BaldorSKU: VFWDM3542

Price:
Sale price$905.25 Regular price$1,207.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

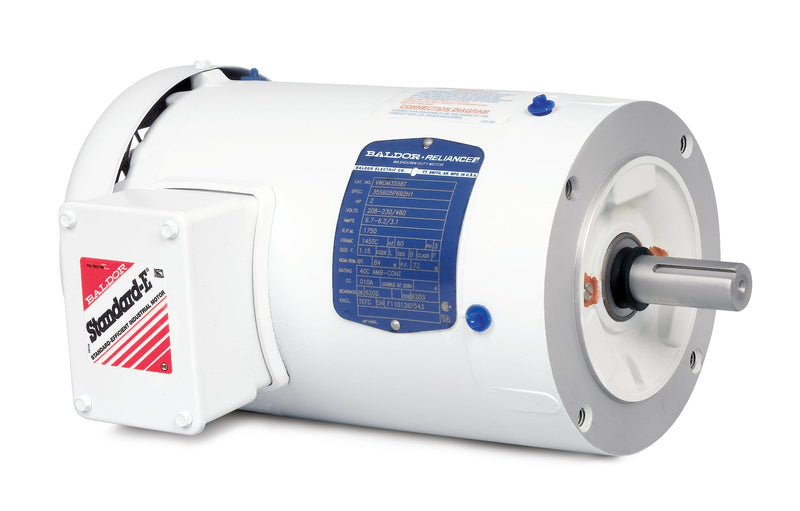

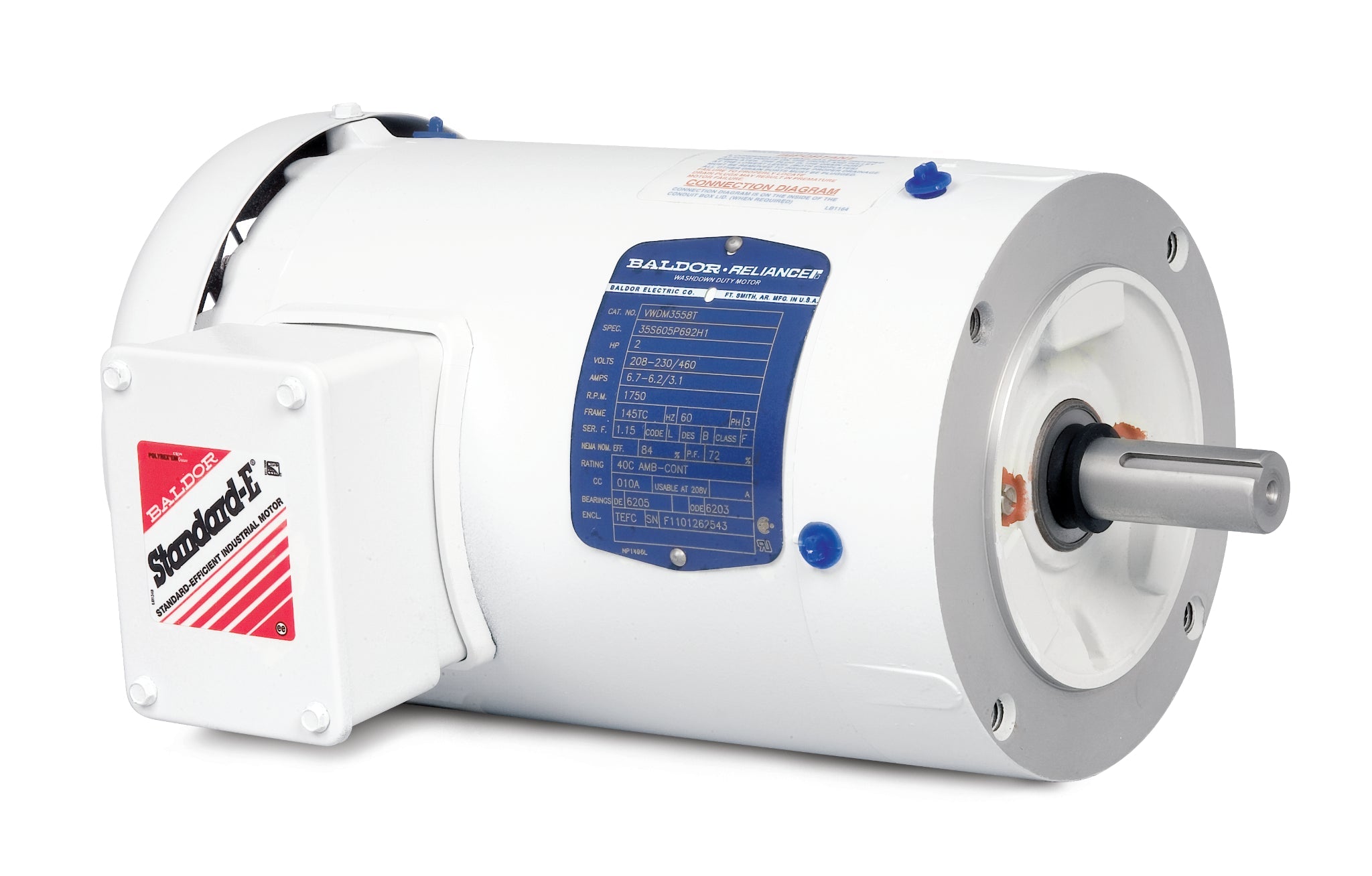

Baldor-Reliance White Washdown Motor - Model VFWDM3542

Upgrade your pumping system with the Baldor VFWDM3542, a high-performance white washdown motor designed for durability and efficiency. This .75 HP motor operates at 1765 RPM and is engineered for three-phase applications at 60Hz. With a 56C frame and TEFC (Totally Enclosed Fan Cooled) design, it ensures reliable operation in demanding environments.

Key Features:

  • Power: .75 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VFWDM3542

This motor is ideal for applications requiring a robust and reliable power source, particularly in washdown environments where moisture and contaminants are present. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you make the best choice for your application.

UPC 781568502099
Supplier Part Number VFWDM3542
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 31.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFWDM3542
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V, 2.420 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.22 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
