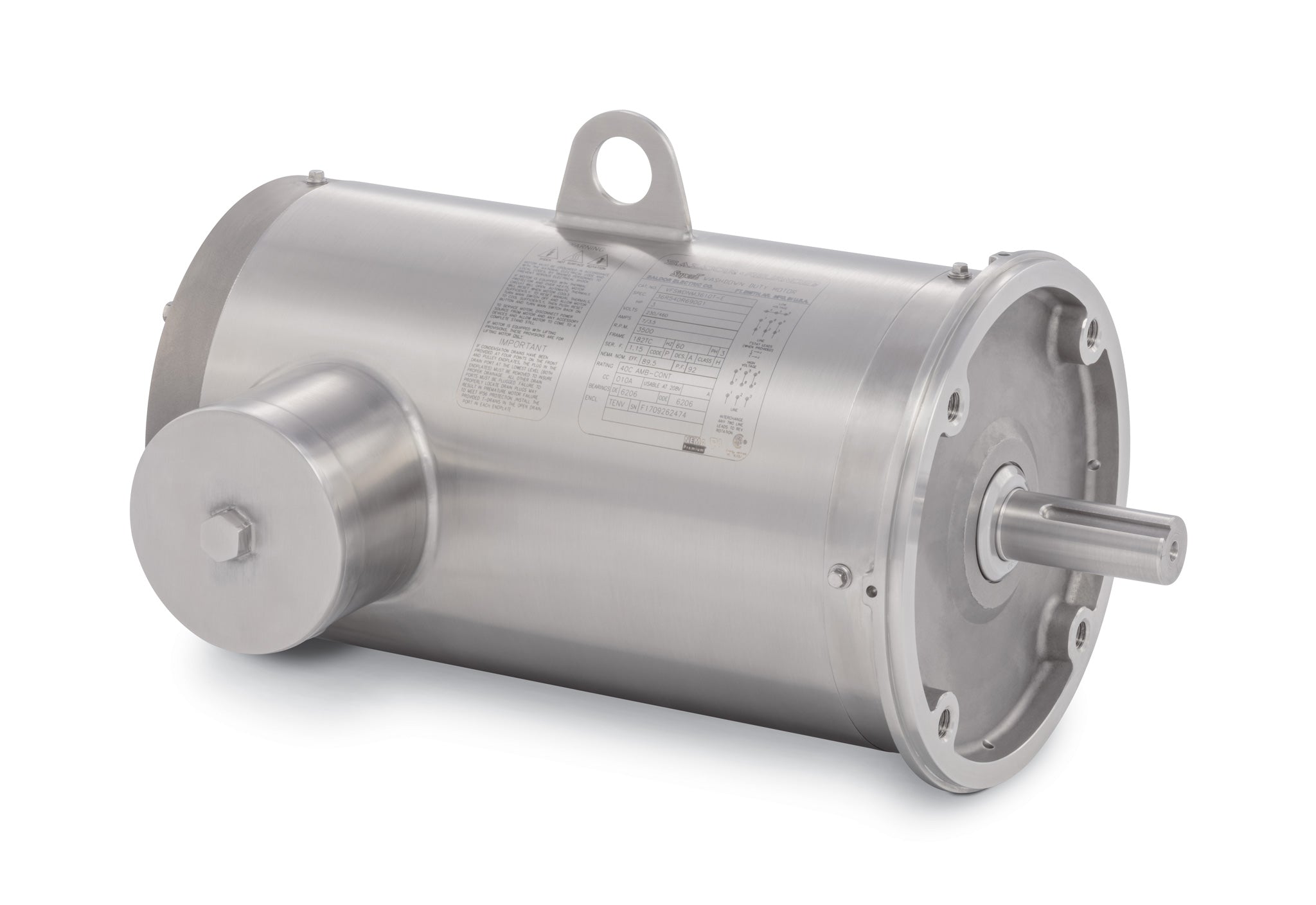

Baldor VFSWDNM3610T-E - 3 HP, 3500RPM, 3 Phase, 60HZ, 182TC, 3646M, Tenv, F1 60HZ Three Phase 3 HP 3646 M Cable Stainless Steel

Save $1,078.00
BaldorSKU: VFSWDNM3610T-E

Price:
Sale price$3,234.00 Regular price$4,312.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VFSWDNM3610T-E - Food Safe Stainless Steel Motor

Introducing the Baldor VFSWDNM3610T-E, a high-performance food safe stainless steel motor designed for demanding applications. With a robust 3 HP power output and a speed of 3500 RPM, this 3-phase motor operates efficiently at 60Hz, making it ideal for various industrial and food processing environments.

Specifications:

  • Power: 3 HP
  • Speed: 3500 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 182TC
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: VFSWDNM3610T-E

This motor is built to withstand the rigors of food processing, featuring a durable stainless steel construction that ensures longevity and reliability. The TENV design minimizes maintenance needs while providing excellent protection against contaminants.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VFSWDNM3610T-E to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568862995
Supplier Part Number VFSWDNM3610T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals NEMA_PREMIUM, UR, WEEE, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 96.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFSWDNM3610T-E
Current @ Voltage 3.500 A @ 460.0 V, 7.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.5 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code P
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3646M
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 17.05 IN
Phase 3
Power Factor 92
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
