Baldor VFSWDNM3558T-E - 2 HP, 1760RPM, 3 Phase, 60HZ, 145TC, 3546M, Tenv, F1 60HZ Three Phase 2 HP 3546 M Cable Stainless Steel

Save $870.00
BaldorSKU: VFSWDNM3558T-E

Price:
Sale price$2,610.00 Regular price$3,480.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

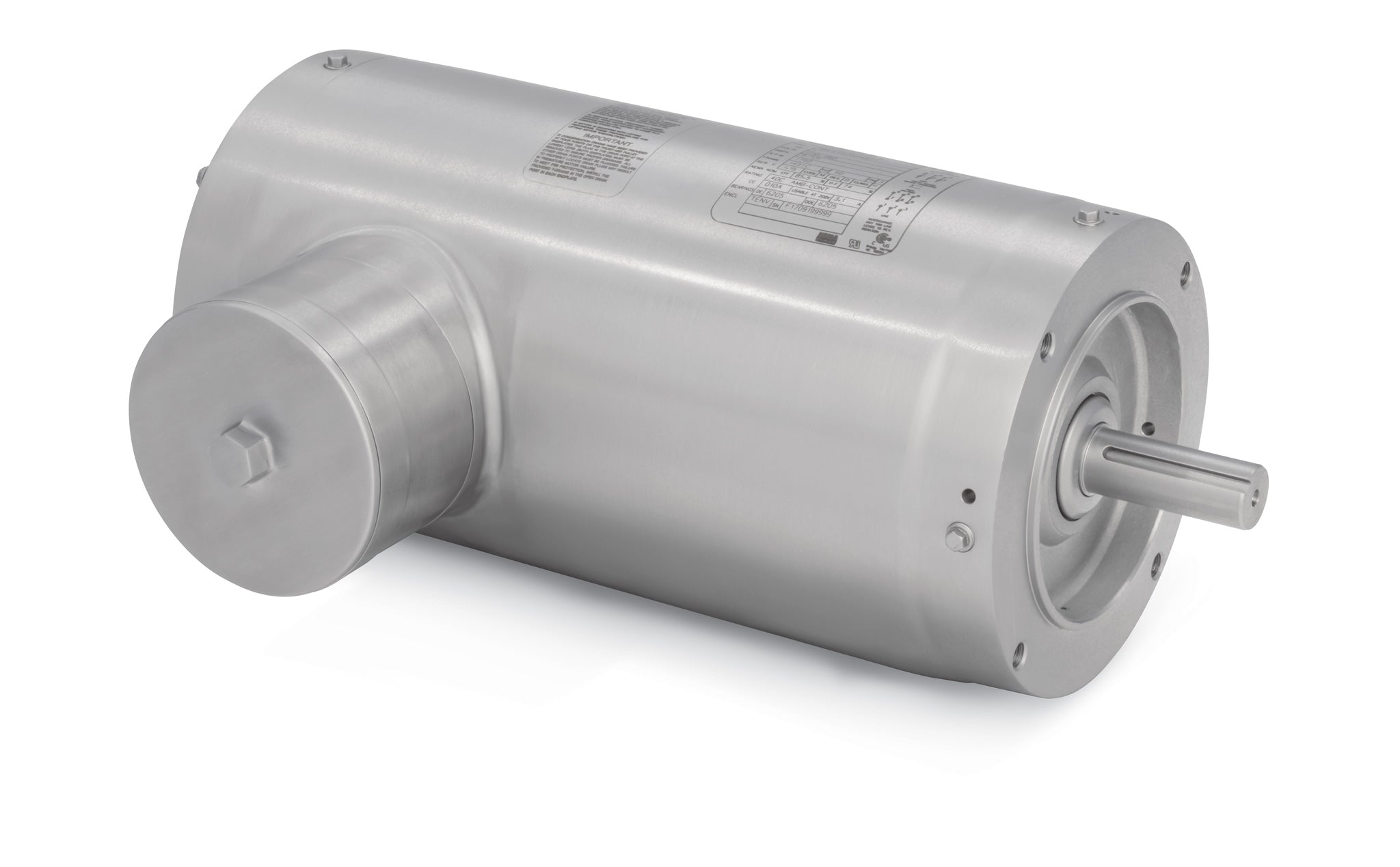

Baldor-Reliance Food Safe Stainless Steel Motor - VFSWDNM3558T-E

Upgrade your pumping system with the Baldor VFSWDNM3558T-E, a high-performance 2 HP food safe stainless steel motor designed for durability and efficiency. Operating at 1760 RPM, this 3-phase motor is perfect for a variety of applications in food processing and other industries requiring hygienic standards.

  • Power: 2 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: VFSWDNM3558T-E

This motor is built to withstand the rigors of food processing environments, ensuring reliability and compliance with food safety standards. Its stainless steel construction not only provides corrosion resistance but also makes it easy to clean, making it an ideal choice for applications where hygiene is paramount.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VFSWDNM3558T-E to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568862988
Supplier Part Number VFSWDNM3558T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals NEMA_PREMIUM, WEEE, NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 63.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFSWDNM3558T-E
Current @ Voltage 5.300 A @ 230.0 V, 5.600 A @ 208.0 V, 2.650 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.7 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3546M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 15.09 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
