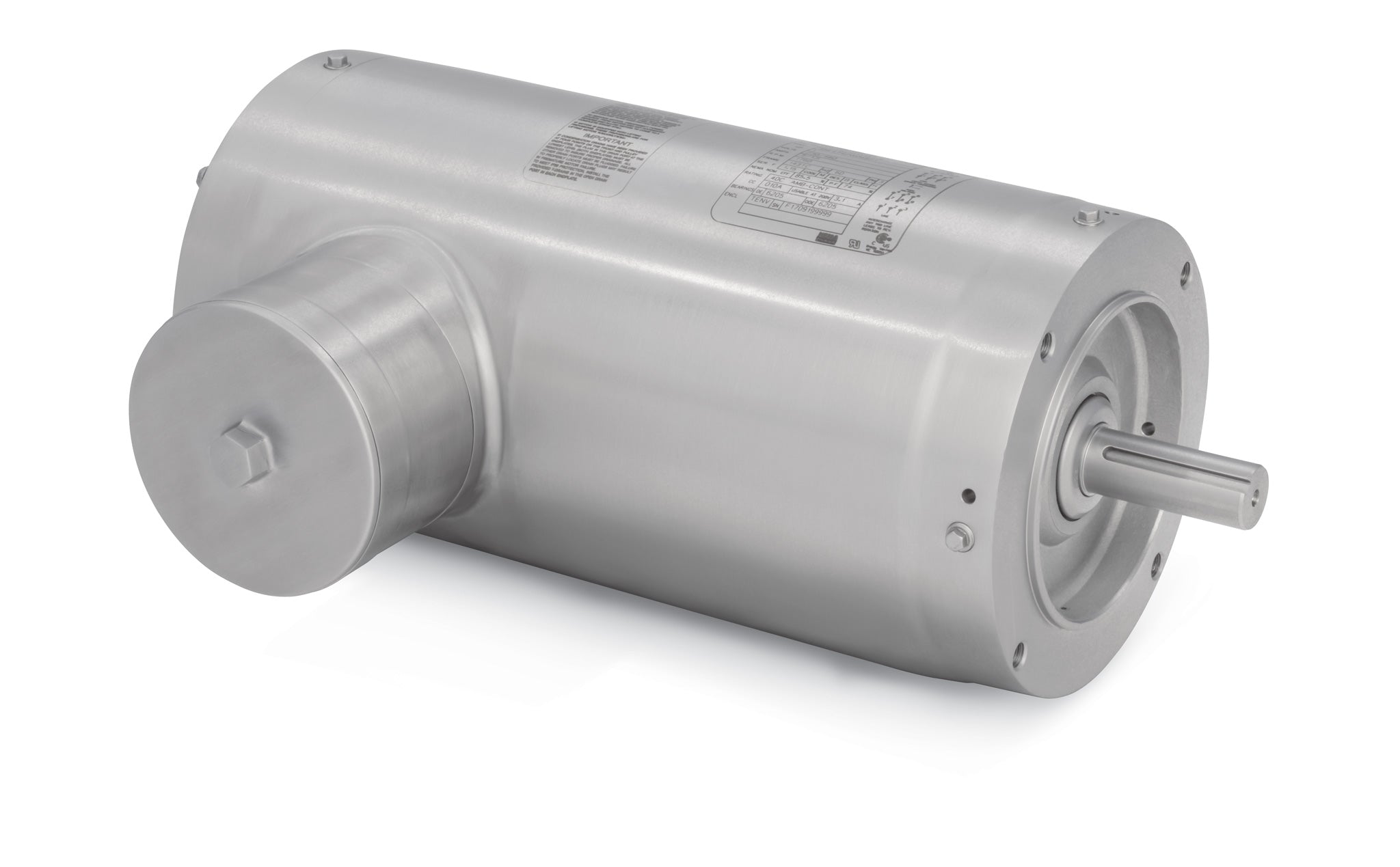

Baldor VFSWDNM3555T-E - 2 HP, 3480RPM, 3 Phase, 60HZ, 145TC, 3546M, Tenv, F1 60HZ Three Phase 2 HP 3546 M Cable Stainless Steel

Save $859.25
BaldorSKU: VFSWDNM3555T-E

Price:
Sale price$2,577.75 Regular price$3,437.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Cable
CableStainless Steel

The Baldor VFSWDNM3555T-E is a replacement cable (Stainless Steel) for Baldor pump systems. An electrical power cord for submersible pump motors, rated for continuous submerged operation.

Part Specifications
Part Number VFSWDNM3555T-E
Part Type Cable
Material Stainless Steel
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
UPC 781568862964
Supplier Part Number VFSWDNM3555T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals WEEE, NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 63.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFSWDNM3555T-E
Current @ Voltage 2.400 A @ 460.0 V, 4.800 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 88.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.4 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5400 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size @ AWG, 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3546M
Mounting Arrangement F1
Number of Poles 2
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 15.09 IN
Phase 3
Power Factor 89
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3480 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
