Baldor VFSWDM3559T-E - 3 HP, 3470RPM, 3 Phase, 60HZ, 145TC, 3546M, TEFC, F1 60HZ Three Phase 3 HP 3546 M Cable Stainless Steel

Save $1,047.75
BaldorSKU: VFSWDM3559T-E

Price:
Sale price$3,143.25 Regular price$4,191.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

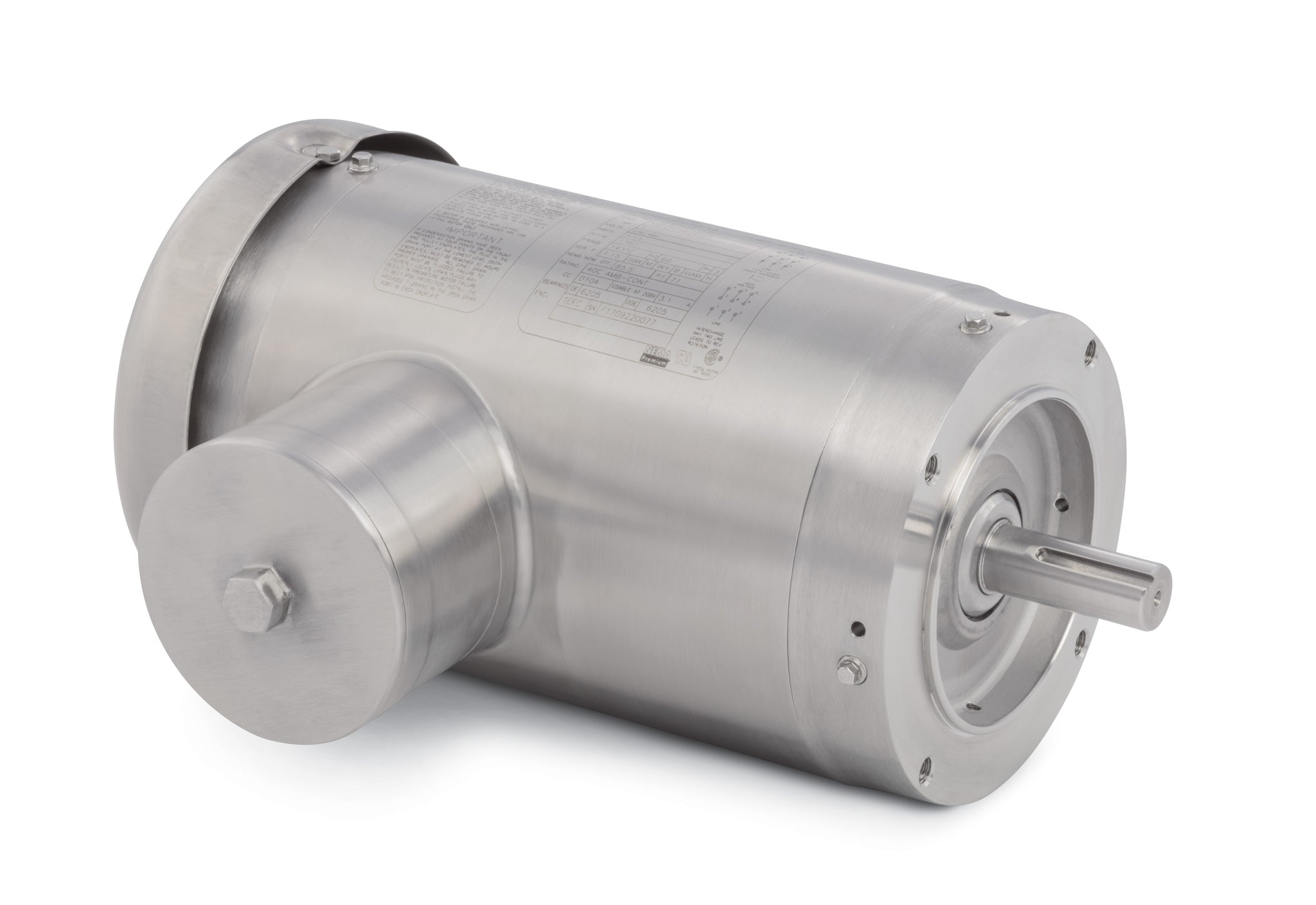

Baldor VFSWDM3559T-E - Food Safe Stainless Steel Motor

Upgrade your pumping system with the Baldor VFSWDM3559T-E, a high-performance food safe stainless steel motor designed for reliability and efficiency. This 3 HP motor operates at 3470 RPM and is built for three-phase applications at 60Hz, making it ideal for various industrial and food processing environments.

  • Power: 3 HP
  • Speed: 3470 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VFSWDM3559T-E

This motor is constructed with durable stainless steel, ensuring it meets the stringent hygiene standards required in food processing applications. Its TEFC design provides excellent protection against dust and moisture, enhancing its longevity and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VFSWDM3559T-E to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568862926
Supplier Part Number VFSWDM3559T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals CURUSEEV, NEMA_PREMIUM, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 63.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFSWDM3559T-E
Current @ Voltage 7.700 A @ 208.0 V, 7.400 A @ 230.0 V, 3.700 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.7 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code P
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5400 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size @ AWG, 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3546M
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.28 IN
Phase 3
Power Factor 91
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3470 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
