Baldor VFSWDM3546T-E - 1 HP, 1770RPM, 3 Phase, 60HZ, 143TC, 3522M, Tenv, F1 60HZ Three Phase 1 HP 3522 M Cable Stainless Steel

Save $712.25
BaldorSKU: VFSWDM3546T-E

Price:
Sale price$2,136.75 Regular price$2,849.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

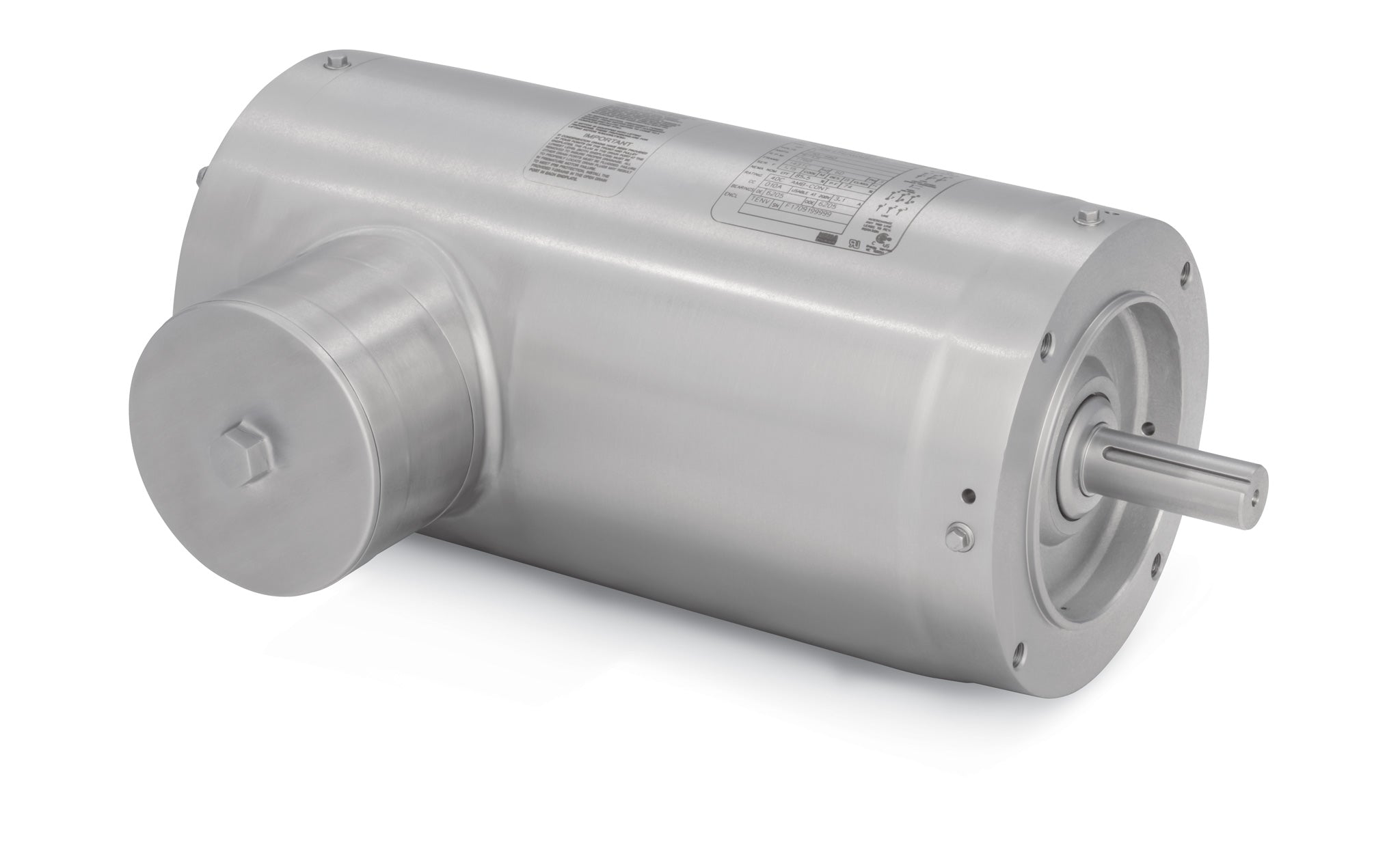

Baldor-Reliance Food Safe Stainless Steel Motor - VFSWDM3546T-E

Upgrade your pumping system with the Baldor VFSWDM3546T-E, a high-performance food safe stainless steel motor designed for durability and efficiency. This 1 HP motor operates at 1770 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and food processing environments.

Specifications:

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 143TC
  • Enclosure: Totally Enclosed Non-Ventilated (TENV)
  • Mounting: F1
  • Product Code: VFSWDM3546T-E

This motor is not only robust but also designed to meet the stringent hygiene standards required in food processing applications. Its stainless steel construction ensures resistance to corrosion and easy cleaning, making it a reliable choice for your operations.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VFSWDM3546T-E to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568862025
Supplier Part Number VFSWDM3546T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SD Non-Encapsulated
Agency Approvals CURUSEEV, NEMA_PREMIUM, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFSWDM3546T-E
Current @ Voltage 3.340 A @ 230.0 V, 3.300 A @ 208.0 V, 1.670 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.7 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.84 IN
Phase 3
Power Factor 66
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
