Baldor VEWDM3710T - 7.5 HP, 1770RPM, 3 Phase, 60HZ, 213TC, 3738M, TEFC 60HZ Three Phase 7.5 HP 3738 M Cable

Save $944.25
BaldorSKU: VEWDM3710T

Price:
Sale price$2,832.75 Regular price$3,777.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

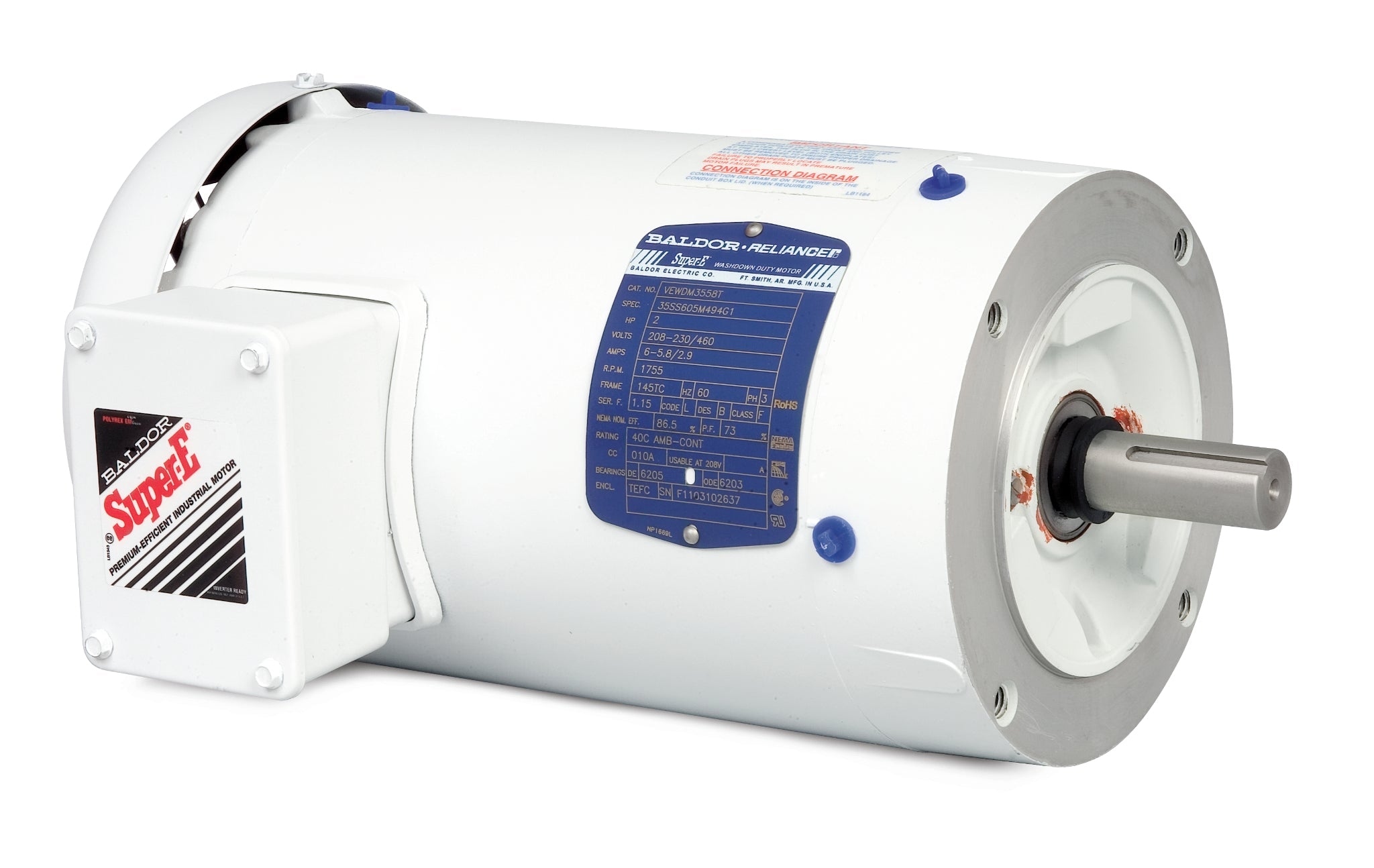

Baldor VEWDM3710T - 7.5 HP White Washdown Motor

The Baldor VEWDM3710T is a high-performance 7.5 HP White Washdown Motor designed for demanding applications. Operating at 1770 RPM, this robust 3-phase motor is engineered for efficiency and durability, making it ideal for environments where cleanliness and reliability are paramount.

Specifications:

  • Power: 7.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 213TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VEWDM3710T

This motor is part of the Baldor-Reliance White Washdown Motors series, known for their exceptional performance in wet and harsh conditions. The TEFC design ensures protection against moisture and contaminants, making it a reliable choice for various industrial applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEWDM3710T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568457658
Supplier Part Number VEWDM3710T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 121.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEWDM3710T
Current @ Voltage 20.000 A @ 208.0 V, 9.500 A @ 460.0 V, 19.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3738M
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 19.78 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
