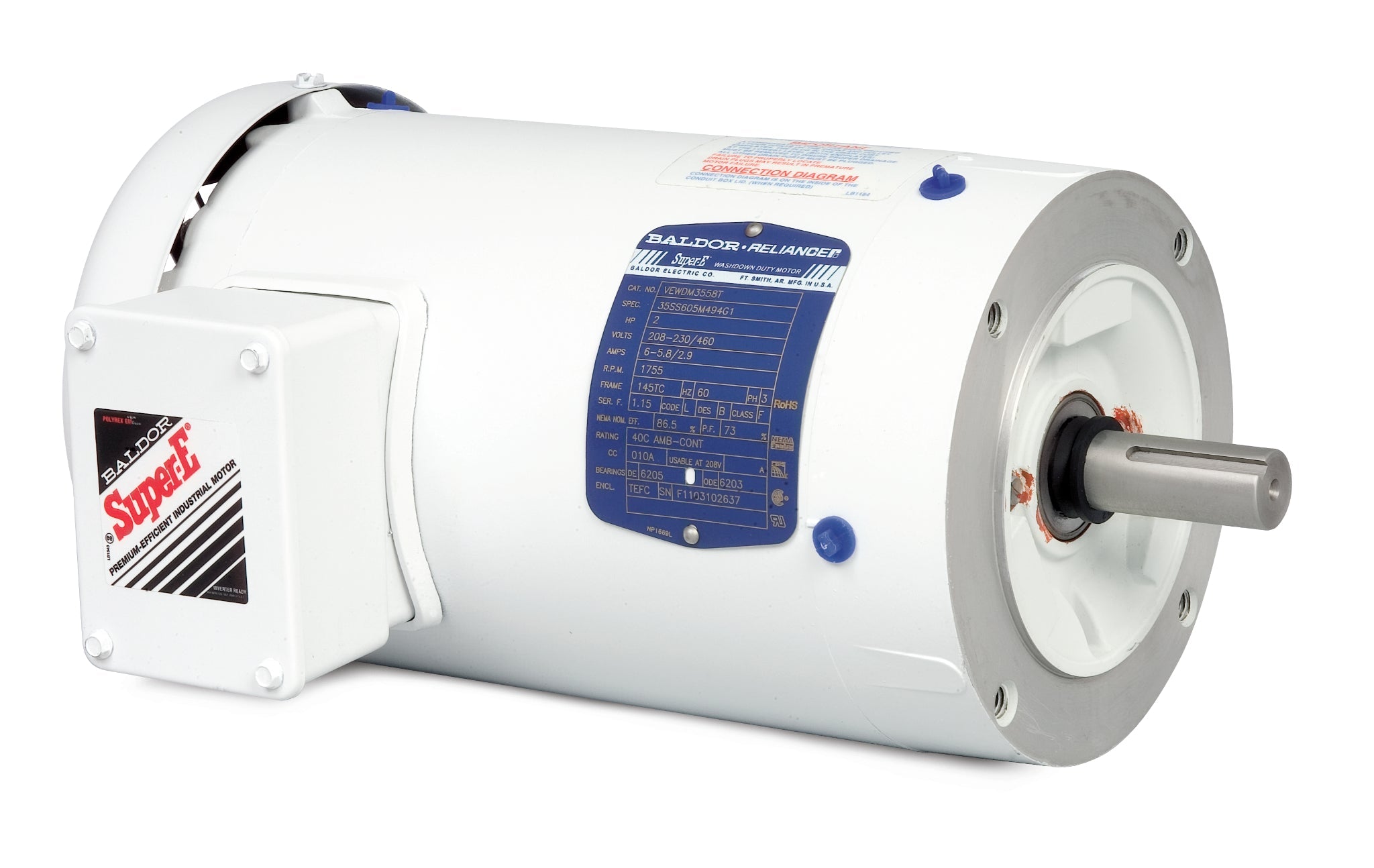

Baldor VEWDM3615T - 5 HP, 1755RPM, 3 Phase, 60HZ, 184TC, 3642M, TEFC, F1 60HZ Three Phase 5 HP 3642 M Cable

Save $706.00
BaldorSKU: VEWDM3615T

Price:
Sale price$2,118.00 Regular price$2,824.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VEWDM3615T - 5 HP White Washdown Motor

The Baldor VEWDM3615T is a high-performance 5 HP, 1755 RPM, 3-phase electric motor designed specifically for washdown applications. With a robust TEFC (Totally Enclosed Fan Cooled) construction, this motor is built to withstand harsh environments while delivering reliable performance. Operating at 60Hz and featuring a 184TC frame size, this motor is ideal for various industrial and commercial applications where cleanliness and durability are paramount.

Key Features:

  • Power: 5 HP
  • Speed: 1755 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184TC
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VEWDM3615T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEWDM3615T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568457641
Supplier Part Number VEWDM3615T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 89.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEWDM3615T
Current @ Voltage 14.000 A @ 208.0 V, 6.700 A @ 460.0 V, 13.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.7 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3642M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.05 IN
Phase 3
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1755 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
