Baldor VEWDM3542 - .75 HP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, Tenv, F1 60HZ Three Phase 75 HP 3514 M Cable 56°C

Save $393.25
BaldorSKU: VEWDM3542

Price:
Sale price$1,179.75 Regular price$1,573.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

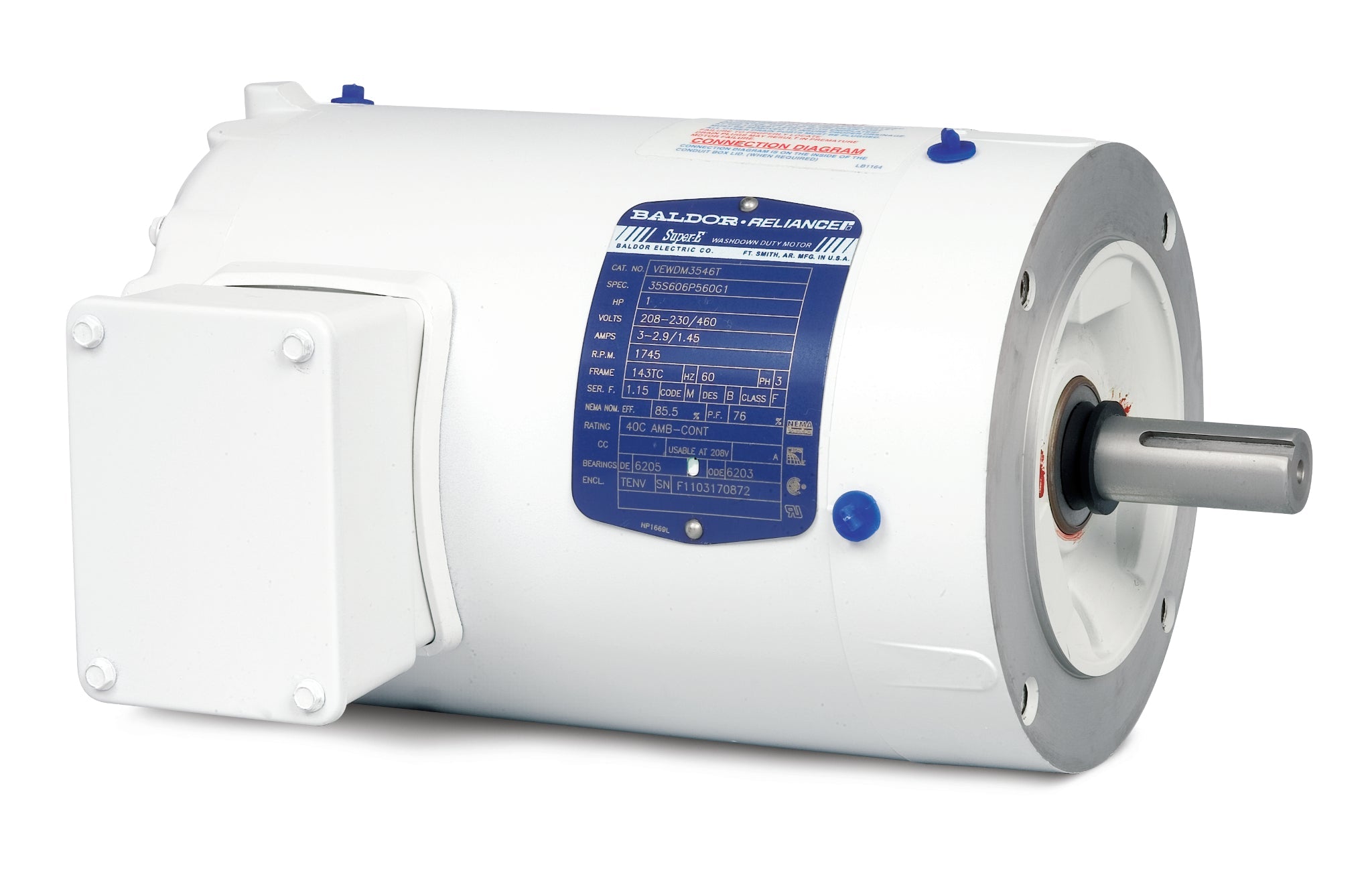

Baldor-Reliance White Washdown Motor - Model VEWDM3542

Introducing the Baldor-Reliance White Washdown Motor, a reliable and efficient solution for your pumping needs. This motor features a robust .75 HP power output and operates at 1765 RPM, making it ideal for various industrial applications. Designed for three-phase operation at 60Hz, this motor is built to withstand the rigors of washdown environments.

  • Power: .75 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 56C
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: VEWDM3542

This motor is perfect for applications requiring durability and resistance to moisture and contaminants. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VEWDM3542. If you encounter any difficulties finding the right item, our team is here to help!

UPC 781568672341
Supplier Part Number VEWDM3542
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 32.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEWDM3542
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V, 2.420 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.06 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
