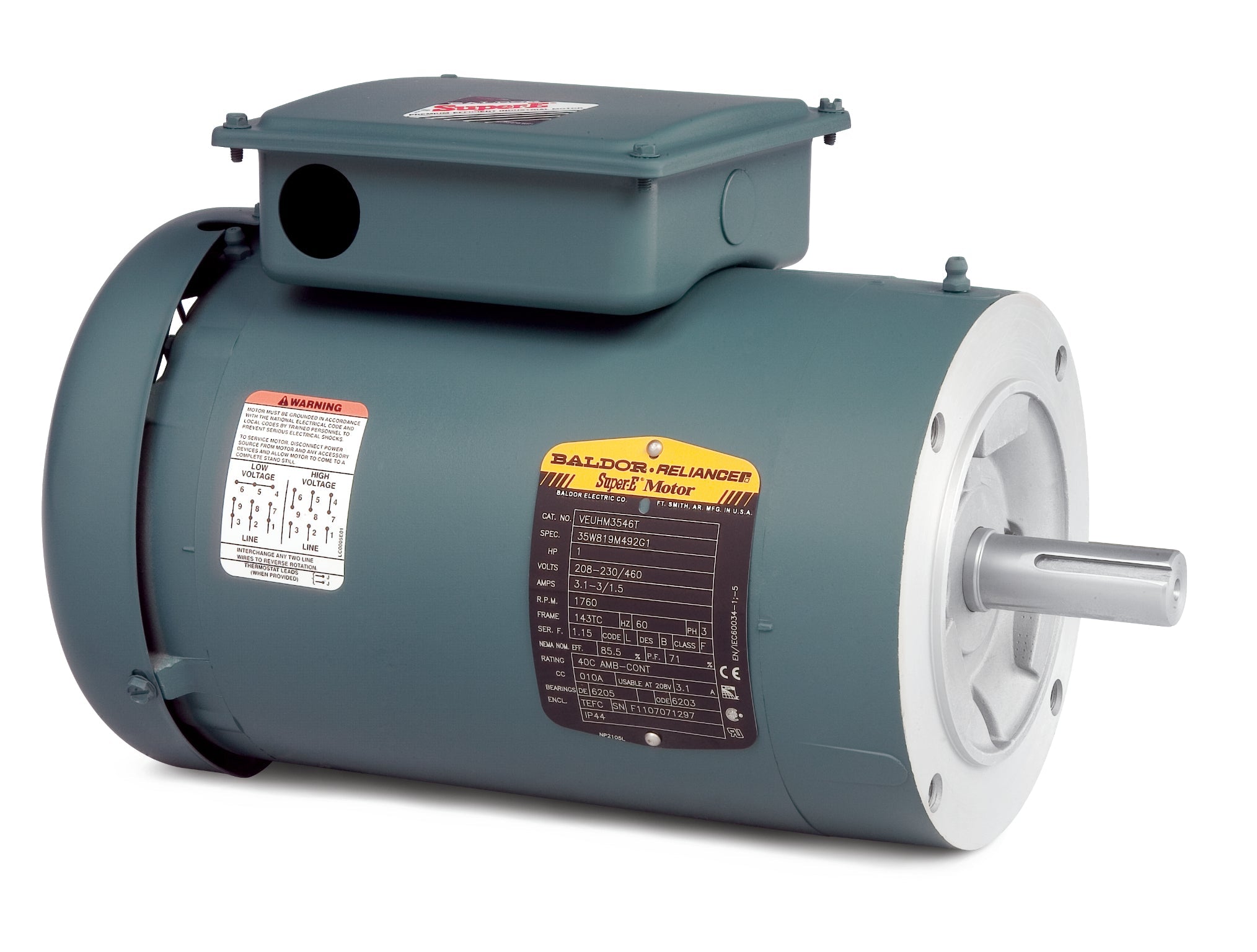

Baldor VEUHM3558T - 2/1.5KWHP, 1760 1/MINRPM, 3 Phase, 60HZ, 145TC, 3 60HZ Three Phase

Save $322.75
BaldorSKU: VEUHM3558T

Price:
Sale price$968.25 Regular price$1,291.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance General Unit Handling Motor - Model VEUHM3558T

The Baldor VEUHM3558T is a high-performance General Unit Handling Motor designed for reliable operation in various industrial applications. With a power rating of 2/1.5 KWHP and a speed of 1760 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for your pumping needs.

Specifications:

  • Power: 2/1.5 KWHP
  • Speed: 1760 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 145TC
  • Product Code: VEUHM3558T

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEUHM3558T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568503737
Supplier Part Number VEUHM3558T
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CE, CURUSEEV, NEMA PREMIUM, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 48.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEUHM3558T
Current @ Voltage 5.800 A @ 208.0 V, 5.600 A @ 230.0 V, 2.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F3
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
