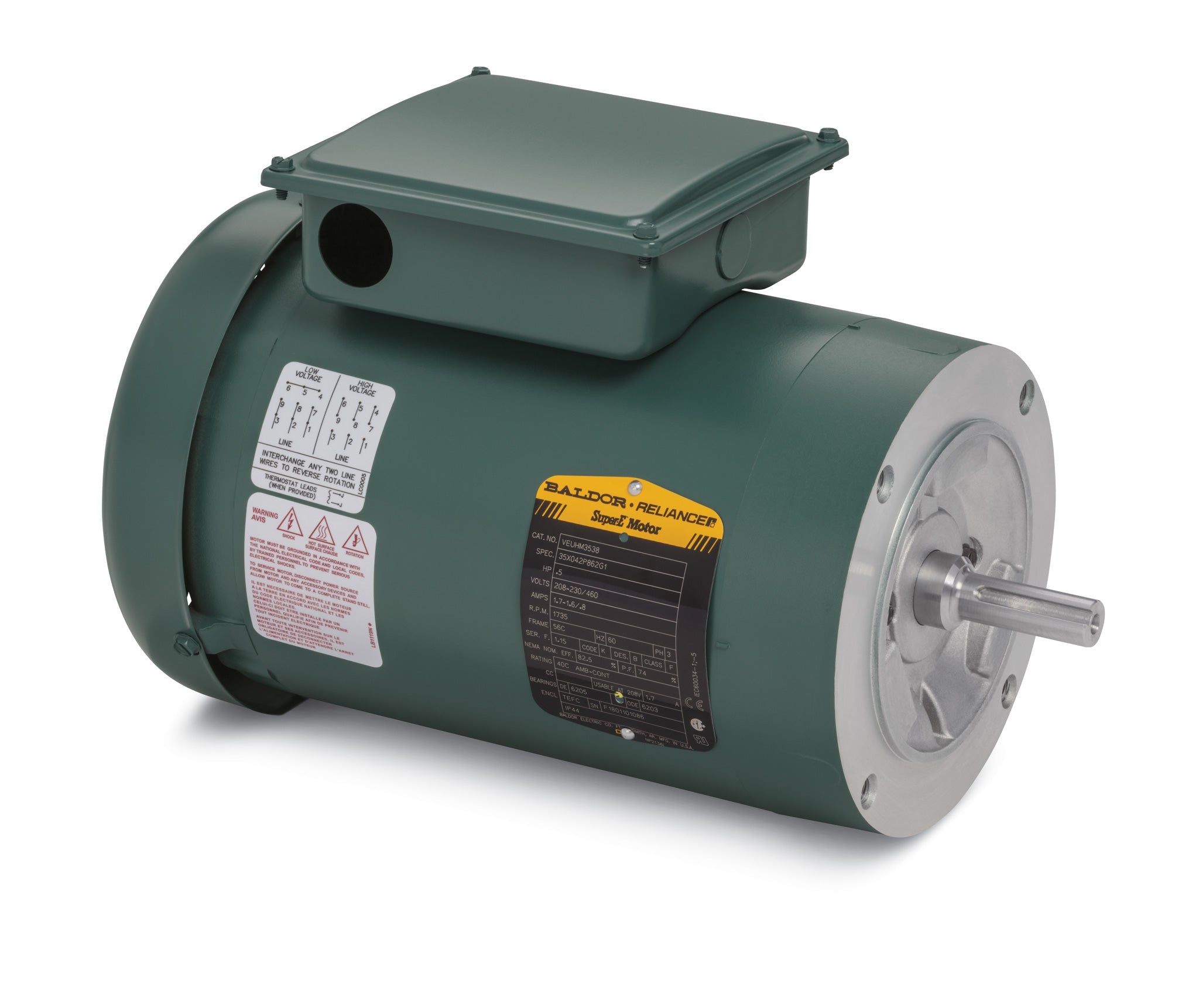

Baldor VEUHM3542 - .75/.56KWHP, 1765 1/MIN IP44 IC411 16KGRP IP44 Rating

Save $265.50
BaldorSKU: VEUHM3542

Price:
Sale price$796.50 Regular price$1,062.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance General Unit Handling Motors - Model VEUHM3542

Discover the reliability and performance of the Baldor VEUHM3542 General Unit Handling Motor, designed for a variety of applications. This motor features a power rating of .75/.56 KWHP and operates at a speed of 1765 RPM. With an IP44 rating, it is well-suited for environments where protection against dust and water splashes is essential.

The Baldor VEUHM3542 is classified under AC Motors and is part of the Baldor-Reliance Motors & Drives series, making it an excellent choice for those seeking durable and efficient motor solutions. Its IC411 cooling method ensures optimal performance, while the 16KGRP designation indicates its robust construction.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEUHM3542 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568502884
Supplier Part Number VEUHM3542
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CE, CSA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEUHM3542
Current @ Voltage 2.420 A @ 230.0 V, 2.420 A @ 208.0 V, 1.210 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.23 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
