Baldor VESWDM3558T - 2 HP, 1765RPM, 3 Phase, 60HZ, 145TC, 3530M, TEFC, N 60HZ Three Phase 2 HP 3530 M Cable

Save $560.25
BaldorSKU: VESWDM3558T

Price:
Sale price$1,680.75 Regular price$2,241.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

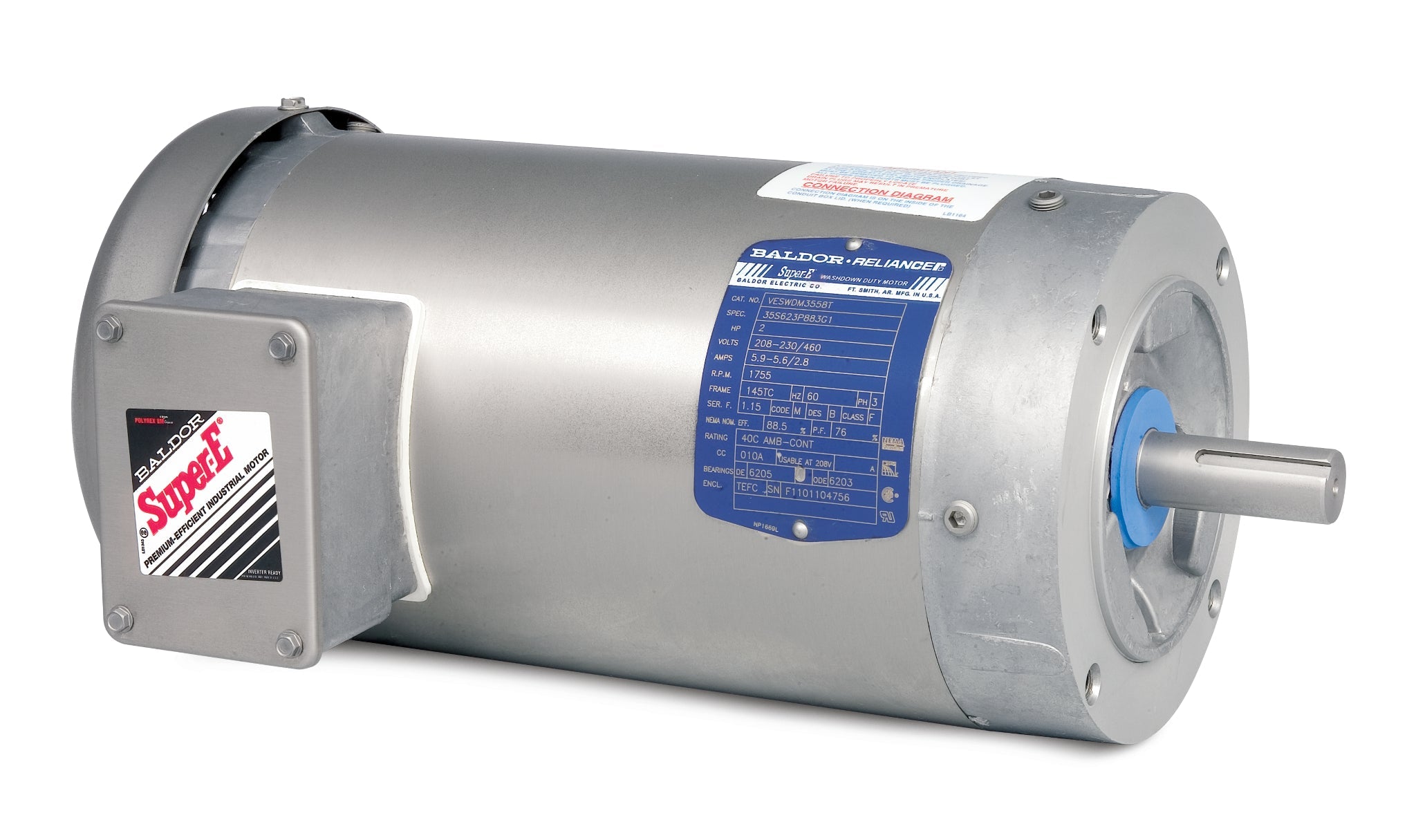

Baldor VESWDM3558T - 2 HP Paint Free Motor

Upgrade your pumping system with the Baldor VESWDM3558T, a high-performance 2 HP, 1765 RPM, 3-phase motor designed for efficiency and durability. This TEFC (Totally Enclosed Fan Cooled) motor is perfect for a variety of applications, ensuring reliable operation in demanding environments.

Specifications:

  • Power: 2 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure: TEFC
  • Product Code: VESWDM3558T

This Baldor-Reliance Paint Free Motor is engineered for optimal performance, making it an ideal choice for various pump applications. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VESWDM3558T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568527078
Supplier Part Number VESWDM3558T
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 55.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VESWDM3558T
Current @ Voltage 2.800 A @ 460.0 V, 5.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3536M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 14.17 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
