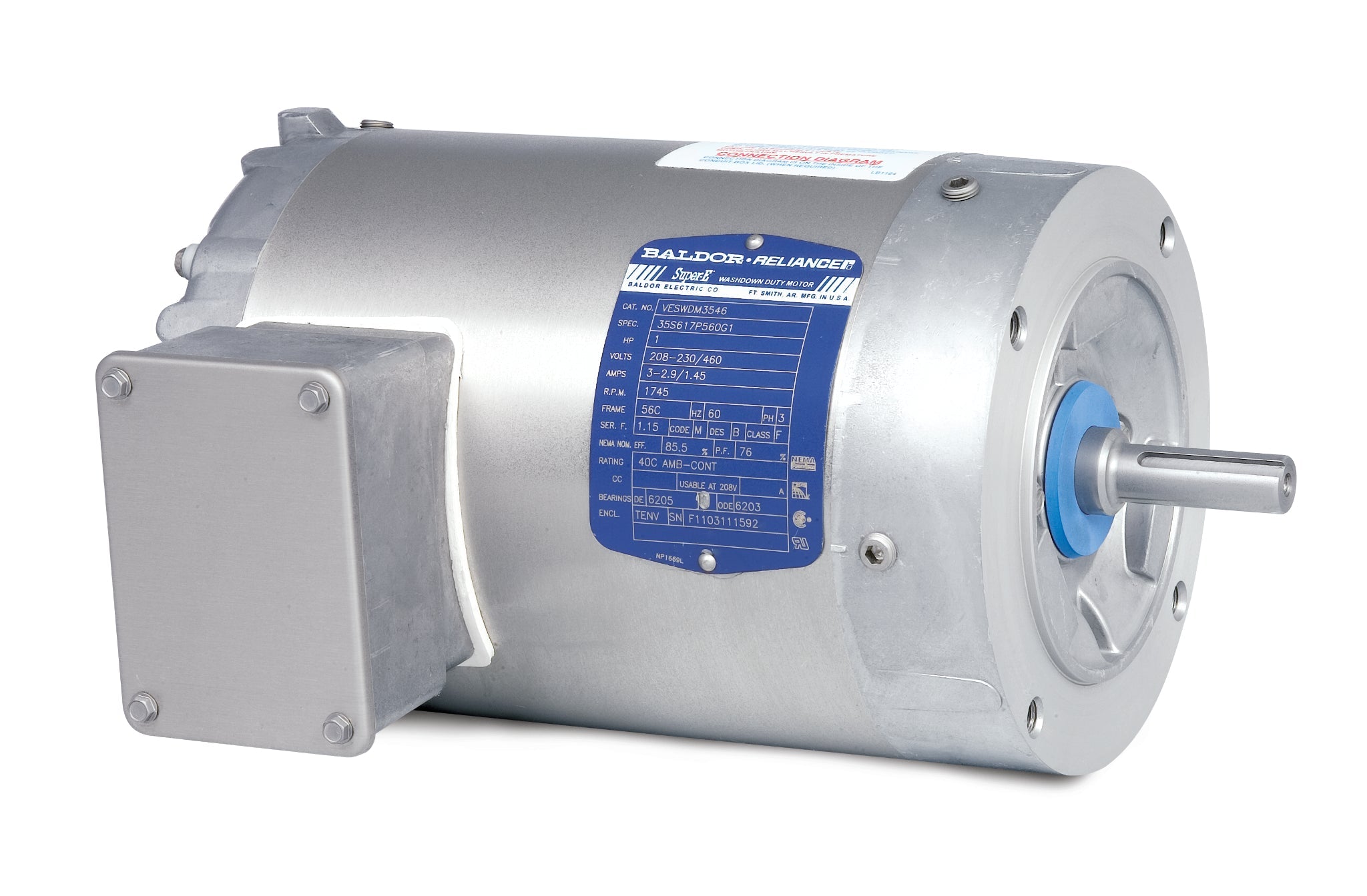

Baldor VESWDM3546T - 1 HP, 1770RPM, 3 Phase, 60HZ, 143TC, 3522M, Tenv, F1 60HZ Three Phase 1 HP 3522 M Cable

Save $452.50
BaldorSKU: VESWDM3546T

Price:
Sale price$1,357.50 Regular price$1,810.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VESWDM3546T - 1 HP Paint Free Motor

Upgrade your pumping system with the Baldor VESWDM3546T, a high-performance 1 HP, 1770 RPM, 3-phase motor designed for efficiency and reliability. This motor operates at 60Hz and features a 143TC frame size, making it an ideal choice for various industrial applications.

Constructed with a Totally Enclosed Non-Ventilated (TENV) design, the Baldor VESWDM3546T ensures durability and protection against environmental factors, making it perfect for demanding conditions. With its paint-free finish, this motor is not only functional but also aesthetically pleasing, fitting seamlessly into your existing setup.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VESWDM3546T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Explore our selection of Baldor-Reliance Motors & Drives, and experience the quality and performance that comes with trusted brands. Order your Baldor VESWDM3546T today and enhance your operational efficiency!

UPC 781568503454
Supplier Part Number VESWDM3546T
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 43.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VESWDM3546T
Current @ Voltage 3.300 A @ 208.0 V, 3.340 A @ 230.0 V, 1.670 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.7 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.12 IN
Phase 3
Power Factor 66
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
