Baldor VEM3774T - 10 HP, 1765RPM, 3 Phase, 60HZ, 215TC, 0748M, TEFC, F 60HZ Three Phase Three Phase 10 HP 0748 M Cable

Save $775.25
BaldorSKU: VEM3774T

Price:
Sale price$2,325.75 Regular price$3,101.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

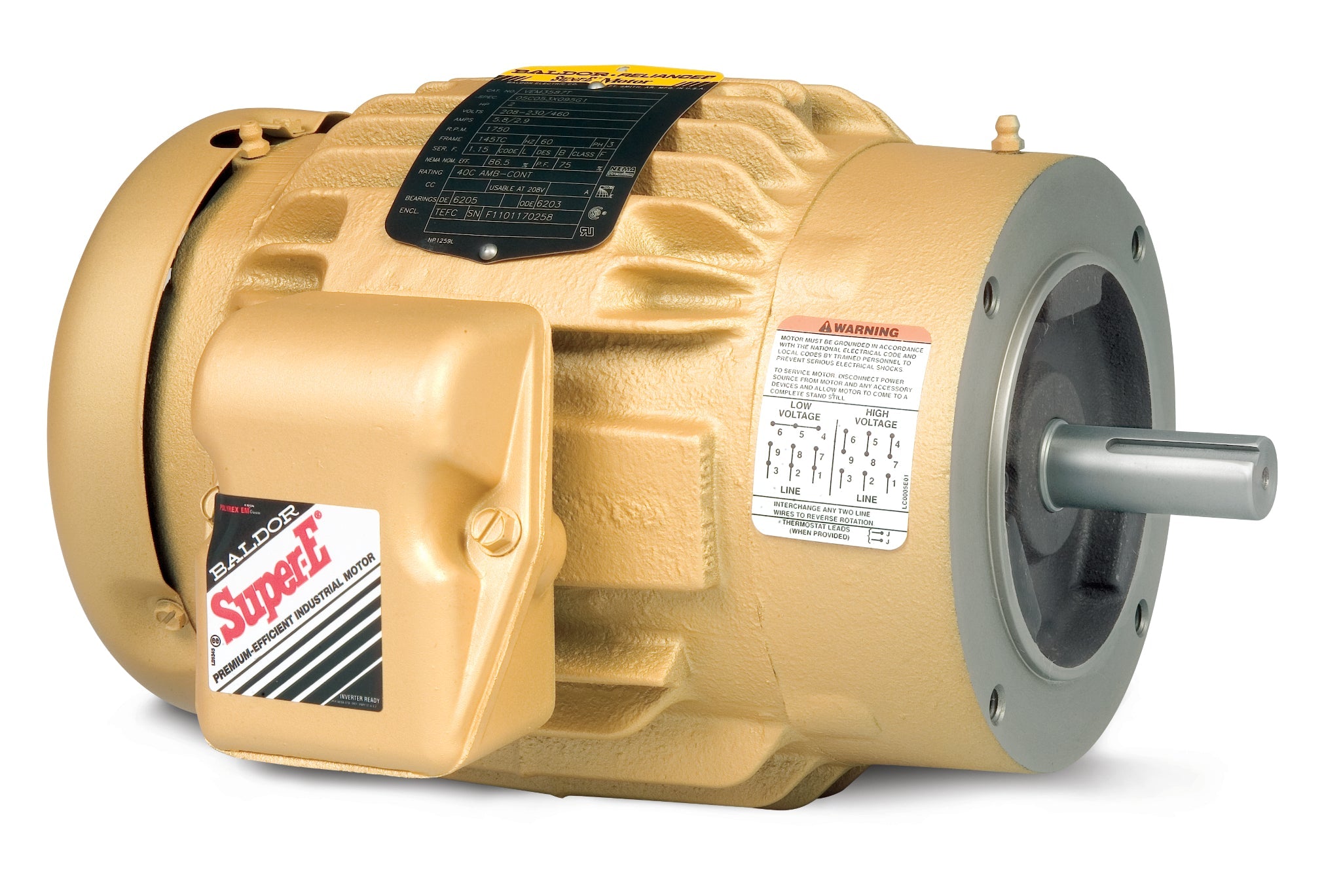

Baldor-Reliance Three Phase Enclosed Motor - Model VEM3774T

Upgrade your industrial applications with the Baldor VEM3774T, a robust 10 HP, 1765 RPM three-phase motor designed for efficiency and reliability. This motor operates at 60Hz and features a 215TC frame size, making it ideal for various heavy-duty tasks.

Key Features:

  • Power: 10 HP
  • Speed: 1765 RPM
  • Phase: Three Phase
  • Frequency: 60Hz
  • Frame Size: 215TC
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: VEM3774T

This motor is perfect for applications requiring high performance and durability. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568154199
Supplier Part Number VEM3774T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 197.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEM3774T
Current @ Voltage 24.600 A @ 230.0 V, 27.000 A @ 208.0 V, 12.300 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.3 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0748M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 19.20 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
