Baldor VEM3665T - 5 HP, 1755RPM, 3 Phase, 60HZ, 184TC, 0642M, TEFC, F1 60HZ Three Phase Three Phase 5 HP 0642 M Cable

Save $515.50
BaldorSKU: VEM3665T

Price:
Sale price$1,546.50 Regular price$2,062.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

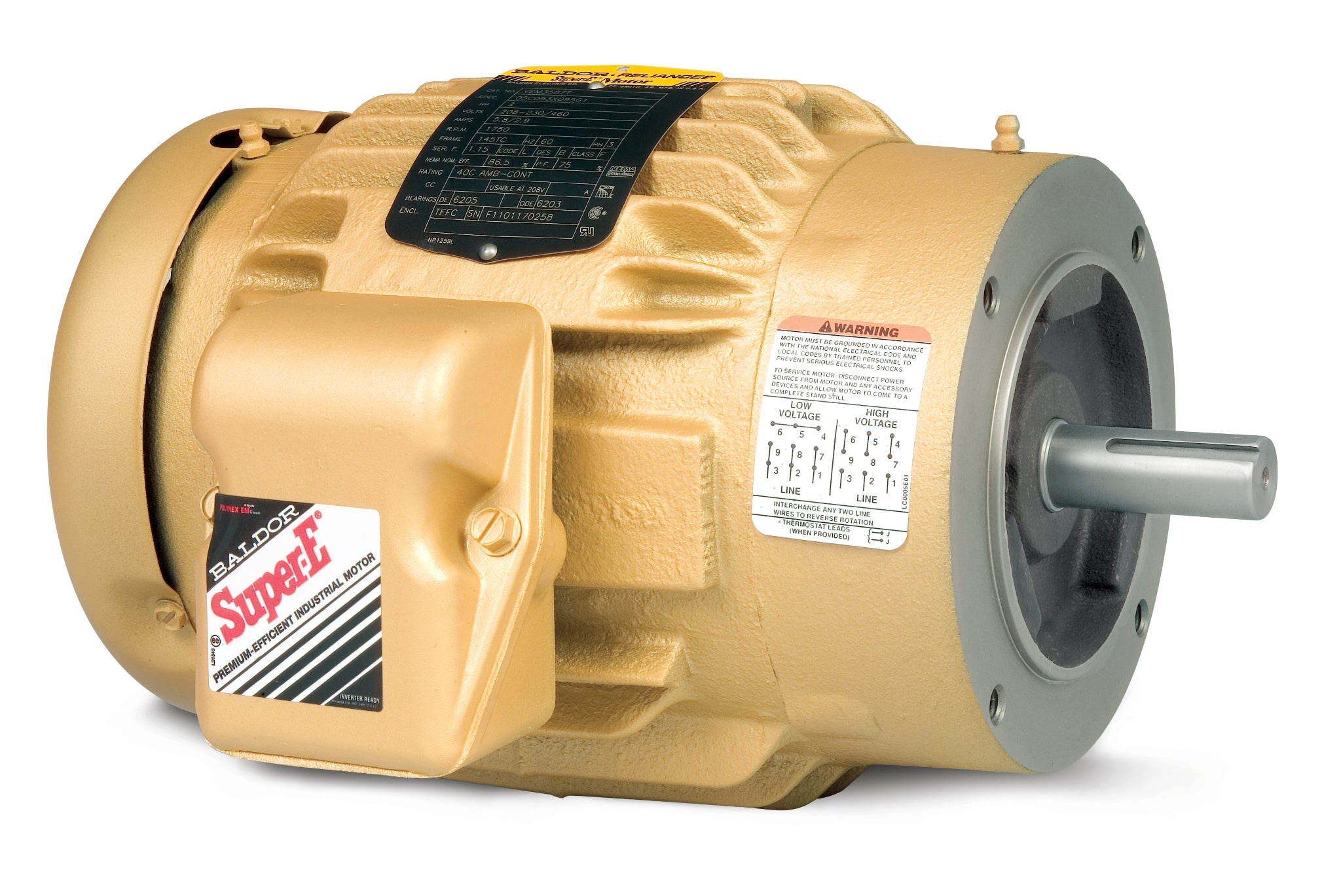

Baldor VEM3665T - 5 HP Three Phase Enclosed Motor

Discover the power and reliability of the Baldor VEM3665T, a high-performance 5 HP motor designed for three-phase applications. Operating at 1755 RPM and 60HZ, this motor is ideal for various industrial and commercial uses. With a 184TC frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and efficient operation in demanding environments.

Key Features:

  • Power: 5 HP
  • Speed: 1755 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 184TC
  • Enclosure: TEFC
  • Product Code: VEM3665T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEM3665T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568154151
Supplier Part Number VEM3665T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 109.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEM3665T
Current @ Voltage 14.000 A @ 208.0 V, 6.600 A @ 460.0 V, 13.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification 841
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0642M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 15.98 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
