Baldor VEM3613T - 5 HP, 3470RPM, 3 Phase, 60HZ, 184TC, 3630M, TEFC, F1 60HZ Three Phase Three Phase 5 HP 3630 M Cable

Save $432.25
BaldorSKU: VEM3613T

Price:
Sale price$1,296.75 Regular price$1,729.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

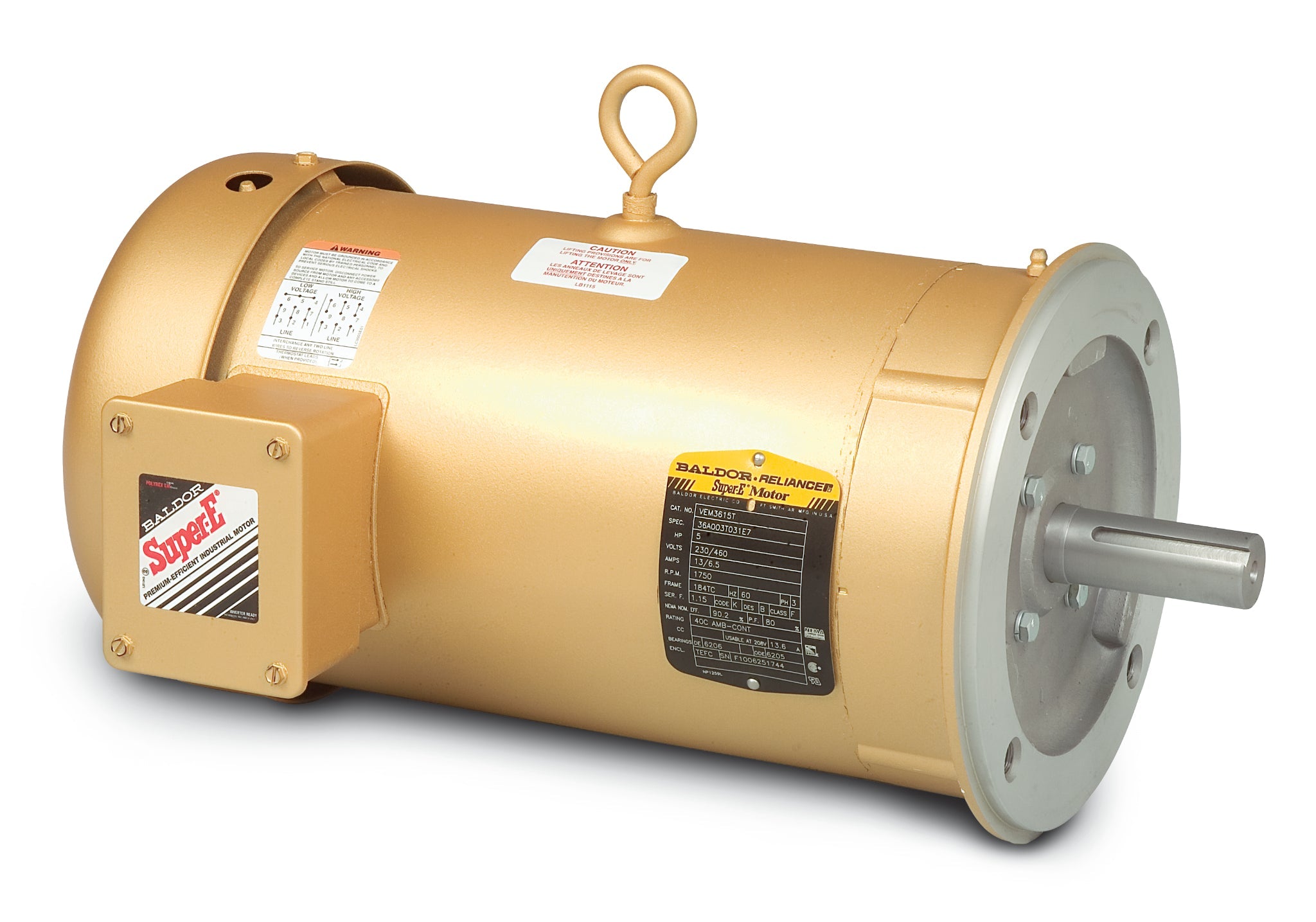

Baldor VEM3613T - 5 HP Three Phase Enclosed Motor

The Baldor VEM3613T is a high-performance 5 HP motor designed for three-phase applications. Operating at 3470 RPM and 60HZ, this motor is built to deliver reliable power and efficiency. With a 184TC frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against harsh environments.

Key Features:

  • Power: 5 HP
  • Speed: 3470 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 184TC
  • Enclosure Type: TEFC
  • Product Code: VEM3613T

Ideal for various industrial applications, the Baldor VEM3613T motor is a reliable choice for those seeking efficiency and performance. At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568422830
Supplier Part Number VEM3613T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 75.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEM3613T
Current @ Voltage 11.600 A @ 230.0 V, 12.800 A @ 208.0 V, 5.800 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 88.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.8 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3630M
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 16.54 IN
Phase 3
Power Factor 91
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3470 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
