Baldor VEM3587T-5 - 2 HP, 1765RPM, 3 Phase, 60HZ, 145TC, 0528M, TEFC, F1 60HZ Three Phase Three Phase 2 HP 0528 M Cable

Save $435.50
BaldorSKU: VEM3587T-5

Price:
Sale price$1,306.50 Regular price$1,742.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

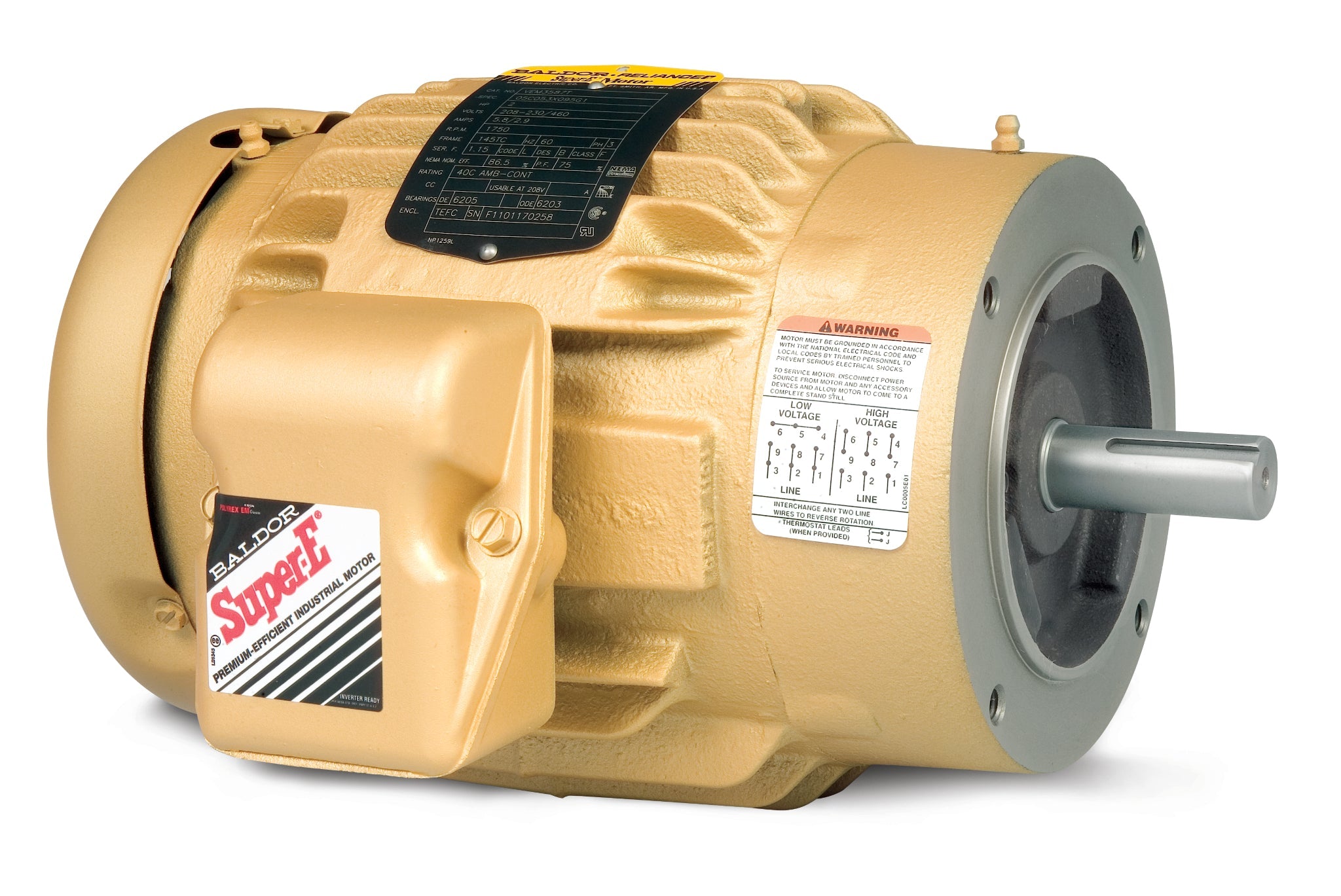

Baldor VEM3587T-5 Three Phase Enclosed Motor

Upgrade your pumping system with the Baldor VEM3587T-5, a high-performance 2 HP motor designed for efficiency and reliability. Operating at 1765 RPM, this three-phase motor is perfect for a variety of industrial applications. With a frequency of 60Hz and a 145TC frame size, it ensures optimal performance in demanding environments.

Key Features:

  • Power: 2 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 145TC
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: VEM3587T-5

This Baldor-Reliance motor is engineered for durability and efficiency, making it an ideal choice for your pump systems. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568154120
Supplier Part Number VEM3587T-5
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 60.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEM3587T-5
Current @ Voltage 2.150 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0528M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.03 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
