Description

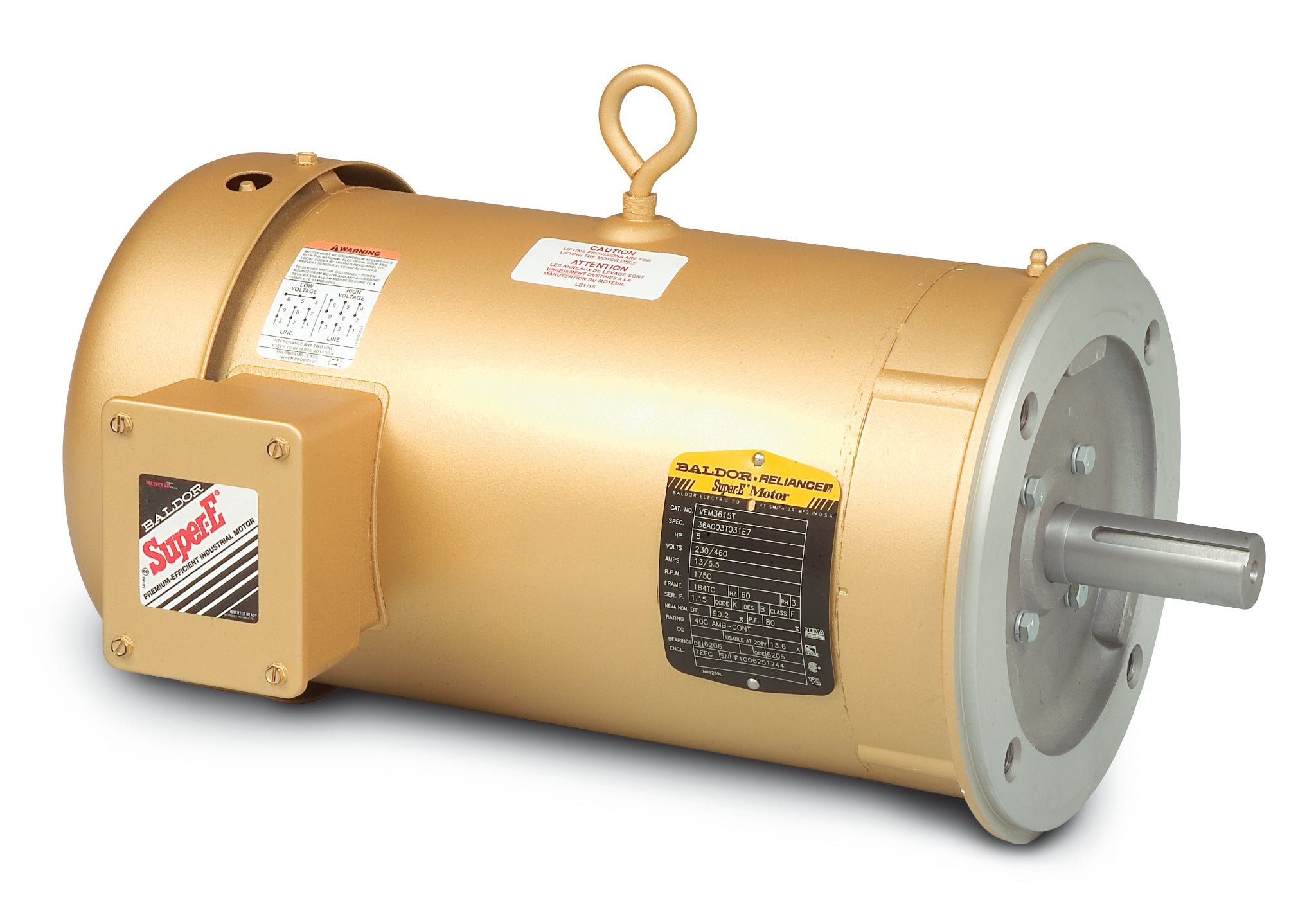

Baldor VEM3558T-5 - 2 HP Three Phase Enclosed Motor

The Baldor VEM3558T-5 is a high-performance 2 HP, 1764 RPM three-phase enclosed motor designed for reliability and efficiency in various industrial applications. Operating at 60Hz, this motor features a 145TC frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring optimal protection against dust and moisture.

Key Specifications:

  • Power: 2 HP
  • Speed: 1764 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 145TC
  • Enclosure Type: TEFC
  • Product Code: VEM3558T-5

This motor is ideal for applications requiring robust performance and durability. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VEM3558T-5. If you encounter any difficulties in finding the right item, our team is here to help!

UPC 781568388327
Supplier Part Number VEM3558T-5
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 46.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEM3558T-5
Current @ Voltage 2.150 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
