Baldor VEM3546T - 1 HP, 1770RPM, 3 Phase, 60HZ, 143TC, 3520M, TEFC, F1 60HZ Three Phase Three Phase 1 HP 3520 M Cable

Save $283.75
BaldorSKU: VEM3546T

Price:
Sale price$851.25 Regular price$1,135.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

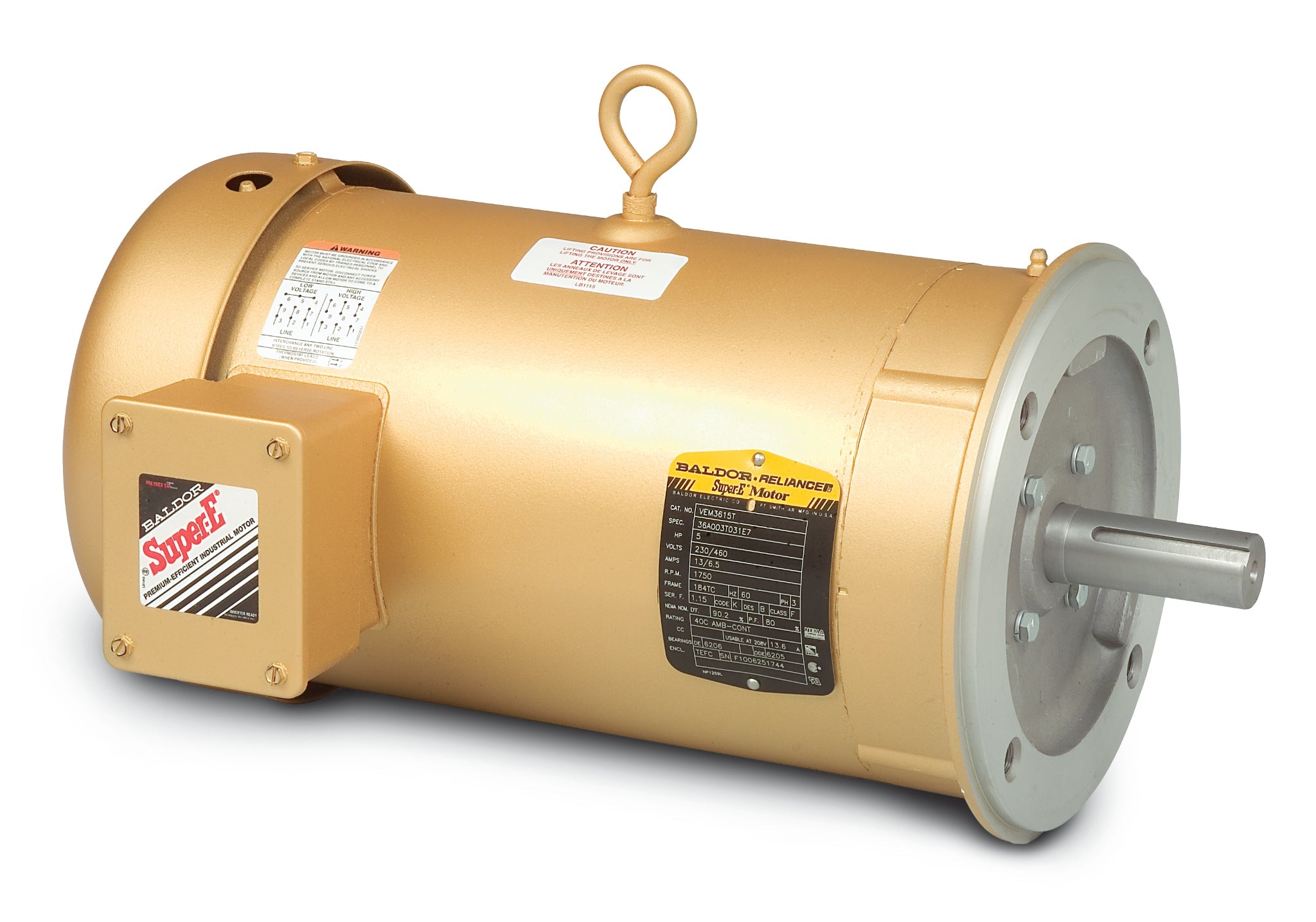

Baldor VEM3546T - 1 HP Three Phase Enclosed Motor

Discover the reliability and performance of the Baldor VEM3546T, a premium 1 HP, 1770 RPM three-phase motor designed for various industrial applications. This motor operates at 60Hz and features a 143TC frame size, making it an ideal choice for those seeking efficiency and durability.

Key specifications include:

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 143TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VEM3546T

This Baldor-Reliance motor is engineered for optimal performance in demanding environments, ensuring longevity and minimal maintenance. Whether you are replacing an existing motor or upgrading your system, the VEM3546T is a trusted choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the VEM3546T. Our team is here to help you find the perfect solution for your needs.

UPC 781568414323
Supplier Part Number VEM3546T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 36.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEM3546T
Current @ Voltage 3.200 A @ 208.0 V, 3.200 A @ 230.0 V, 1.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Steel
Frequency 60.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3520M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.29 IN
Phase 3
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
