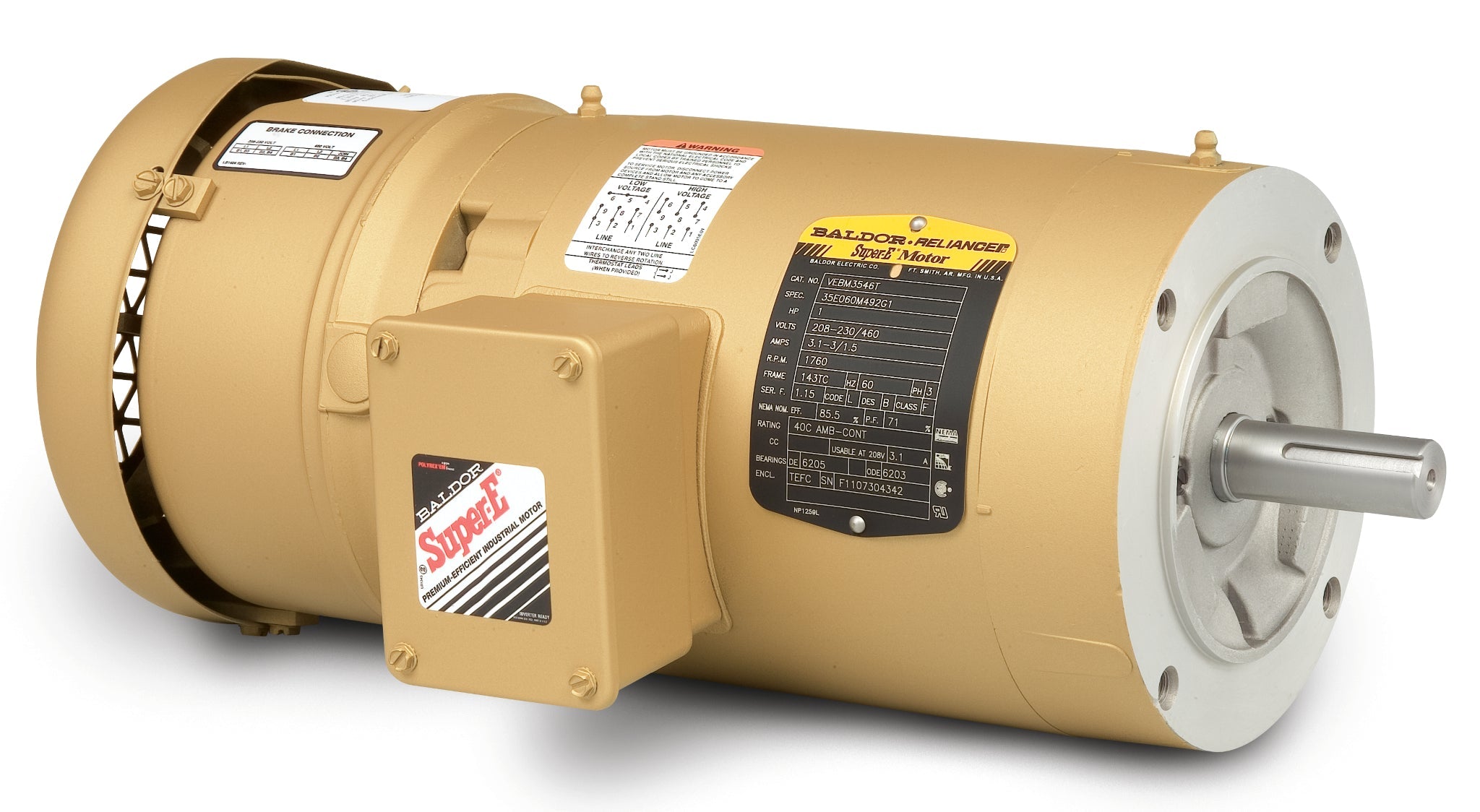

Baldor VEBM3611T - 3 HP, 1760RPM, 3 Phase, 60HZ, 182TC, 3632M, TEFC, F1 60HZ Three Phase 3 HP 3632 M Cable

Save $800.75
BaldorSKU: VEBM3611T

Price:
Sale price$2,402.25 Regular price$3,203.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VEBM3611T - 3 HP Short-Series Brake Motor

The Baldor VEBM3611T is a high-performance 3 HP Short-Series Brake Motor designed for reliable operation in various industrial applications. With a speed of 1760 RPM and a robust 3-phase, 60Hz configuration, this motor is engineered to deliver exceptional torque and efficiency. It features a 182TC frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and protection against environmental factors.

Key Specifications:

  • Power: 3 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 182TC
  • Type: Short-Series Brake Motor
  • Product Code: VEBM3611T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEBM3611T to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568407837
Supplier Part Number VEBM3611T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 80.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 15.0 lb-ft
Catalog Number VEBM3611T
Current @ Voltage 8.400 A @ 230.0 V, 9.000 A @ 208.0 V, 4.200 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.2 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3632M
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 21.11 IN
Phase 3
Power Factor 75
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
