Baldor VEBM3558T-5D - 2/1.5KWHP, 1764 1/MIN IP44 IC411 26KGRPM IP44 Rating

Save $691.50
BaldorSKU: VEBM3558T-5D

Price:
Sale price$2,074.50 Regular price$2,766.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

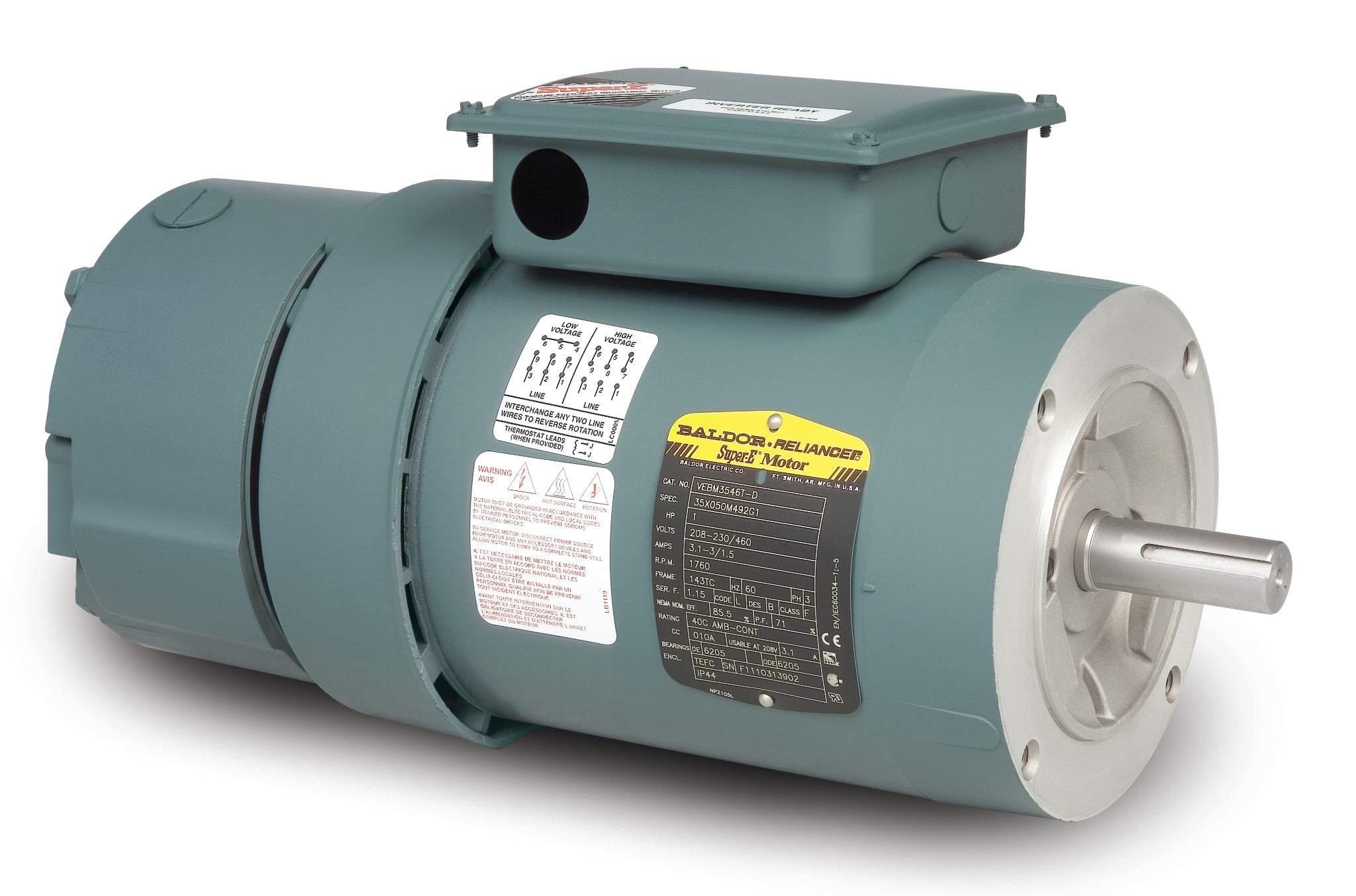

Baldor VEBM3558T-5D General Unit Handling Motor

The Baldor VEBM3558T-5D is a high-performance General Unit Handling Motor designed for reliable operation in various applications. With a power rating of 2/1.5KWHP and a speed of 1764 RPM, this motor is engineered to deliver efficient performance. It features an IP44 rating, ensuring protection against dust and water splashes, making it suitable for industrial environments.

Key Specifications:

  • Power: 2/1.5KWHP
  • Speed: 1764 RPM
  • IP Rating: IP44
  • IC Code: IC411
  • Weight: 26 KG

This Baldor-Reliance motor is ideal for applications requiring robust and dependable performance. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VEBM3558T-5D. If you encounter any difficulties in finding the right item, our team is here to help!

UPC 781568541920
Supplier Part Number VEBM3558T-5D
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals NEMA PREMIUM, UKCA, WEEE, CURUSEEV, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 62.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Catalog Number VEBM3558T-5D
Current @ Voltage 2.150 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F3
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 17.19 IN
Phase 3
Power Factor 80
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
