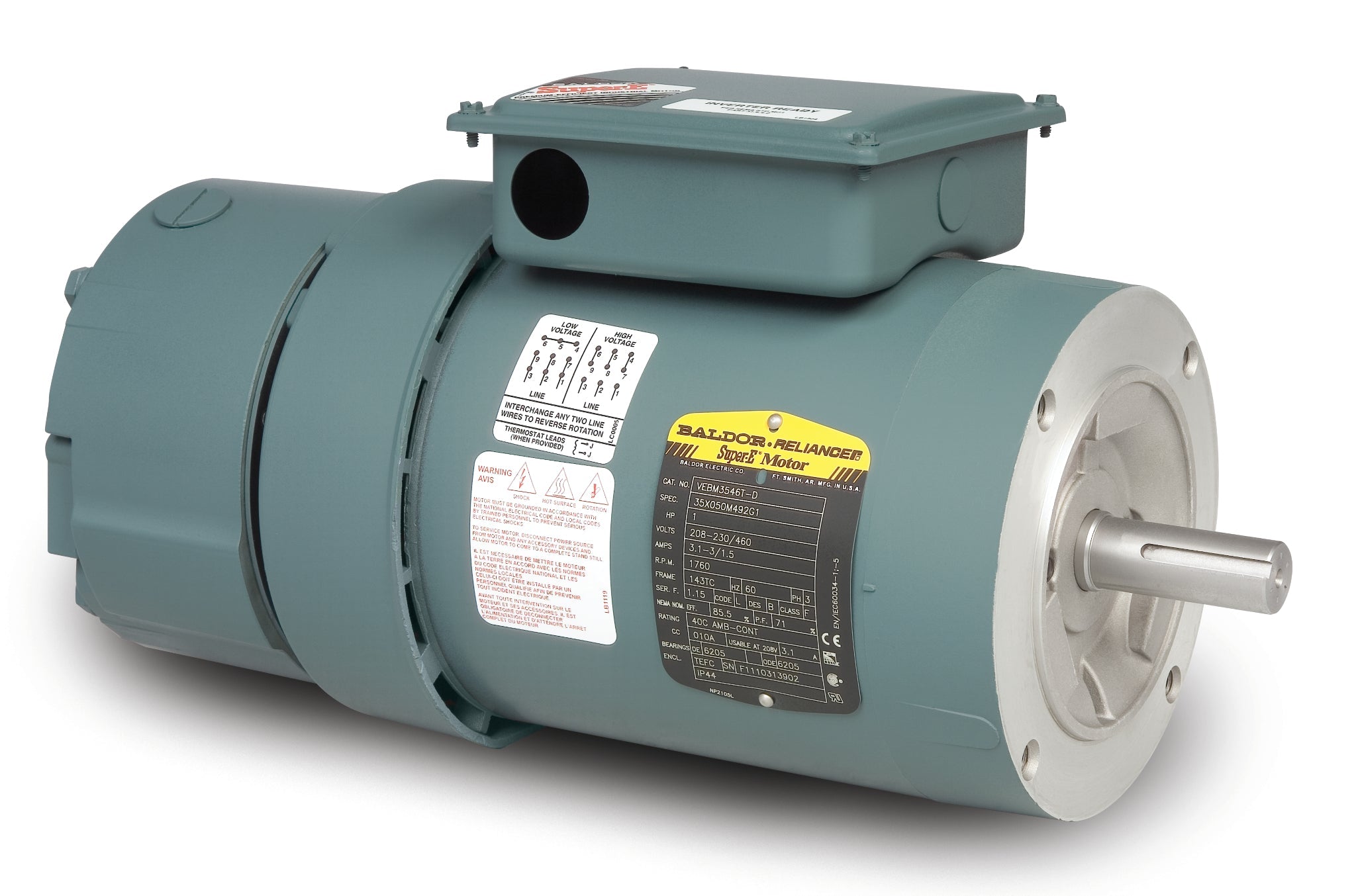

Baldor VEBM3546T-D - 1/.75KWHP, 1770 1/MINRPM, 3 Phase, 60HZ, 143TC, 3 60HZ Three Phase

Save $650.75
BaldorSKU: VEBM3546T-D

Price:
Sale price$1,952.25 Regular price$2,603.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VEBM3546T-D General Unit Handling Motor

The Baldor VEBM3546T-D is a high-performance general unit handling motor designed for reliable operation in various industrial applications. With a power rating of 1/.75 KWHP and a speed of 1770 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for your pumping needs.

Specifications:

  • Power: 1/.75 KWHP
  • Speed: 1770 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 143TC

This motor is part of the Baldor-Reliance range, known for its durability and performance in demanding environments. Whether you are replacing an existing motor or upgrading your system, the VEBM3546T-D is a dependable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568542200
Supplier Part Number VEBM3546T-D
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, UKCA, WEEE, CURUSEEV, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 51.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number VEBM3546T-D
Current @ Voltage 3.200 A @ 230.0 V, 3.200 A @ 208.0 V, 1.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3520M
Mounting Arrangement F3
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 19.19 IN
Phase 3
Power Factor 69
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
