Baldor VBM3542-S - .75/.55 Kwhp, 1765 1/MIN IP44 IC411 20KGR IP44 Rating

Save $504.75
BaldorSKU: VBM3542-S

Price:
Sale price$1,514.25 Regular price$2,019.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

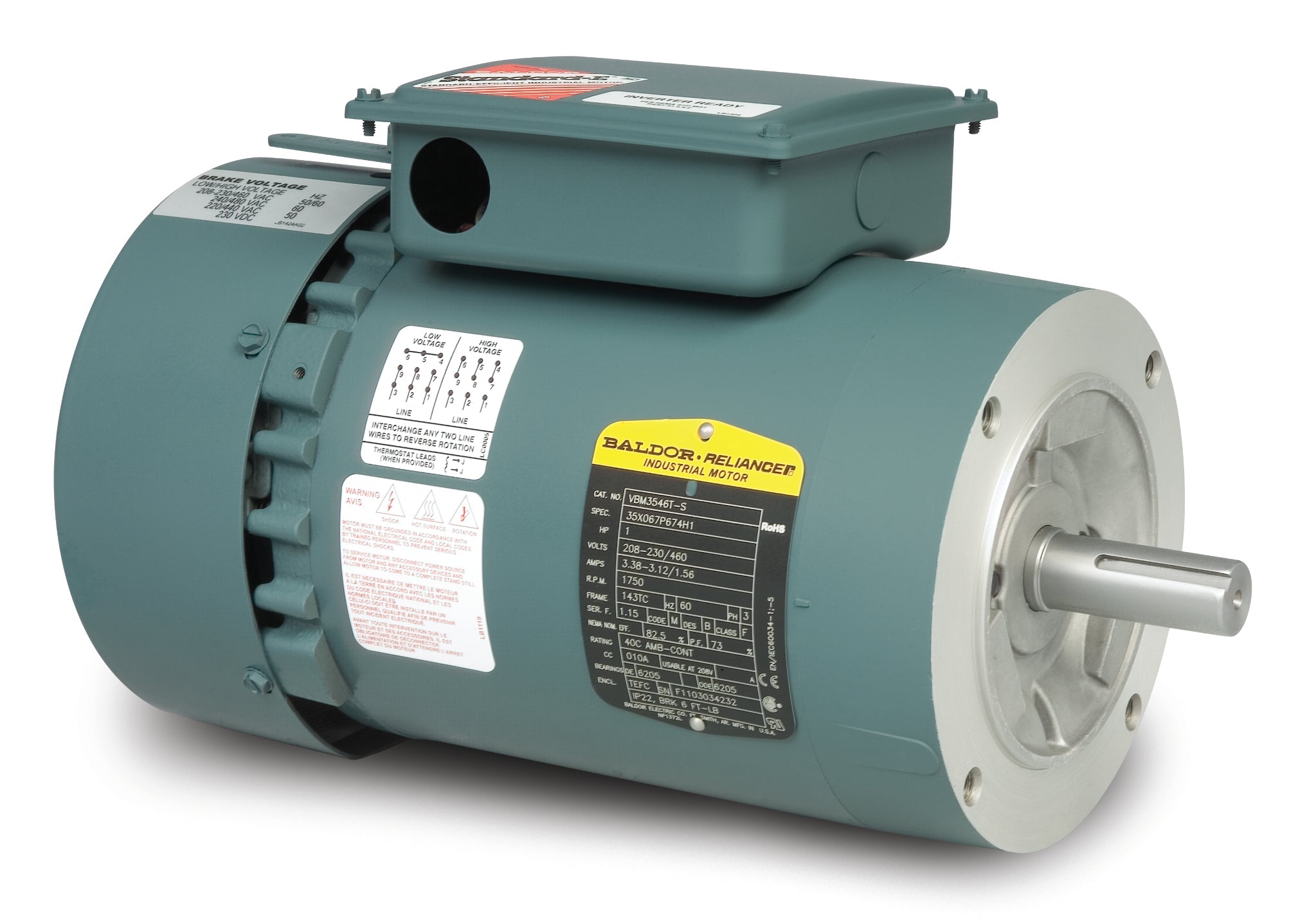

Baldor VBM3542-S General Unit Handling Motor

The Baldor VBM3542-S is a high-performance general unit handling motor designed for reliable operation in various applications. With a power rating of .75/.55 KWHP and a speed of 1765 RPM, this motor is engineered to deliver efficient performance while maintaining durability.

Featuring an IP44 rating, the VBM3542-S is protected against solid objects larger than 1mm and water splashes, making it suitable for a range of environments. The IC411 cooling method ensures optimal thermal management, enhancing the motor's longevity and efficiency.

As a trusted vendor, Baldor provides quality motors that meet the demands of industrial applications. The VBM3542-S is ideal for those seeking a dependable solution for their unit handling needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VBM3542-S to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568503225
Supplier Part Number VBM3542-S
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals UKCA, WEEE, CURUS, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 3.0 lb-ft
Catalog Number VBM3542-S
Current @ Voltage 2.420 A @ 230.0 V, 2.420 A @ 208.0 V, 1.210 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Special Combinations Not Liste
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 14.34 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
