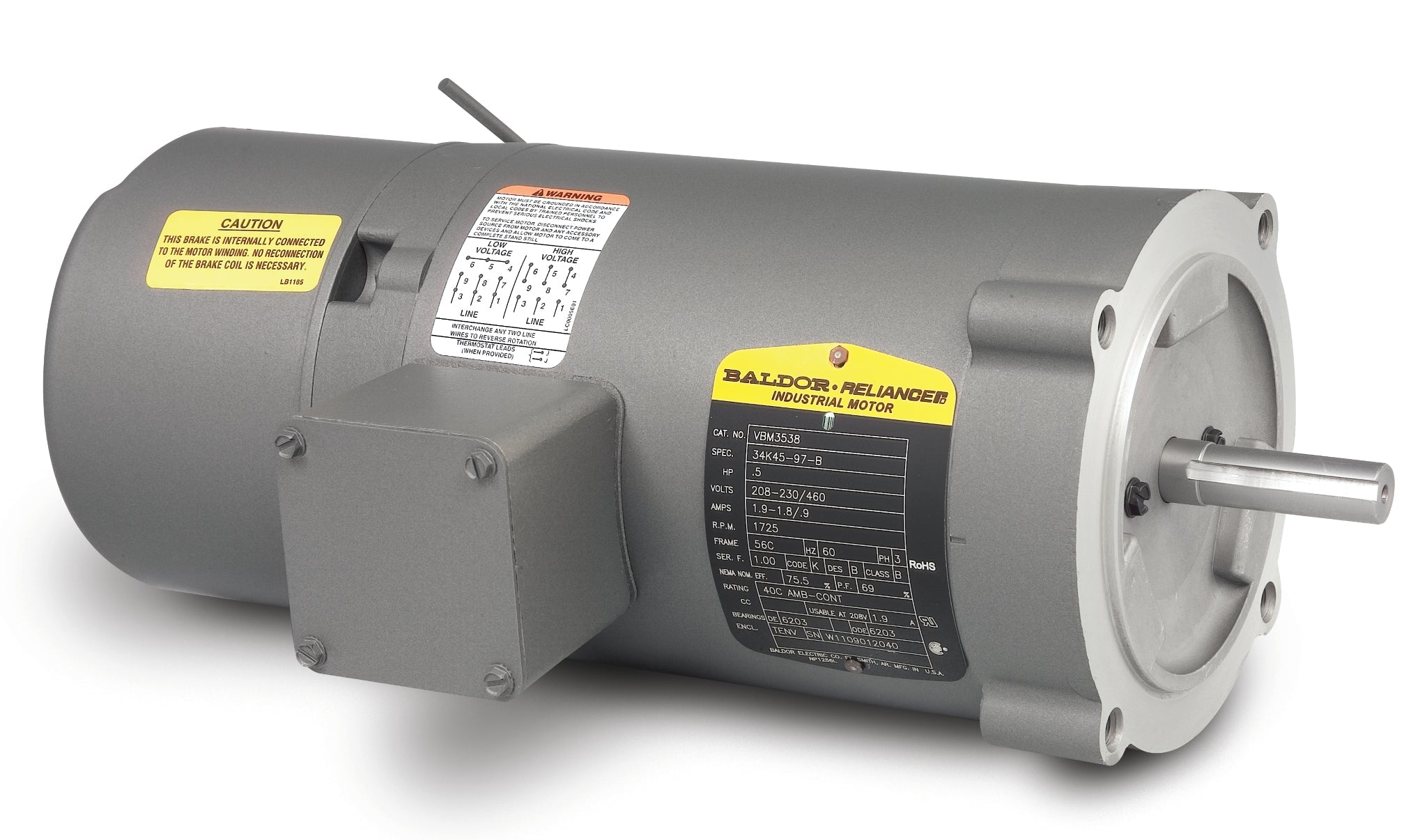

Baldor VBM3542 - .75 HP, 1725RPM, 3 Phase, 60HZ, 56C, Brake, 3428M 60HZ Three Phase 75 HP 3428 M Cable 56°C

Save $490.00
BaldorSKU: VBM3542

Price:
Sale price$1,470.00 Regular price$1,960.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Short-Series Brake Motor - VBM3542

Introducing the Baldor VBM3542, a high-performance Short-Series Brake Motor designed for reliable operation in various industrial applications. With a power rating of .75 HP and a speed of 1725 RPM, this 3-phase motor operates efficiently at 60HZ. The motor features a durable 56C frame and is equipped with a brake for enhanced control and safety during operation.

This Baldor-Reliance motor is ideal for applications requiring precise stopping and starting capabilities, making it a perfect choice for pump systems and other machinery. As a trusted vendor, Baldor ensures quality and performance in every unit.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the VBM3542 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Key Features:

  • Power: .75 HP
  • Speed: 1725 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame: 56C
  • Type: Short-Series Brake Motor
  • Product Code: VBM3542

Choose the Baldor VBM3542 for reliable performance and efficiency in your operations.

UPC 781568115404
Supplier Part Number VBM3542
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number VBM3542
Current @ Voltage 1.300 A @ 460.0 V, 2.600 A @ 230.0 V, 2.900 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.3 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3428M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 15.86 IN
Phase 3
Power Factor 71
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
