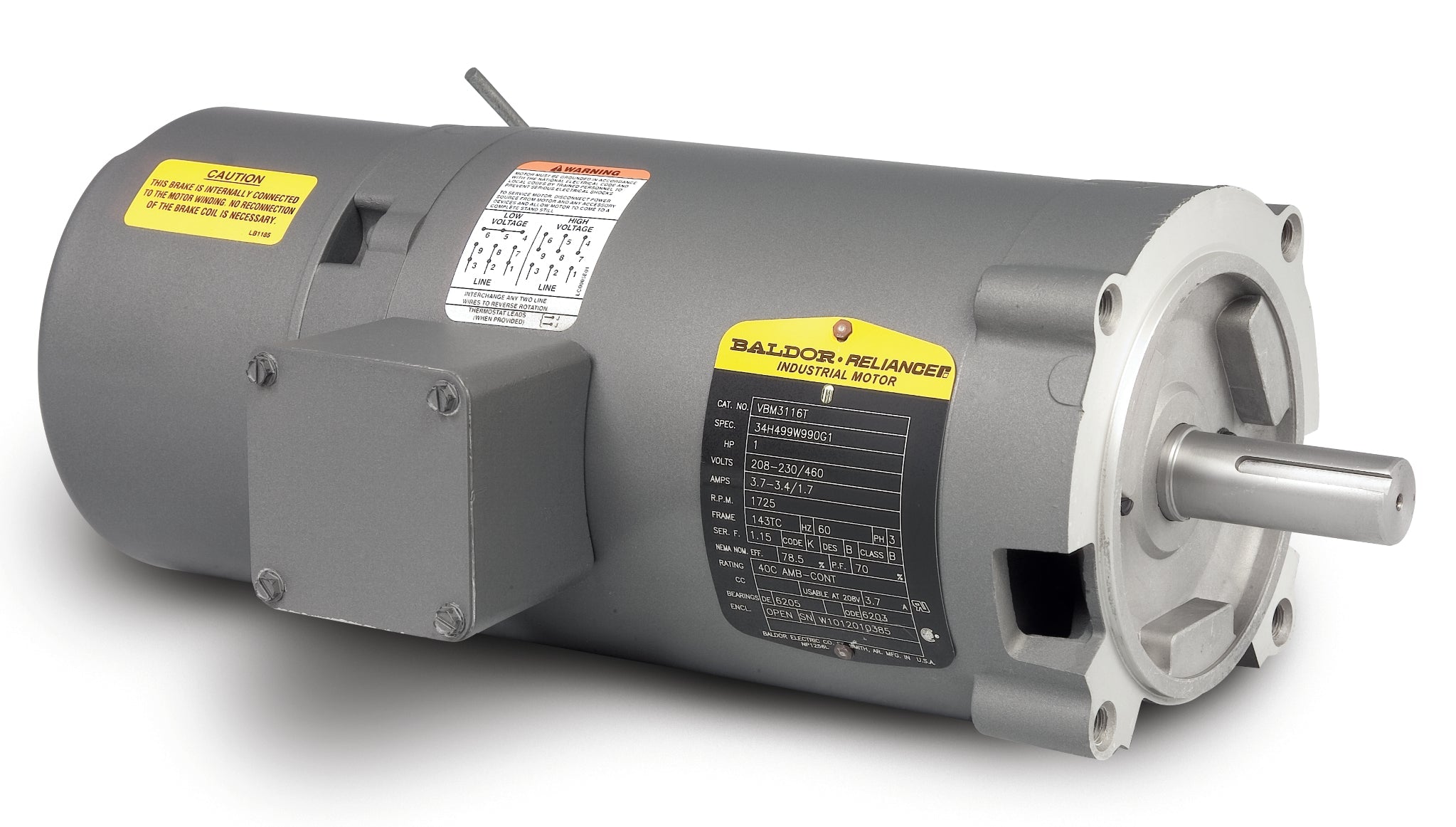

Baldor VBM3154 - 1.5 HP, 1735RPM, 3 Phase, 60HZ, 56C, 3518M, Open, F1 60HZ Three Phase 1.5 HP 3518 M Cable 56°C

Save $579.25
BaldorSKU: VBM3154

Price:
Sale price$1,737.75 Regular price$2,317.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VBM3154 - 1.5 HP Short-Series Brake Motor

The Baldor VBM3154 is a high-performance 1.5 HP Short-Series Brake Motor designed for reliable operation in various industrial applications. With a speed of 1735 RPM and a robust 3-phase design, this motor operates efficiently at 60Hz, making it an ideal choice for your pumping needs.

Key Features:

  • Power: 1.5 HP
  • Speed: 1735 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Open Enclosure: Yes
  • Product Code: VBM3154

This motor is part of the Baldor-Reliance Short-Series Brake Motors, known for their durability and efficiency. Whether you are replacing an existing motor or upgrading your system, the VBM3154 is a dependable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VBM3154. Our team is here to help you find the perfect solution for your needs.

UPC 781568115572
Supplier Part Number VBM3154
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 44.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Catalog Number VBM3154
Current @ Voltage 2.600 A @ 460.0 V, 5.000 A @ 208.0 V, 5.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3518M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 15.26 IN
Phase 3
Power Factor 66
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1735 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
