Baldor VBM3112 - RPM, 0 Phase, HZ, 56C, Open, F1, Brake 56°C

Save $457.75
BaldorSKU: VBM3112

Price:
Sale price$1,373.25 Regular price$1,831.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

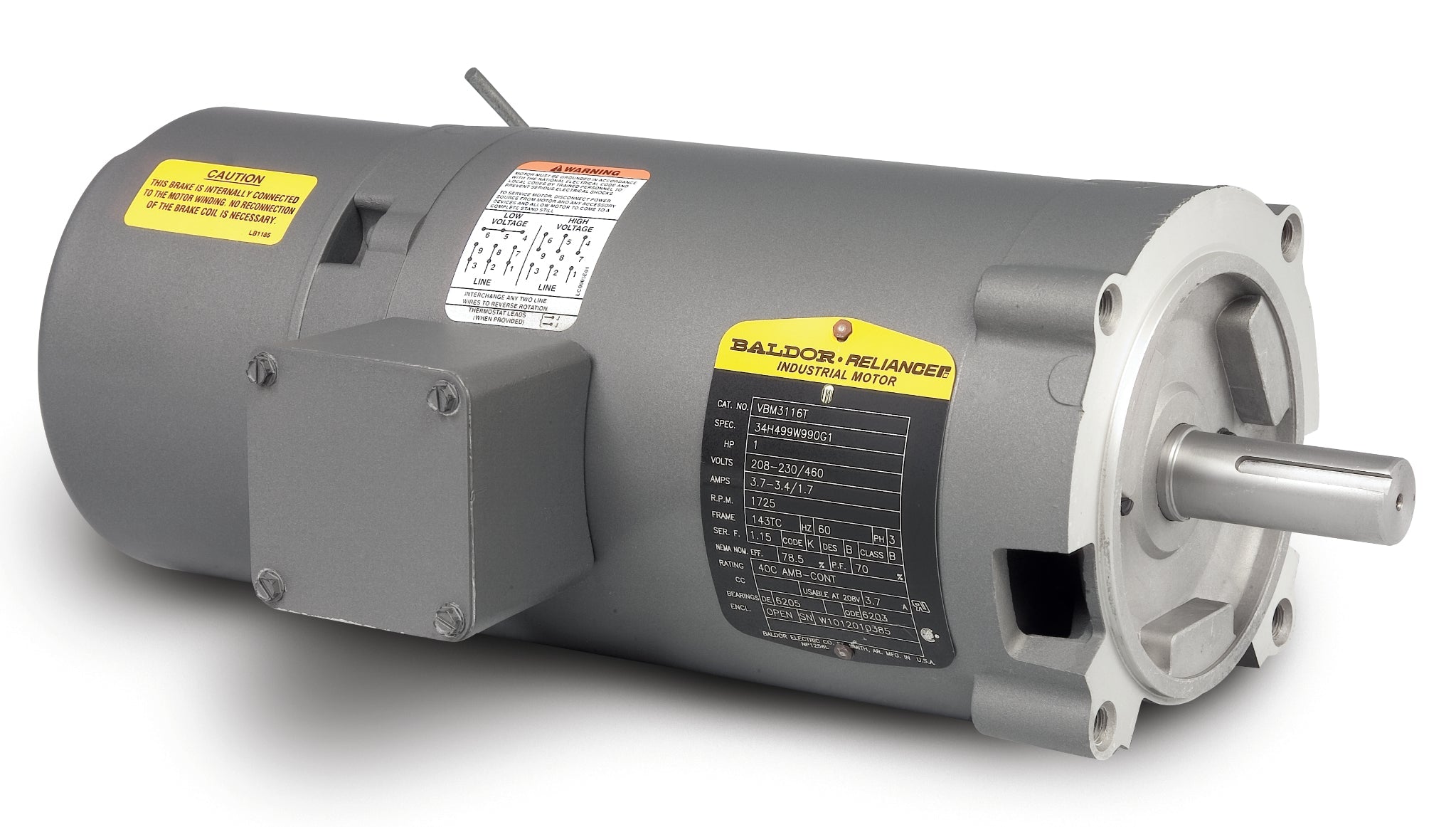

Baldor VBM3112 Short-Series Brake Motor

The Baldor VBM3112 is a high-performance Short-Series Brake Motor designed for reliable operation in various applications. This motor features a robust construction with an open design, making it suitable for environments where cooling is essential. With a 56C frame size, it ensures compatibility with a wide range of mounting configurations.

Key Features:

  • Type: Short-Series Brake Motor
  • RPM: 0
  • Phase: 0PH
  • Frequency: HZ
  • Frame Size: 56C
  • Design: Open
  • Brake: Yes

This Baldor-Reliance motor is ideal for applications requiring precise control and stopping capabilities. Whether you are replacing an existing motor or upgrading your system, the VBM3112 is engineered to deliver exceptional performance and durability.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VBM3112. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568115541
Supplier Part Number VBM3112
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 31.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number VBM3112
Current @ Voltage 1.500 A @ 460.0 V, 3.000 A @ 230.0 V, 3.200 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3420M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 15.36 IN
Phase 3
Power Factor 64
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
