Baldor RM3157A - 2 HP, 1770RPM, 3 Phase, 60HZ, 56H, 3526M, Opao, F1, N 60HZ Three Phase 2 HP 3526 M Cable

Save $273.75
BaldorSKU: RM3157A

Price:
Sale price$821.25 Regular price$1,095.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

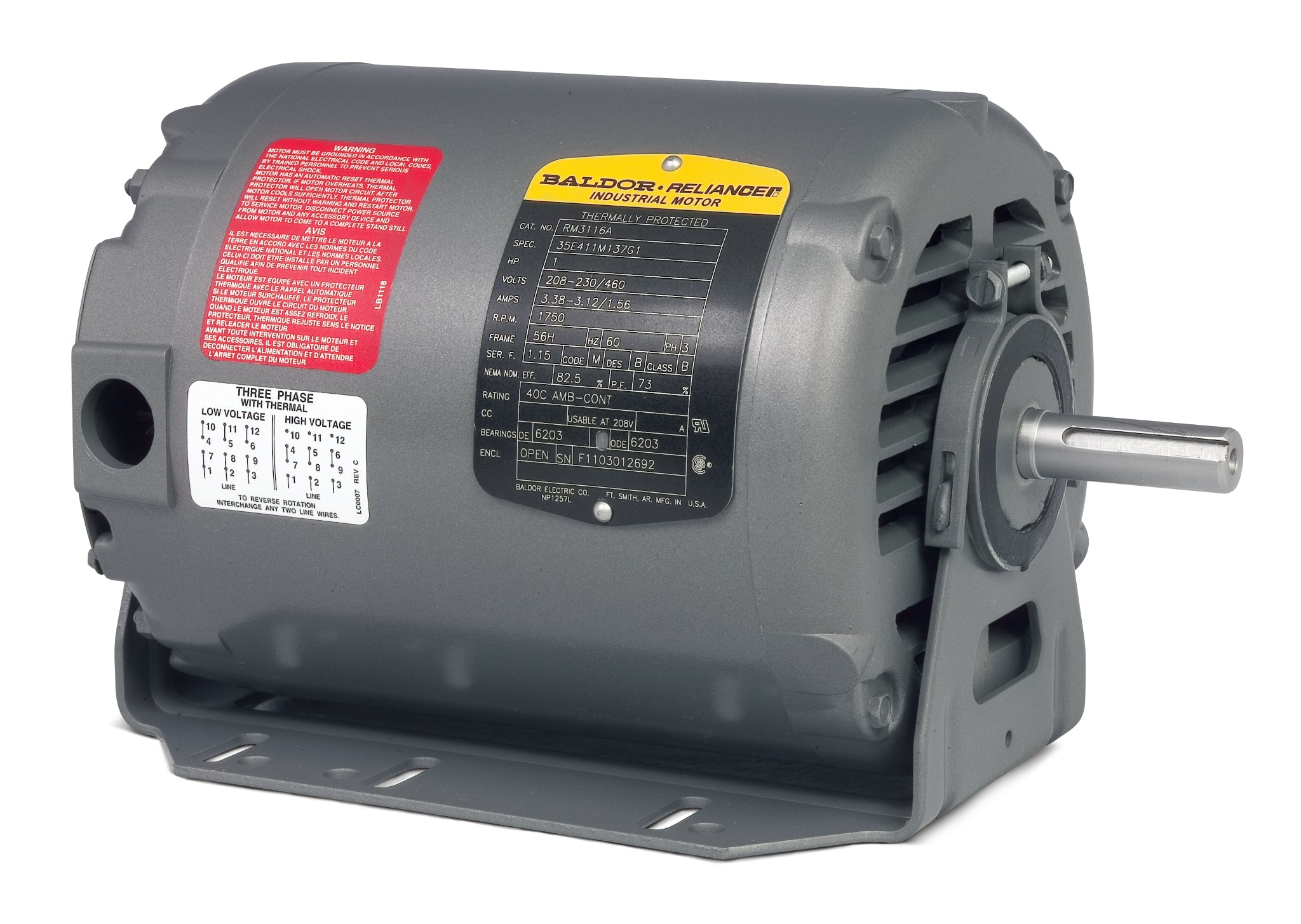

Baldor RM3157A - 2 HP Fan and Blower Motor

Upgrade your industrial applications with the Baldor RM3157A, a high-performance 2 HP fan and blower motor designed for efficiency and reliability. Operating at 1770 RPM, this 3-phase motor is optimized for 60Hz power supply, making it an ideal choice for various ventilation and cooling systems.

Specifications:

  • Power: 2 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56H
  • Enclosure: OPAO
  • Product Code: RM3157A

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it suitable for a wide range of applications. Whether you need to replace an existing motor or are looking to enhance your system's efficiency, the Baldor RM3157A is the perfect solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor RM3157A. Our team is here to help you find the right item for your needs.

UPC 781568121030
Supplier Part Number RM3157A
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 40.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RM3157A
Current @ Voltage 2.900 A @ 460.0 V, 5.800 A @ 208.0 V, 5.800 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPAO
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3524M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 12.42 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
