Baldor RM3116A - 1 Air Overhp, 1725RPM, 3 Phase, 60HZ, 56, 3424M 60HZ Three Phase 3424 M Cable

Save $224.75
BaldorSKU: RM3116A

Price:
Sale price$674.25 Regular price$899.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

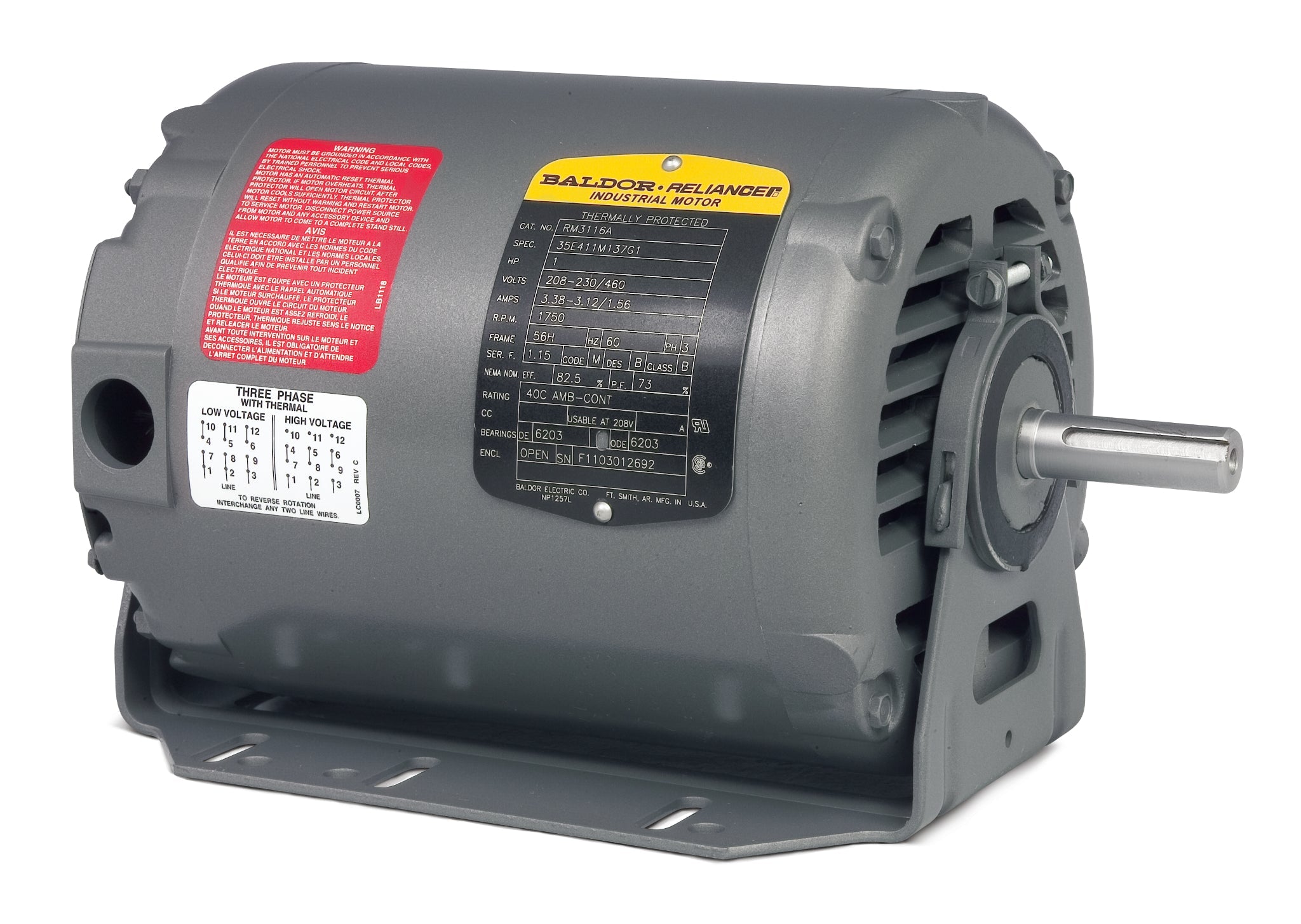

Baldor RM3116A - 1 Air Overhp Fan and Blower Motor

The Baldor RM3116A is a high-performance air over horsepower motor designed specifically for fan and blower applications. Operating at 1725 RPM, this robust 3-phase motor is engineered for efficiency and reliability, making it an ideal choice for various industrial and commercial settings.

  • Product Code: RM3116A
  • Type: Fan and Blower Motor
  • Power: 1 Air Overhp
  • Speed: 1725 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Model: 3424M

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor RM3116A. If you encounter any difficulties in locating the right item, our knowledgeable team is here to help!

UPC 781568120996
Supplier Part Number RM3116A
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 31.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RM3116A
Current @ Voltage 2.000 A @ 460.0 V, 3.900 A @ 208.0 V, 4.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3424M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.47 IN
Phase 3
Power Factor 70
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
