Baldor RM3007A - .33 HP, 1725RPM, 3 Phase, 60HZ, 48, 3413M, Open, F1 60HZ Three Phase 33 HP 3413 M Cable

Save $132.25
BaldorSKU: RM3007A

Price:
Sale price$396.75 Regular price$529.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

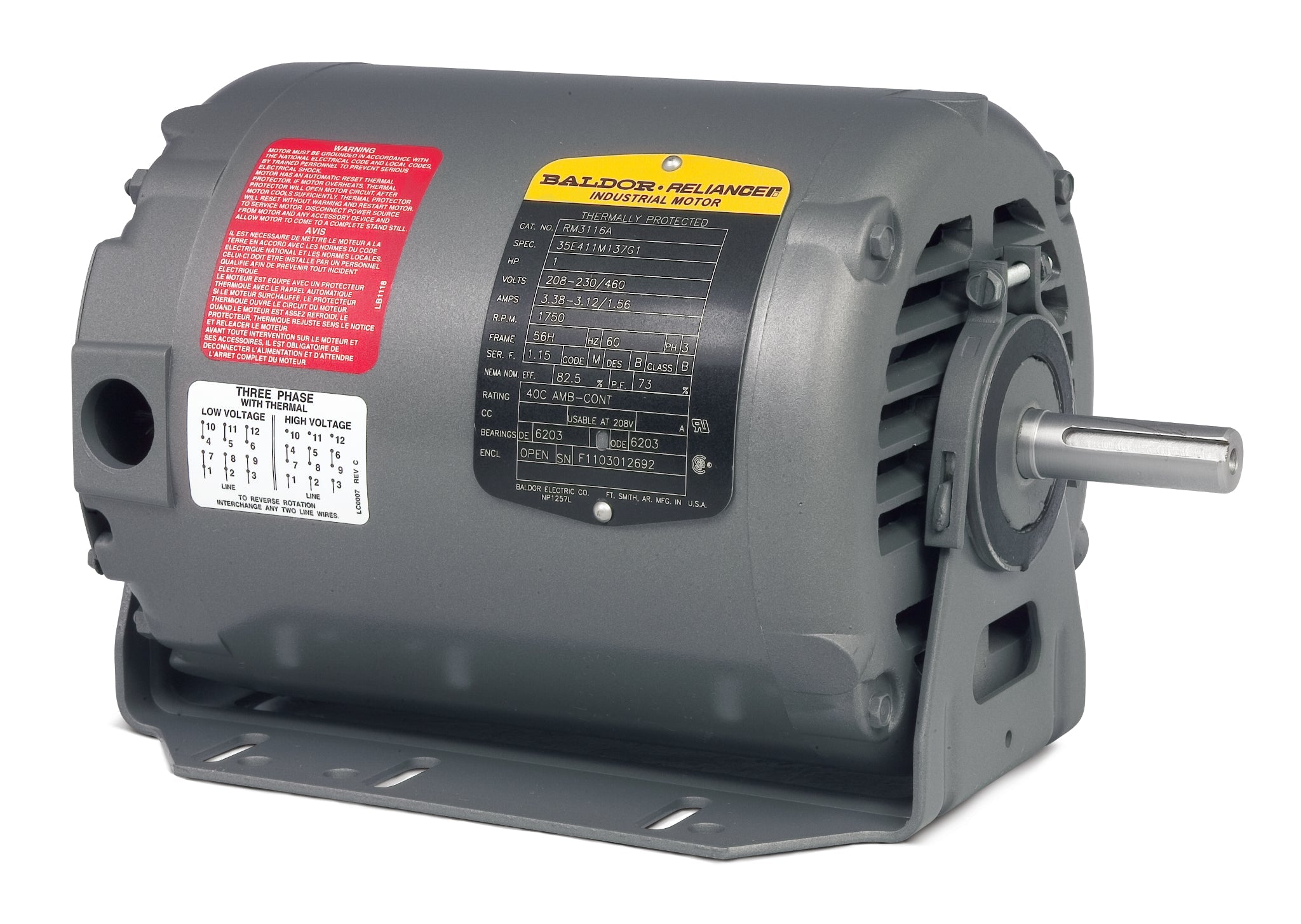

Baldor RM3007A - .33 HP Fan and Blower Motor

Upgrade your ventilation system with the Baldor RM3007A, a high-performance fan and blower motor designed for efficiency and reliability. This motor features a power output of .33 HP and operates at 1725 RPM, making it ideal for various applications requiring consistent airflow.

Key specifications include:

  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 48
  • Enclosure Type: Open
  • Product Code: RM3007A

This Baldor-Reliance motor is built to last, ensuring optimal performance in demanding environments. Whether you need it for industrial or commercial applications, the RM3007A is a reliable choice.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the RM3007A. Our team is here to help you find the perfect solution for your needs.

UPC 781568719046
Supplier Part Number RM3007A
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RM3007A
Current @ Voltage .800 A @ 460.0 V, 1.600 A @ 230.0 V, 1.800 A @ 208.0 V, 2.000 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 48
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3413M
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 10.34 IN
Phase 3
Power Factor 57
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
