Baldor RL1310A277 - 1 HP, 1725RPM, 1 Phase, 60HZ, 56H, 3526L, Open, F1, N 60HZ Single Phase 1 HP

Save $270.50
BaldorSKU: RL1310A277

Price:
Sale price$811.50 Regular price$1,082.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

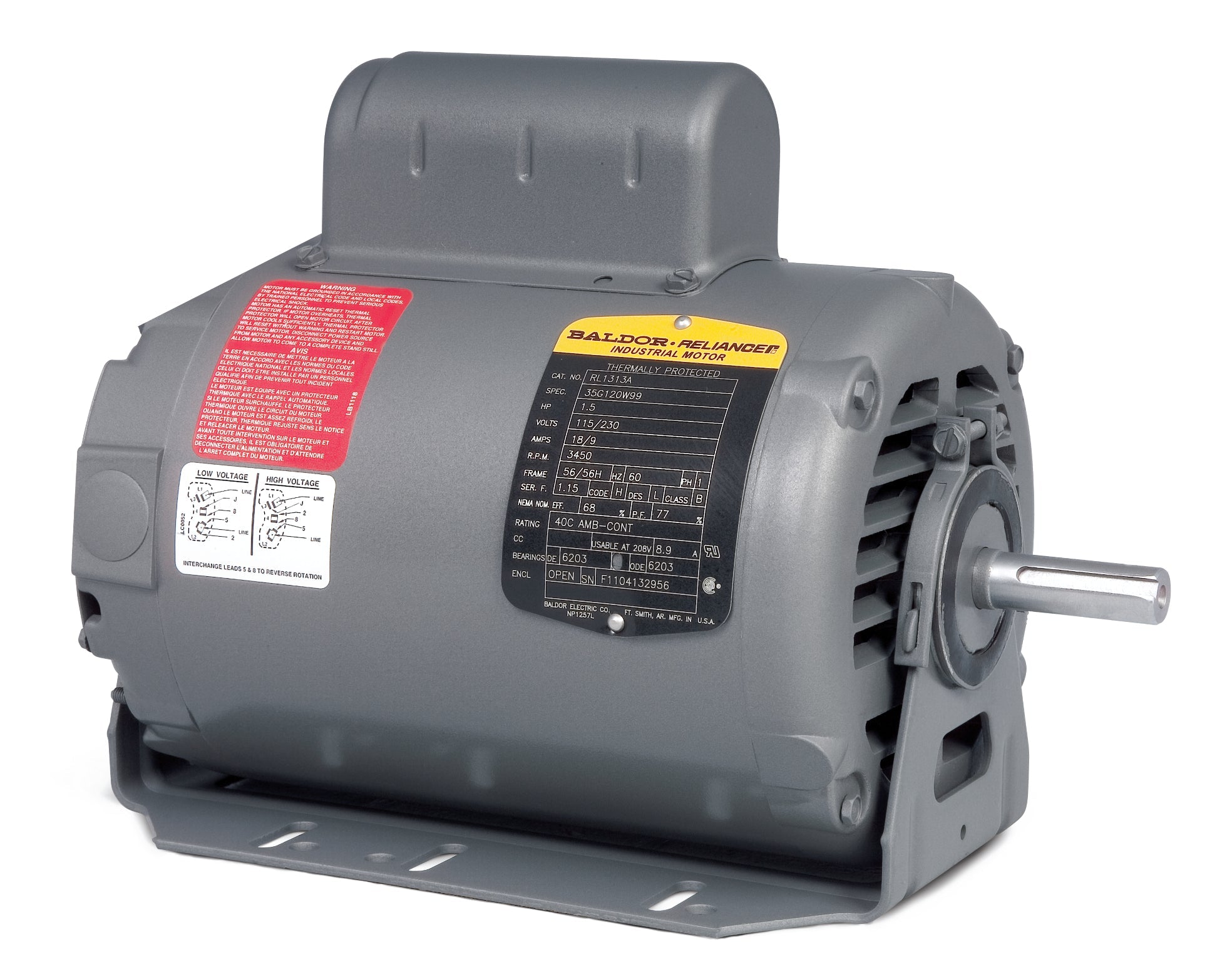

Baldor RL1310A277 - 1 HP Fan and Blower Motor

The Baldor RL1310A277 is a high-performance fan and blower motor designed for reliable operation in various applications. With a power rating of 1 HP and a speed of 1725 RPM, this single-phase motor operates at 60Hz, making it an ideal choice for both residential and commercial use.

Specifications:

  • Power: 1 HP
  • Speed: 1725 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame: 56H
  • Enclosure: Open
  • Product Code: RL1310A277

This Baldor-Reliance motor is built for durability and efficiency, making it a trusted choice for your fan and blower needs. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor RL1310A277. If you encounter any difficulties in finding the right item, our knowledgeable team is here to help!

UPC 781568308332
Supplier Part Number RL1310A277
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RL1310A277
Current @ Voltage 5.600 A @ 277.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3528L
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.42 IN
Phase 1
Power Factor 71
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 277 V
Voltage @ Frequency 277.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
