Baldor RL1307A277 - .75 HP, 1725RPM, 1 Phase, 60HZ, 56H, 3428L, Open, F1 60HZ Single Phase 75 HP

Save $263.00
BaldorSKU: RL1307A277

Price:
Sale price$789.00 Regular price$1,052.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

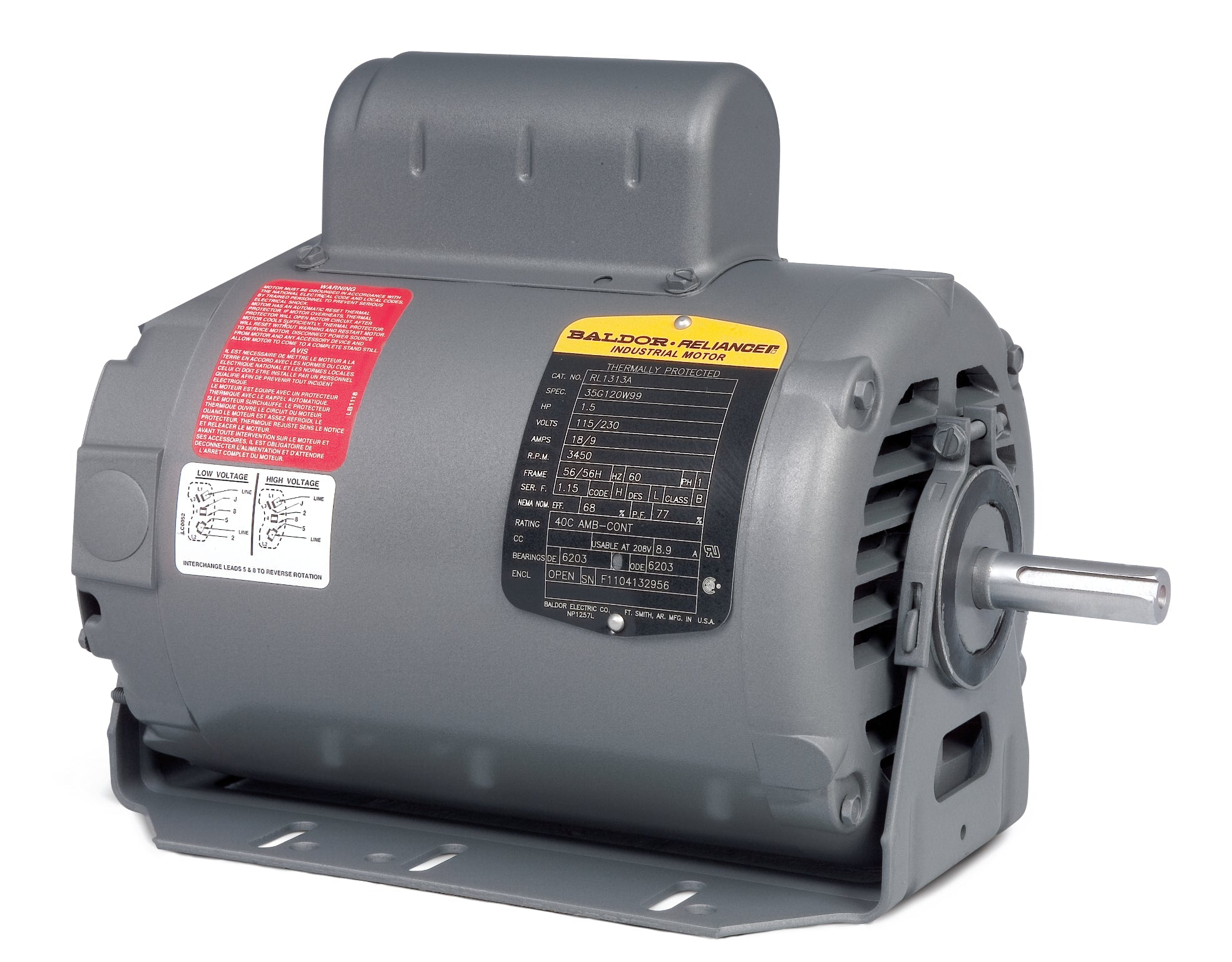

Baldor RL1307A277 - .75 HP Fan and Blower Motor

Upgrade your ventilation system with the Baldor RL1307A277, a high-performance .75 HP fan and blower motor designed for efficiency and reliability. Operating at 1725 RPM, this single-phase motor is perfect for various applications, ensuring optimal airflow and performance.

  • Power: .75 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 56H
  • Enclosure Type: Open
  • Product Code: RL1307A277

This Baldor-Reliance motor is ideal for fan and blower applications, providing reliable performance in a compact design. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor RL1307A277 to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568308325
Supplier Part Number RL1307A277
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RL1307A277
Current @ Voltage 4.200 A @ 277.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 66.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3428L
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.47 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 277 V
Voltage @ Frequency 277.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None

Motor Curves
