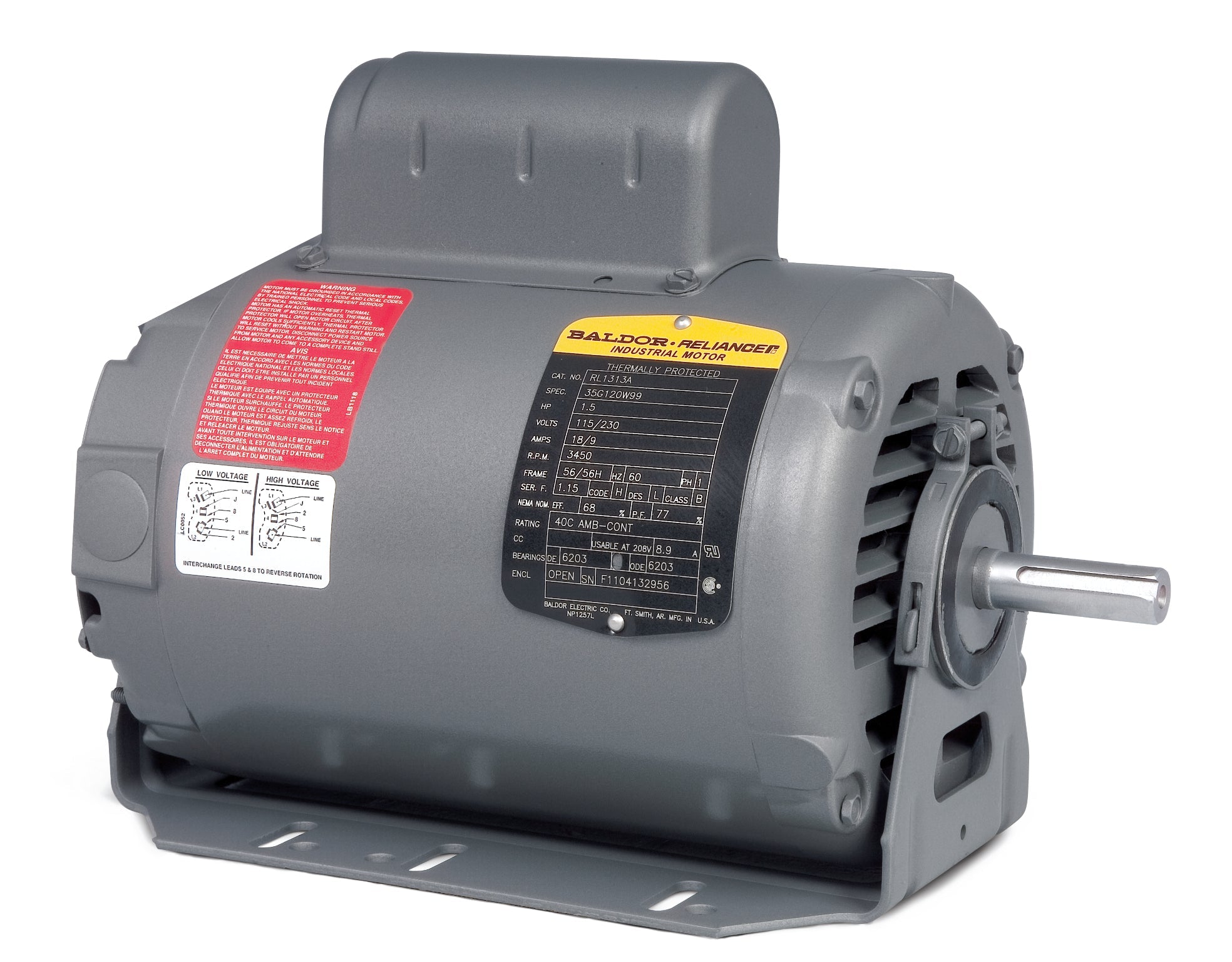

UPC
781568308301
Supplier Part Number
RL1304A277
Category
AC Motors
Subcategory
Fan and Blower Motors
Product Family
General Purpose
Agency Approvals
C UR US
Ambient Temperature
40 °C
Approximate Weight (lbs)
26.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Resilient
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
RL1304A277
Current @ Voltage
3.600 A @ 277.0 V
Design Code
N
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
62.0 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
OPEN
Feedback Device
NO FEEDBACK
Frame
56
Frame Material
Steel
Frequency
60.00 Hz
Front Face Code
Resilient Mount
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
3.6 a
Insulation Class
B
Inverter Code
Not Inverter
KVA Code
K
Lifting Lugs
No Lifting Lugs
Locked Bearing Indicator
No Locked Bearing
Motor Lead Exit
Terminal Panel
Motor Lead Quantity/Wire Size
5 @ 18 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Cap Start, Induction Run
Motor Standards
NEMA
Motor Type
3418L
Mounting Arrangement
F1
Number of Poles
4
Output
0.500 hp
Output @ Frequency
.500 HP @ 60 HZ
Overall Length
11.59 IN
Phase
1
Power Factor
61
Pulley End Bearing Type
Ball
Pulley Face Code
Resilient Mount
Pulley Shaft Indicator
Standard
Rodent Screen
None
Service Factor
1.25
Shaft Diameter
0.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible: Connected Standard
Shaft Slinger Indicator
No Slinger
Speed
1725 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Voltage
277 V
Voltage @ Frequency
277.0 V @ 60 HZ
Winding Thermal 1
Automatic Thermal Overload
Winding Thermal 1 Location
SB
Winding Thermal 2
None
