Baldor RL1301A277 - .33HP/1725RPM/1PH/OPEN/NEMA 56 Single Phase 33 HP NEMA 56 Rating

Save $183.50
BaldorSKU: RL1301A277

Price:
Sale price$550.50 Regular price$734.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

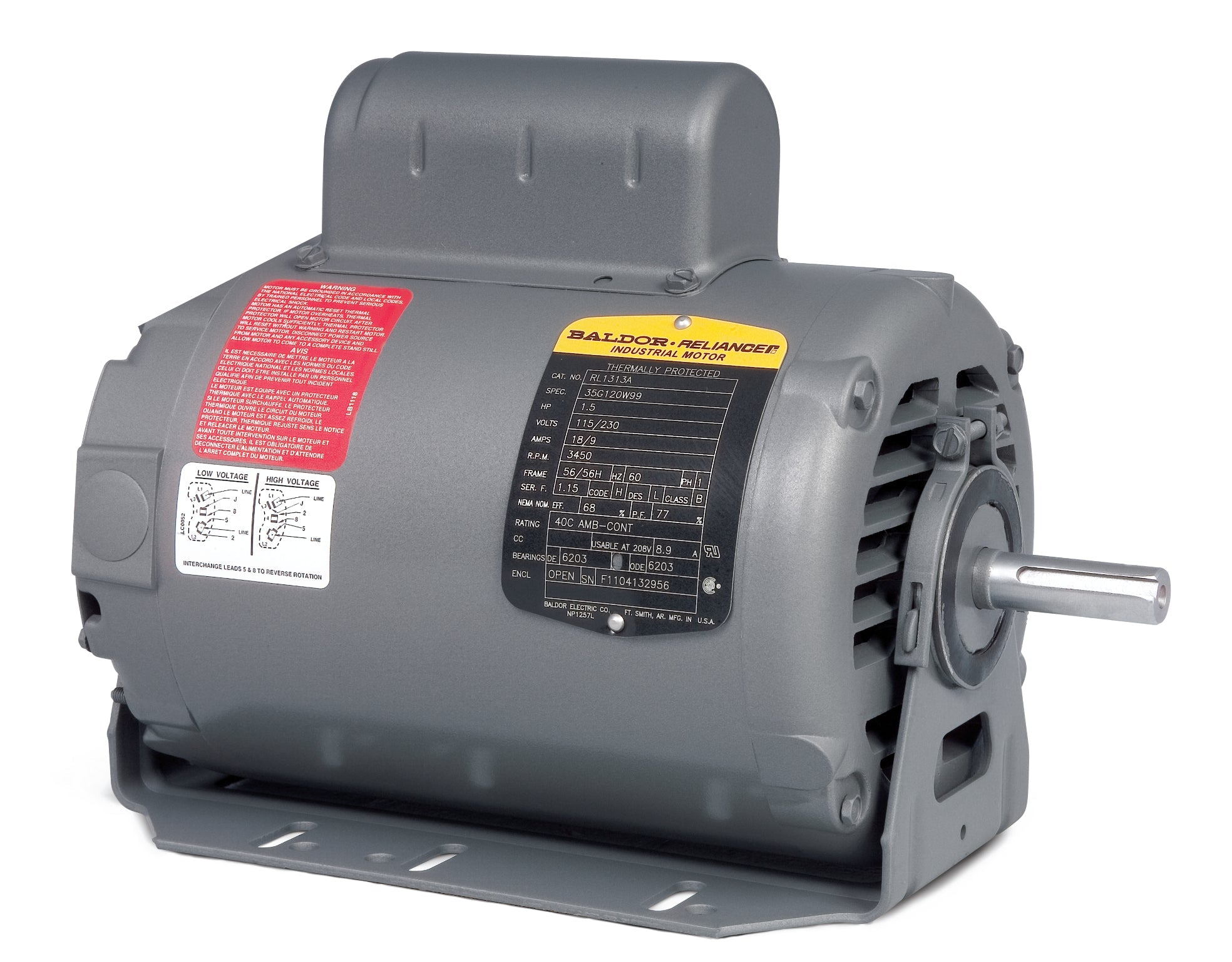

Baldor RL1301A277 - .33HP Fan and Blower Motor

Upgrade your ventilation system with the Baldor RL1301A277, a reliable .33HP single-phase fan and blower motor designed for optimal performance. Operating at 1725 RPM, this open-type motor is built to meet NEMA 56 standards, ensuring compatibility with a wide range of applications.

Key Features:

  • Power: .33HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Type: Open
  • NEMA Rating: 56
  • Product Code: RL1301A277

Whether you're replacing an old motor or upgrading your system, the Baldor RL1301A277 is the perfect choice for efficient airflow and reliable operation. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor RL1301A277. If you have any questions or need help finding the right item, don't hesitate to call us at (781) 281-8905.

UPC 781568308295
Supplier Part Number RL1301A277
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 23.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RL1301A277
Current @ Voltage 2.500 A @ 277.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 60.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3414L
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 10.97 IN
Phase 1
Power Factor 60
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 277 V
Voltage @ Frequency 277.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
