Description

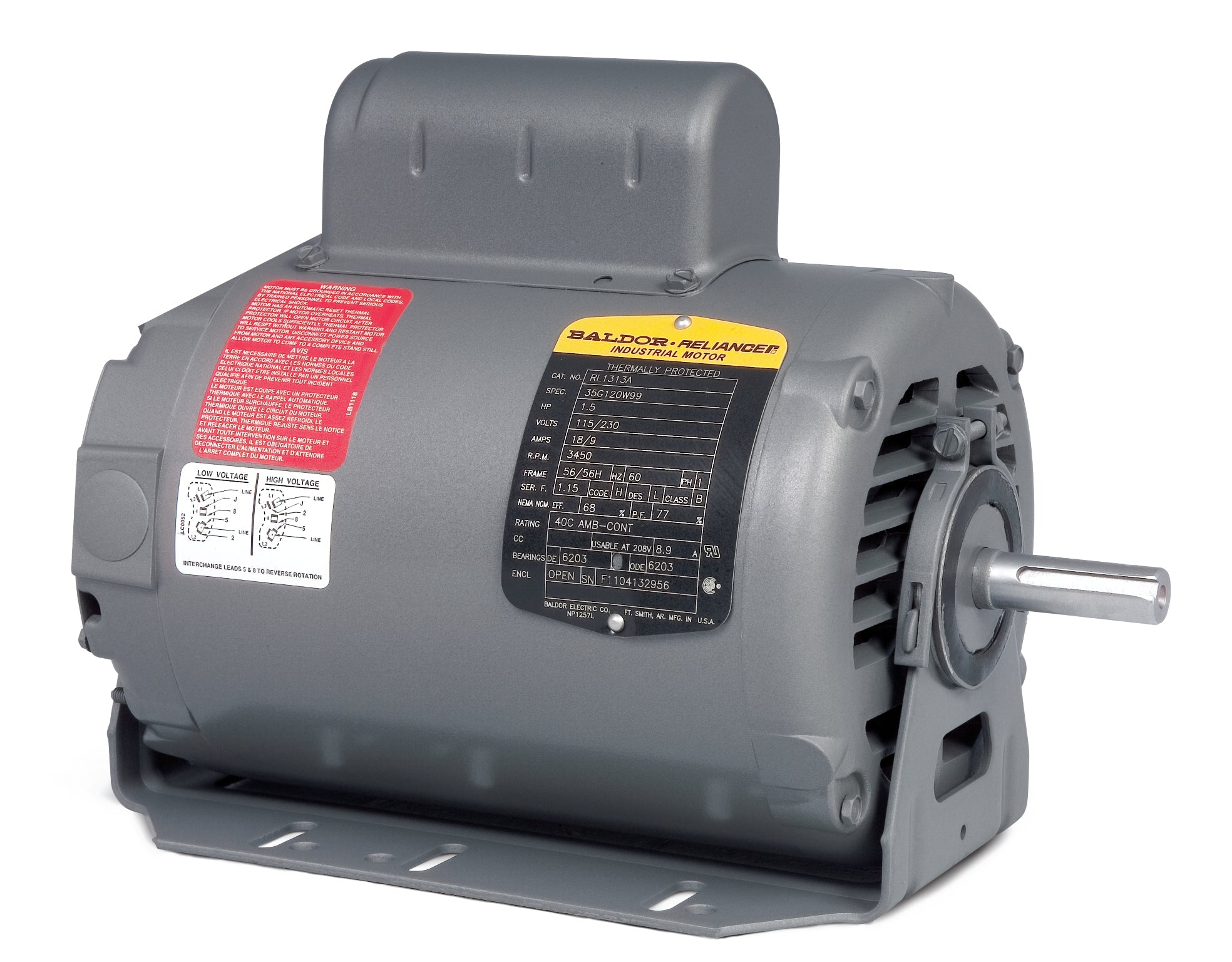

Baldor Replacement Part — Component
The Baldor RL1209A for Baldor pump systems.
Part Specifications
| Part Number | RL1209A |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568718810
- Supplier Part Number
- RL1209A
- Category
- AC Motors
- Subcategory
- Fan and Blower Motors
- Product Family
- General Purpose
- Agency Approvals
- CURUS
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 27.0
- Auxillary Box
- No Auxillary Box
- Auxillary Box Lead Termination
- None
- Base Indicator
- Resilient
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Blower
- None
- Catalog Number
- RL1209A
- Current @ Voltage
- 3.000 A @ 230.0 V, 3.300 A @ 220.0 V, 6.000 A @ 115.0 V, 6.600 A @ 110.0 V
- Design Code
- N
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 74.0 %
- Electrically Isolated Bearing
- Not Electrically Isolated
- Enclosure
- ODP
- Feedback Device
- NO FEEDBACK
- Frame
- 48
- Frame Material
- Steel
- Frequency
- 50.00 Hz, 60.00 Hz
- Front Face Code
- Resilient Mount
- Front Shaft Indicator
- None
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 3.0 a
- Insulation Class
- B
- Inverter Code
- Not Inverter
- KVA Code
- J
- Lifting Lugs
- No Lifting Lugs
- Locked Bearing Indicator
- No Locked Bearing
- Motor Lead Exit
- Terminal Panel Or Lead Hole
- Motor Lead Quantity/Wire Size
- 6 @ 18 AWG
- Motor Lead Termination
- None
- Motor Letter Type
- Cap Start, Induction Run
- Motor Standards
- NEMA
- Motor Type
- 3420L
- Mounting Arrangement
- F1
- Number of Poles
- 2
- Output
- 0.500 hp @ 50 Hz, 0.500 hp @ 60 Hz
- Output @ Frequency
- .500 HP @ 60 HZ, .500 HP @ 50 HZ
- Overall Length
- 10.96 IN
- Phase
- 1
- Power Factor
- 69
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- Resilient Mount
- Pulley Shaft Indicator
- Standard
- Rodent Screen
- None
- RoHS Status
- ROHS COMPLIANT
- Service Factor
- 1.25
- Shaft Diameter
- 0.500 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- No Slinger
- Speed
- 2850 rpm, 3450 rpm
- Speed Code
- Single Speed
- Starting Method
- Direct on line
- Synchronous Speed
- 3,600 rpm
- Synchronous Speed @ Frequency
- 3600 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Vibration Sensor Indicator
- No Vibration Sensor
- Voltage
- 110 V @ 50 Hz, 220 V @ 50 Hz, 115 V @ 60 Hz, 230 V @ 60 Hz
- Voltage @ Frequency
- 230.0 V @ 60 HZ, 110.0 V @ 50 HZ, 115.0 V @ 60 HZ, 220.0 V @ 50 HZ
- Winding Thermal 1
- Automatic Thermal Overload
- Winding Thermal 1 Location
- SB
- Winding Thermal 2
- None
