Baldor PSC3416A - .33 HP, 1625RPM, 1 Phase, 60HZ, 48Z, 3414C, Teao, F1 60HZ Single Phase 33 HP 3414°C

Save $182.75
BaldorSKU: PSC3416A

Price:
Sale price$548.25 Regular price$731.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

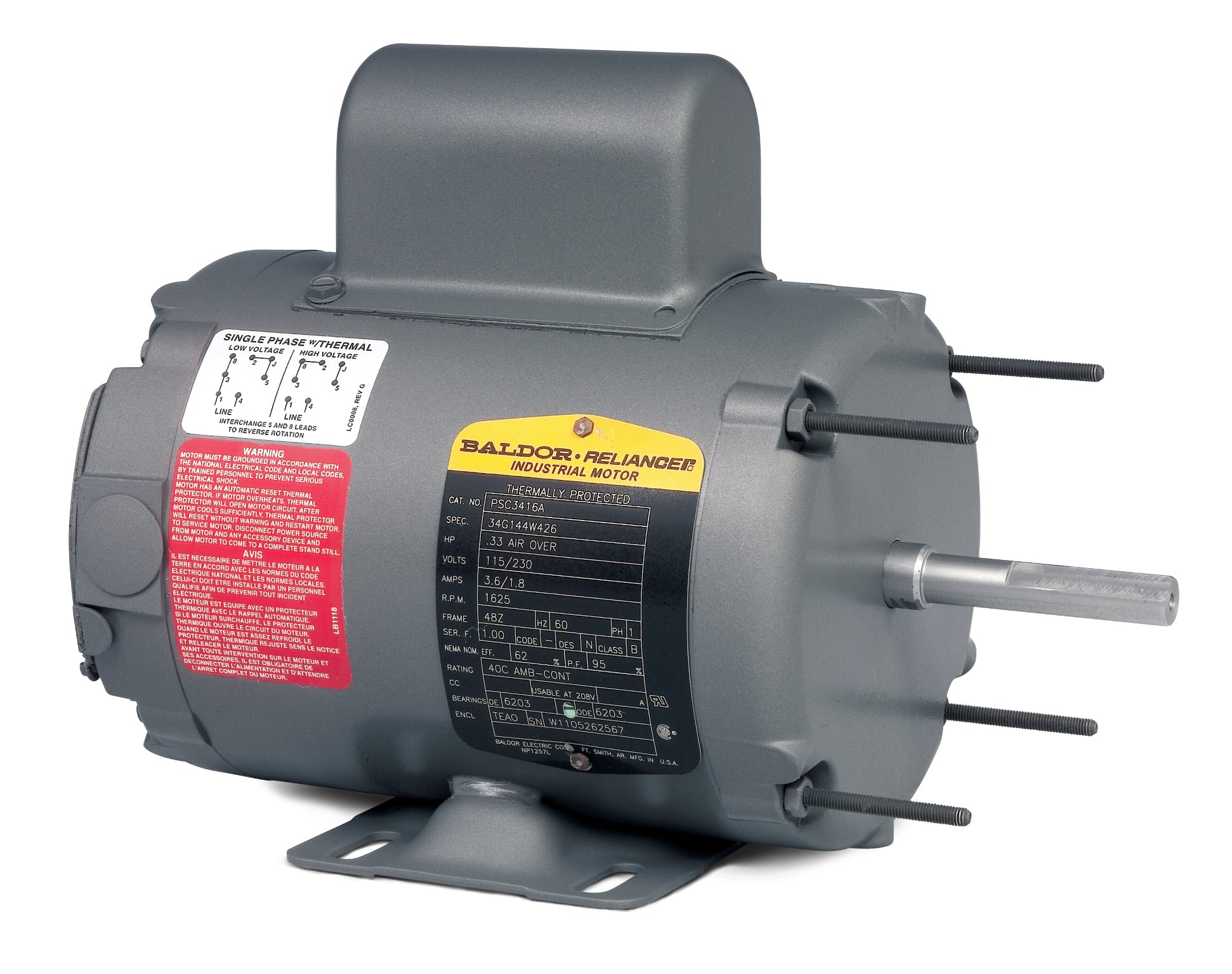

Baldor PSC3416A Direct Drive Fan Motor

Upgrade your equipment with the Baldor PSC3416A, a high-performance direct drive fan motor designed for reliability and efficiency. With a power output of .33 HP and a speed of 1625 RPM, this single-phase motor operates at 60HZ, making it ideal for various applications.

Key specifications include:

  • Power: .33 HP
  • Speed: 1625 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Frame Size: 48Z
  • Type: TEAO (Totally Enclosed Air Over)
  • Product Code: PSC3416A

This motor is perfect for those seeking a dependable solution for their direct drive fan needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your application. If you have questions or need assistance, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor PSC3416A. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568148662
Supplier Part Number PSC3416A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number PSC3416A
Current @ Voltage 1.800 A @ 230.0 V, 3.600 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 62.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 48Z
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3414C
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.34 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1625 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
