Baldor PL1327M - 5 HP, 3450RPM, 1 Phase, 60HZ, 56/56H, 3535LC, Odtf 60HZ Single Phase 5 HP

Save $353.50
BaldorSKU: PL1327M

Price:
Sale price$1,060.50 Regular price$1,414.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

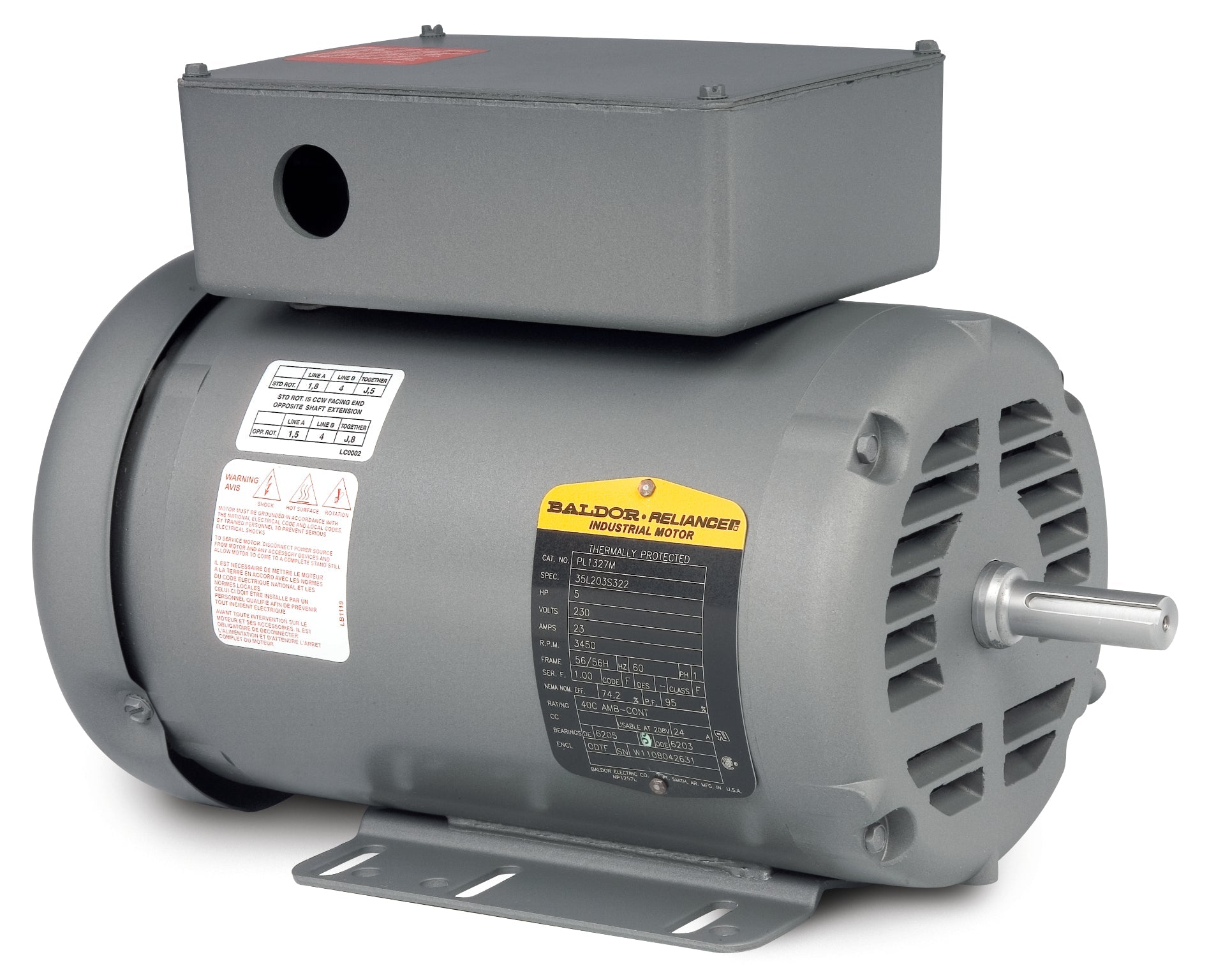

Baldor PL1327M Pressure Washer Motor

Upgrade your pressure washing capabilities with the Baldor PL1327M motor, designed for high performance and reliability. This powerful 5 HP motor operates at 3450 RPM and is specifically engineered for single-phase applications at 60Hz. With a frame size of 56/56H and a model designation of 3535LC, this motor is ideal for a variety of pressure washer setups.

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and efficiency, making it a perfect choice for both commercial and residential use. Whether you're replacing an old motor or upgrading your equipment, the Baldor PL1327M is your go-to solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Explore our extensive range of AC Motors, Baldor-Reliance Motors & Drives, and Pressure Washer Motors to find the perfect fit for your needs.

UPC 781568112526
Supplier Part Number PL1327M
Category AC Motors
Subcategory Pressure Washer Motors
Product Family General Purpose
Agency Approvals CURUS, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 56.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number PL1327M
Current @ Voltage 23.000 A @ 230.0 V, 24.000 A @ 208.0 V
Design Code -
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODTF
Feedback Device NO FEEDBACK
Frame 56/56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 23.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 13.79 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None

Motor Curves
