Baldor PCL3519M - 3 HP, 3450RPM, 1 Phase, 60HZ, 56C, 3532LC, TEFC, F1 60HZ Single Phase 3 HP 56°C

Save $381.50
BaldorSKU: PCL3519M

Price:
Sale price$1,144.50 Regular price$1,526.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

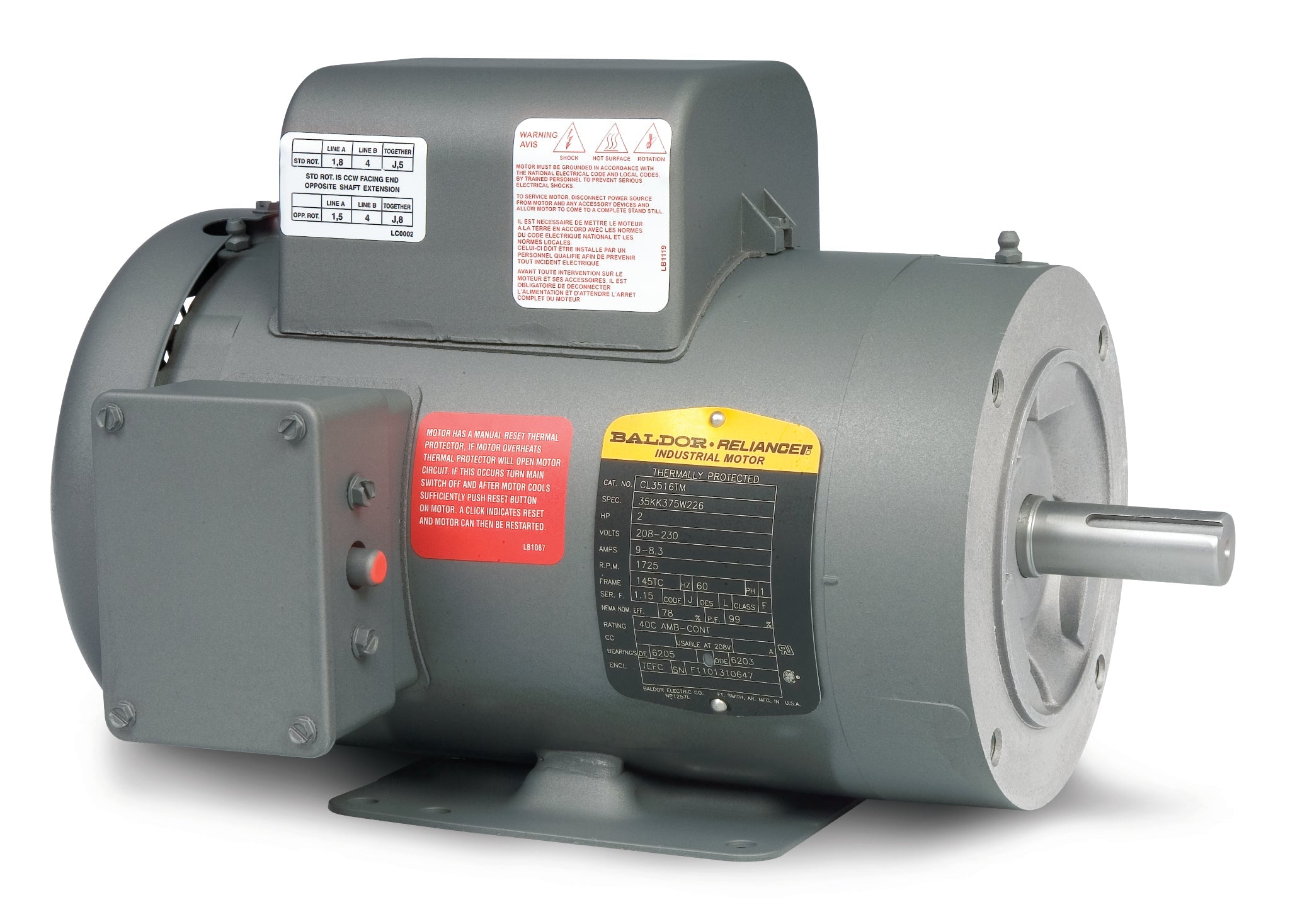

Baldor PCL3519M Pressure Washer Motor

Upgrade your pressure washing capabilities with the Baldor PCL3519M motor, designed for high performance and reliability. This powerful 3 HP motor operates at 3450 RPM and is specifically engineered for single-phase applications at 60Hz. With a 56C frame and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against harsh environments.

Key Features:

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: PCL3519M

This Baldor-Reliance motor is ideal for pressure washer applications, providing the efficiency and performance you need to tackle tough cleaning jobs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor PCL3519M to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568112434
Supplier Part Number PCL3519M
Category AC Motors
Subcategory Pressure Washer Motors
Product Family General Purpose
Agency Approvals CURUS, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 52.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number PCL3519M
Current @ Voltage 12.500 A @ 230.0 V, 13.700 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.5 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 14.10 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None
