Baldor PCL1327M - 5 HP, 3450RPM, 1 Phase, 60HZ, 56HCY, 3535LC, Odtf 60HZ Single Phase 5 HP

Save $372.50
BaldorSKU: PCL1327M

Price:
Sale price$1,117.50 Regular price$1,490.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

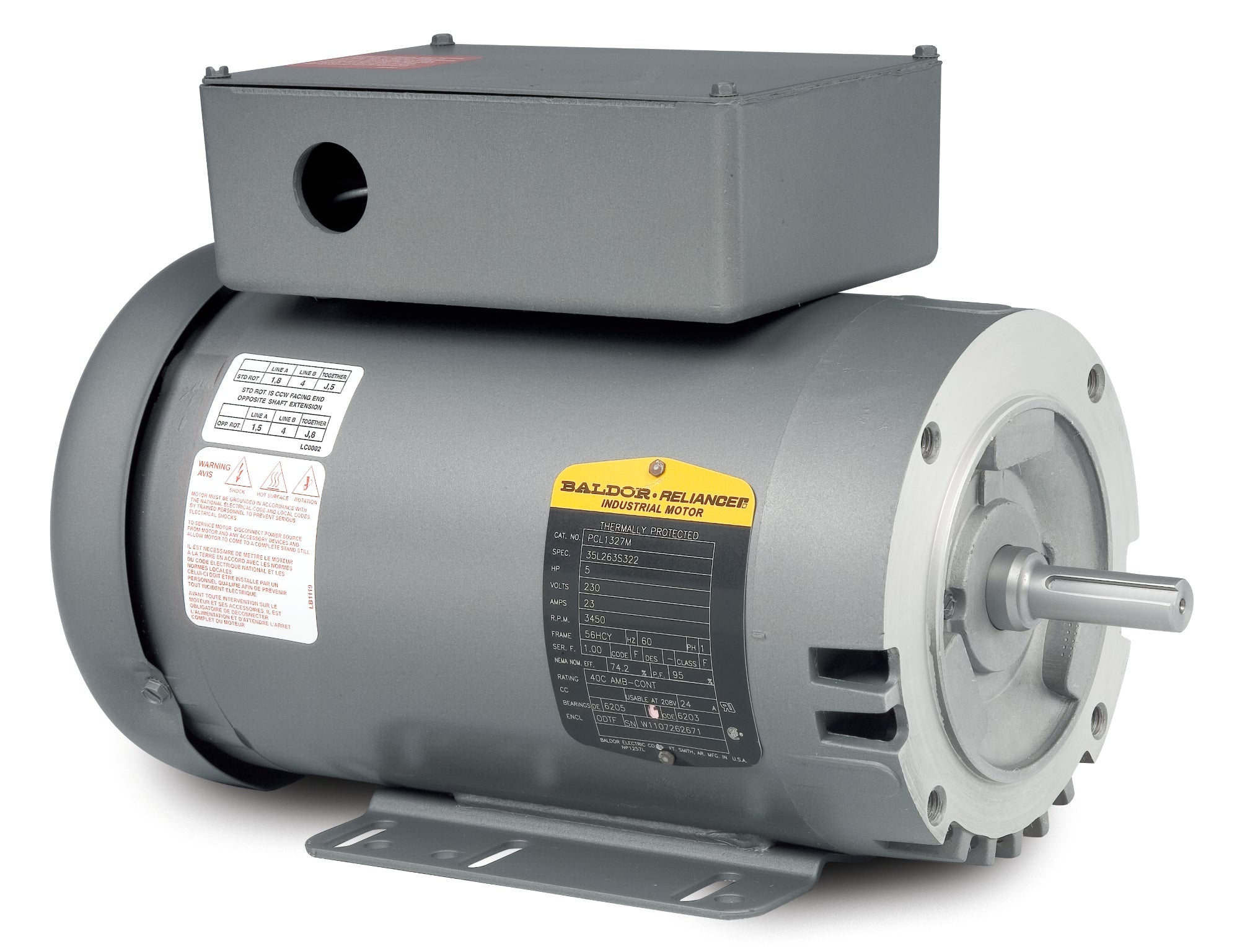

Baldor PCL1327M Pressure Washer Motor

Upgrade your pressure washing capabilities with the Baldor PCL1327M motor, designed for high performance and reliability. This powerful 5 HP motor operates at 3450 RPM and is specifically engineered for single-phase applications at 60HZ. With a frame size of 56HCY and a robust design, this motor is ideal for various pressure washing tasks.

Key Features:

  • Power: 5 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame Size: 56HCY
  • Product Code: PCL1327M

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor PCL1327M to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568112595
Supplier Part Number PCL1327M
Category AC Motors
Subcategory Pressure Washer Motors
Product Family General Purpose
Agency Approvals C UR US, CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 57.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number PCL1327M
Current @ Voltage 23.000 A @ 230.0 V, 24.000 A @ 208.0 V
Design Code -
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODTF
Feedback Device NO FEEDBACK
Frame 56HCY
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 23.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 14.10 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None

Motor Curves
