Baldor P44G3767 - 200 HP, 3570RPM, 3 Phase, 60HZ, 447TS, A44104M, Tef 60HZ Three Phase 200 HP

Save $6,814.00
BaldorSKU: P44G3767

Price:
Sale price$20,442.00 Regular price$27,256.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

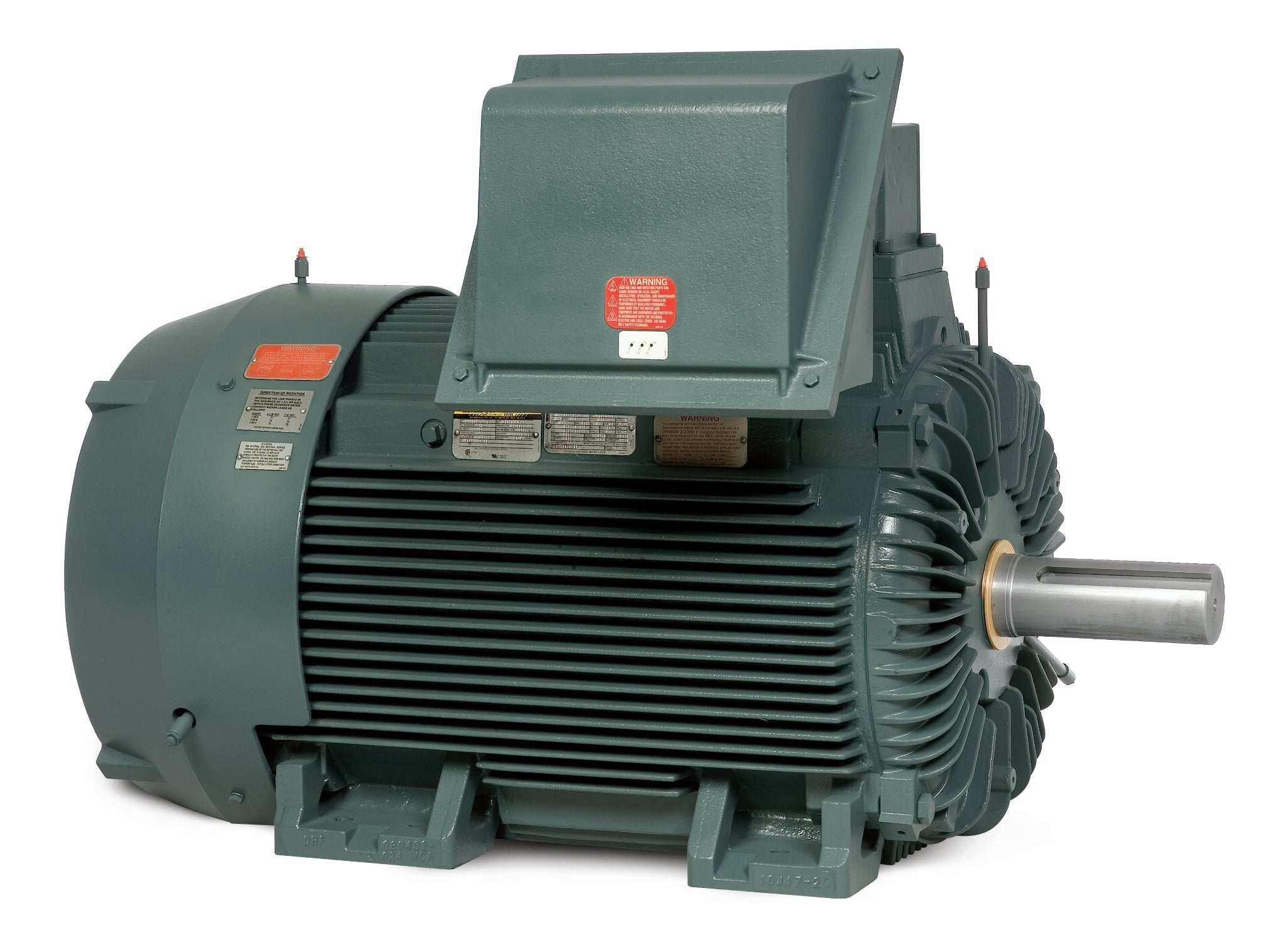

Baldor-Reliance Explosion Proof Severe Duty Motor - Model P44G3767

Introducing the Baldor-Reliance P44G3767, a robust and reliable 200 HP explosion proof severe duty motor designed for demanding industrial applications. With a powerful 3570 RPM and a three-phase configuration, this motor operates efficiently at 60Hz, ensuring optimal performance in challenging environments.

Specifications:

  • Power: 200 HP
  • Speed: 3570 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 447TS
  • Product Code: A44104M
  • Type: TEF (Totally Enclosed Fan Cooled)

This motor is engineered to withstand harsh conditions, making it an ideal choice for applications requiring explosion-proof capabilities. Its durable construction ensures longevity and reliability, reducing downtime and maintenance costs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor P44G3767 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568536353
Supplier Part Number P44G3767
Category AC Motors
Subcategory Explosion Proof Severe Duty Motors
Agency Approvals CCSA US, CSA EEV, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 2433.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 213.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 447TS
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T2D
Heater Indicator No Heater
High Voltage Full Load Amps 213.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44104M
Mounting Arrangement F1
No Load Current 37.9 a
Number of Poles 2
Output 200.000 hp
Output @ Frequency 200.000 HP @ 60 HZ
Overall Length 43.92 IN
Phase 3
Power Factor 91
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Phase Seq-Std Rot (CCWODE)
Shaft Slinger Indicator No Slinger
Speed 3570 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
