Baldor P44G3753 - 200 HP, 1190RPM, 3 Phase, 60HZ, 449T, A44160M, TEFC 60HZ Three Phase 200 HP

Save $8,216.25
BaldorSKU: P44G3753

Price:
Sale price$24,648.75 Regular price$32,865.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

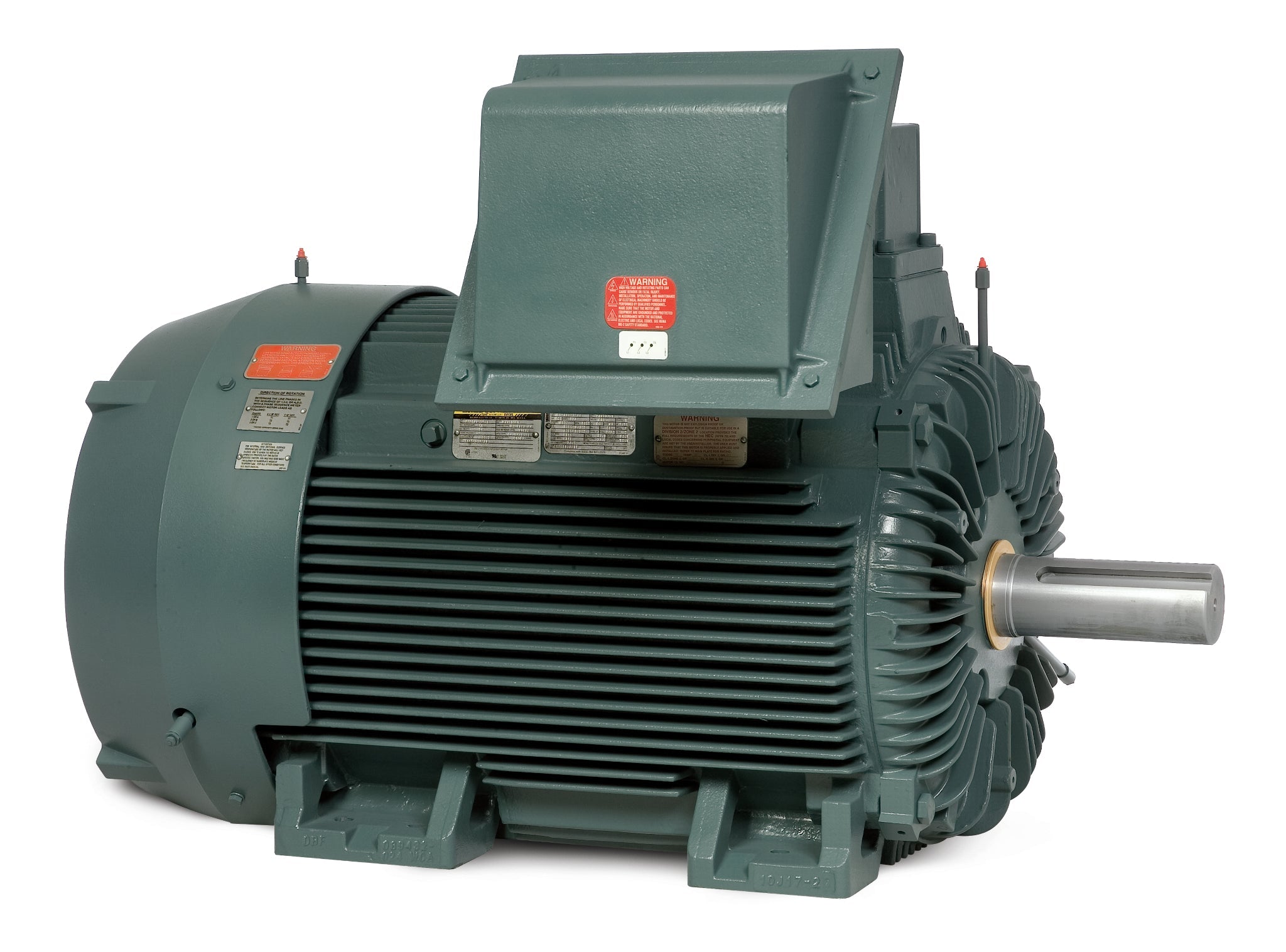

Baldor-Reliance Explosion Proof Severe Duty Motor - Model P44G3753

Introducing the Baldor-Reliance P44G3753, a robust and reliable 200 HP explosion proof severe duty motor designed for demanding industrial applications. With a speed of 1190 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional performance and durability.

Specifications:

  • Power: 200 HP
  • Speed: 1190 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 449T
  • Model Number: A44160M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

This motor is ideal for applications requiring explosion-proof protection and is built to withstand harsh environments, making it a perfect choice for various industrial settings.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor P44G3753 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568519417
Supplier Part Number P44G3753
Category AC Motors
Subcategory Explosion Proof Severe Duty Motors
Agency Approvals CCSA US, CSA EEV, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 3085.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 225.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 449T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3
Heater Indicator No Heater
High Voltage Full Load Amps 225.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44160M
Mounting Arrangement F1
No Load Current 62.1 a
Number of Poles 6
Output 200.000 hp
Output @ Frequency 200.000 HP @ 60 HZ
Overall Length 53.24 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Phase Seq-Std Rot (CCWODE)
Shaft Slinger Indicator No Slinger
Speed 1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
