Baldor P44G3752 - 150 HP, 1190RPM, 3 Phase, 60HZ, 447T, A44120M, TEFC 60HZ Three Phase 150 HP

Save $6,184.75
BaldorSKU: P44G3752

Price:
Sale price$18,554.25 Regular price$24,739.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

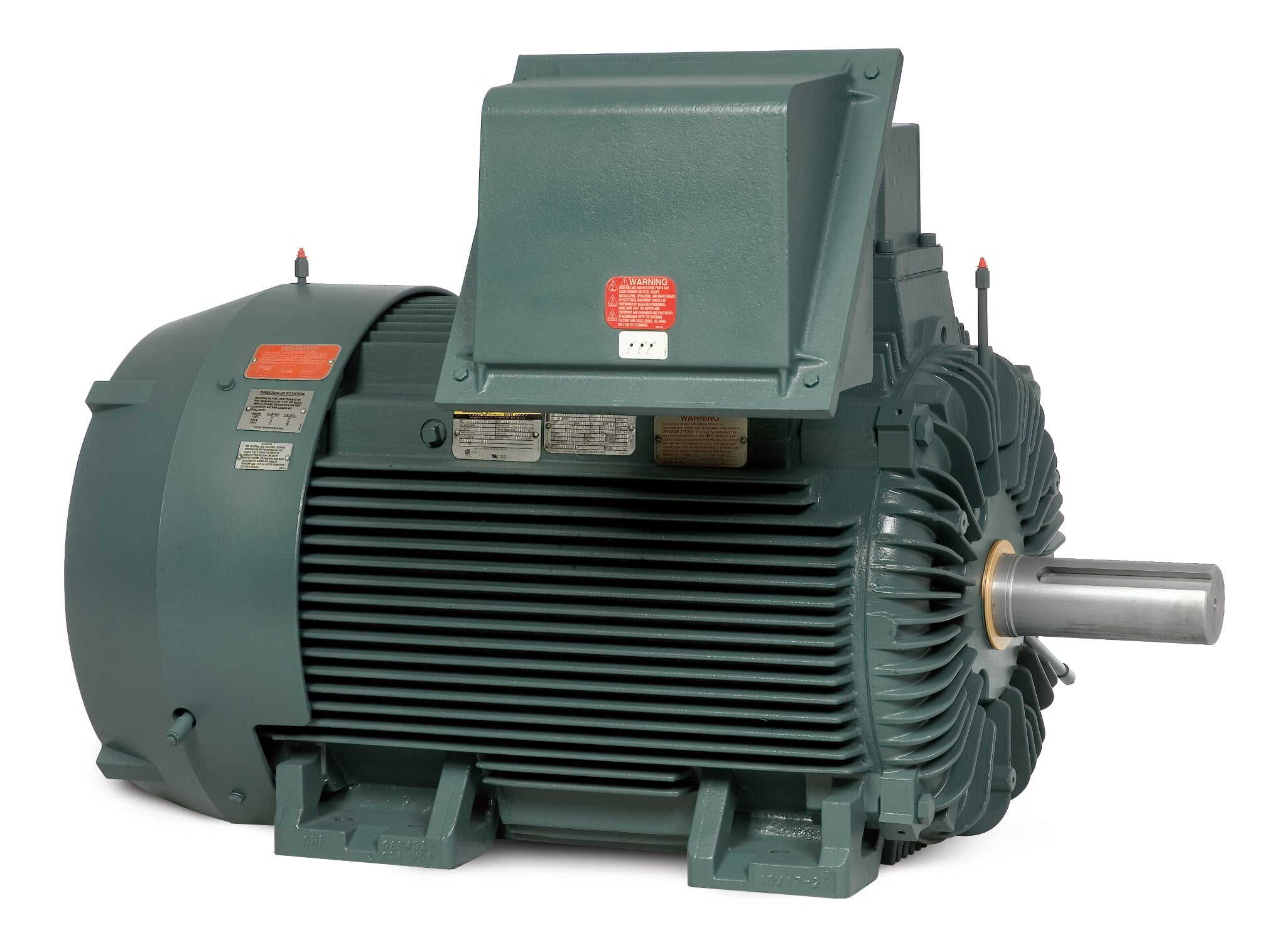

Baldor-Reliance Explosion Proof Severe Duty Motor - Model P44G3752

Experience unparalleled performance with the Baldor-Reliance Explosion Proof Severe Duty Motor, designed for demanding industrial applications. This robust motor features a powerful 150 HP output, operates at 1190 RPM, and is built for three-phase power at 60Hz. With a 447T frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and reliability in harsh environments.

Key Specifications:

  • Power: 150 HP
  • Speed: 1190 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 447T
  • Model Number: A44120M
  • Type: Explosion Proof Severe Duty Motor

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor to ensure compatibility. If you encounter any difficulties, our knowledgeable team is here to help you find the perfect solution.

UPC 781568519400
Supplier Part Number P44G3752
Category AC Motors
Subcategory Explosion Proof Severe Duty Motors
Agency Approvals CCSA US, CSA EEV, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 2598.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 170.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 447T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T2A
Heater Indicator No Heater
High Voltage Full Load Amps 170.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code F
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 1/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44120M
Mounting Arrangement F1
No Load Current 38.6 a
Number of Poles 6
Output 150.000 hp
Output @ Frequency 150.000 HP @ 60 HZ
Overall Length 48.24 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Phase Seq-Std Rot (CCWODE)
Shaft Slinger Indicator No Slinger
Speed 1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
