Description
Baldor Replacement Part — Component

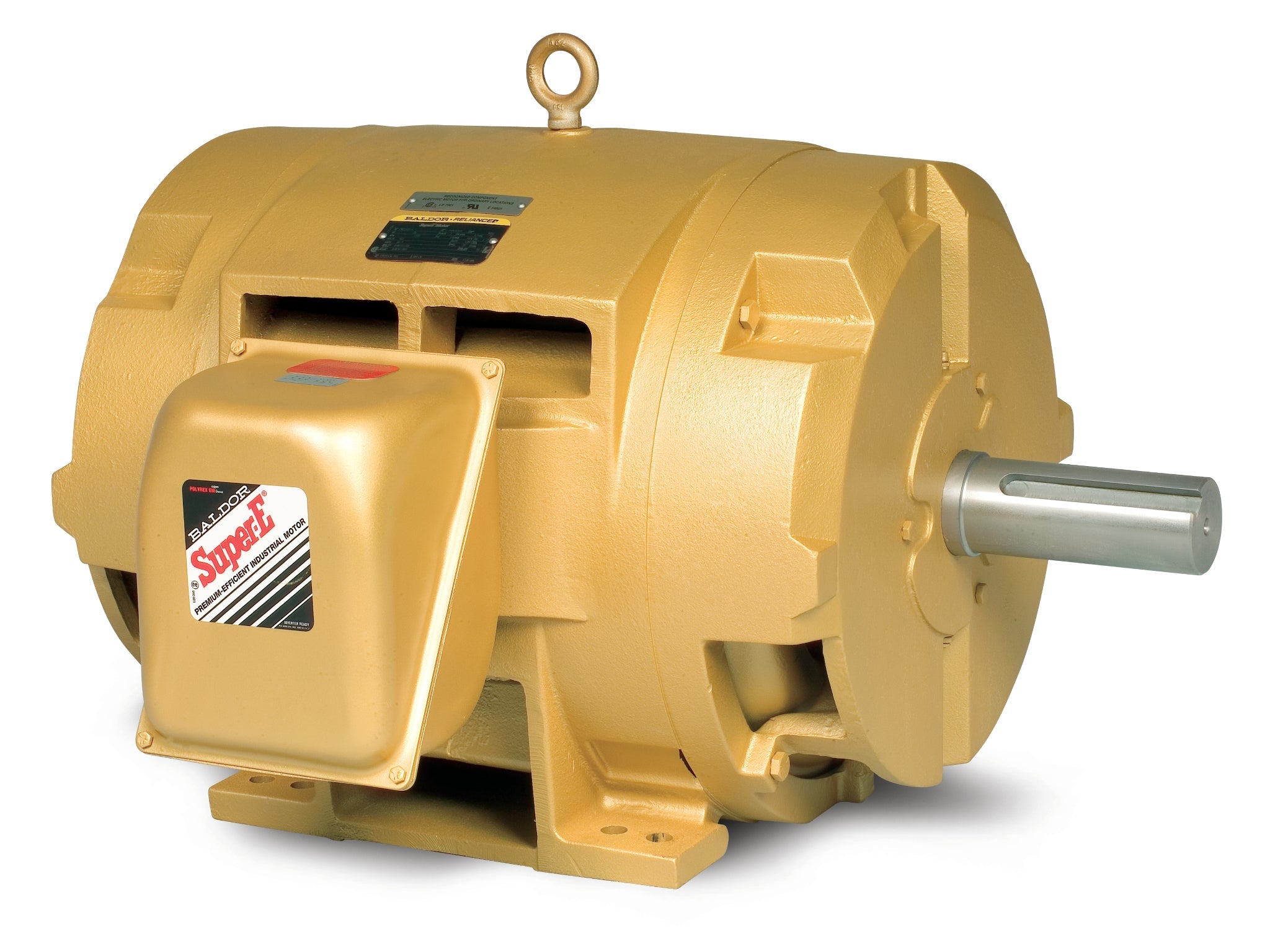

The Baldor P40G302 for Baldor pump systems.
Part Specifications
| Part Number | P40G302 |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 785398341743
- Supplier Part Number
- P40G302
- Category
- AC Motors
- Subcategory
- Three Phase Open
- Agency Approvals
- CCSA US, CCSAUSEEV, CSA EEV
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 1084.001
- Auxillary Box
- No Auxillary Box
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Current @ Voltage
- 86.900 A @ 460.0 V
- Design Code
- B
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 95.0 %
- Enclosure
- DP
- Feedback Device
- NO FEEDBACK
- Frame
- 405T
- Frame Material
- Iron
- Frequency
- 60.00 Hz
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 86.9 a
- Insulation Class
- F
- Inverter Code
- Inverter Ready
- KVA Code
- G
- Lifting Lugs
- No Lifting Lugs
- Motor Lead Quantity/Wire Size
- 6 @ 6 AWG
- Motor Letter Type
- Three Phase
- Motor Standards
- NEMA
- Motor Type
- A40064M
- Mounting Arrangement
- F1
- Number of Poles
- 6
- Output
- 75.000 hp
- Output @ Frequency
- 75.000 HP @ 60 HZ
- Overall Length
- 33.95 IN
- Phase
- 3
- Power Factor
- 85
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- Standard
- Service Factor
- 1.15
- Shaft Diameter
- 2.875 IN
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- No Slinger
- Speed
- 1185 rpm
- Speed Code
- Single Speed
- Starting Method
- Wye Start - Delta Run
- Synchronous Speed
- 1,200 rpm
- Synchronous Speed @ Frequency
- 1200 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Voltage
- 460 V
- Voltage @ Frequency
- 460.0 V @ 60 HZ
