Baldor P36G3402 - 40 HP, 1190RPM, 3 Phase, 60HZ, 364T, A36062M, Dp, F1 60HZ Three Phase Three Phase 40 HP

Save $2,743.25
BaldorSKU: P36G3402

Price:
Sale price$8,229.75 Regular price$10,973.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

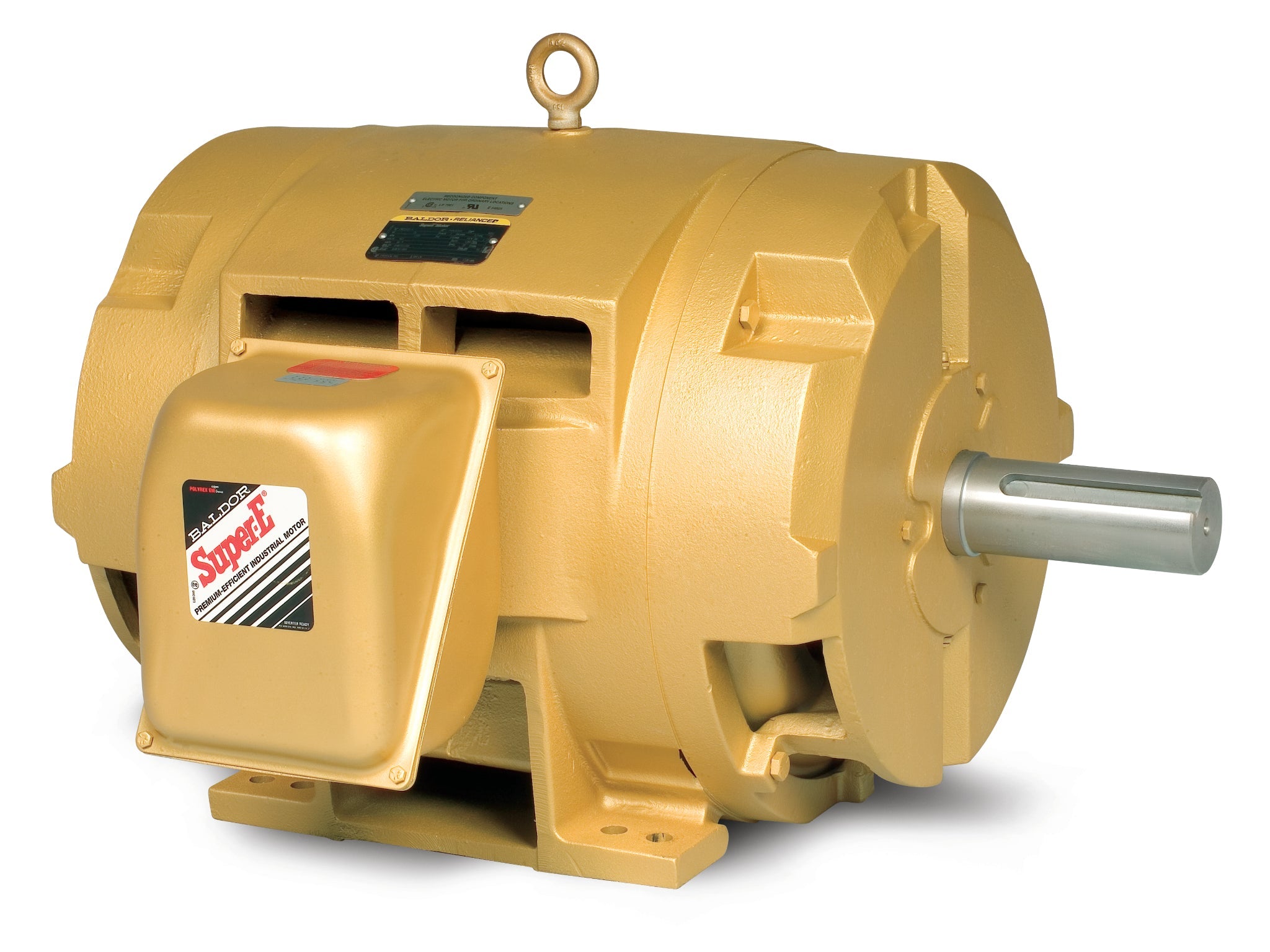

Baldor-Reliance Three Phase Open Motor - Model P36G3402

Experience reliable performance with the Baldor-Reliance Three Phase Open Motor, designed for industrial applications requiring robust power and efficiency. This motor boasts a powerful 40 HP output and operates at 1190 RPM, making it ideal for various heavy-duty tasks.

  • Power: 40 HP
  • Speed: 1190 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 364T
  • Product Code: A36062M
  • Design Type: DP
  • Mounting Type: F1

This motor is part of the Baldor-Reliance Motors & Drives series, known for their durability and efficiency in demanding environments. Whether you are replacing an existing motor or upgrading your system, the Baldor P36G3402 is a top choice.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568505892
Supplier Part Number P36G3402
Category AC Motors
Subcategory Three Phase Open
Agency Approvals CSA EEV, CCSAUSEEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 801.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 49.400 A @ 460.0 V, 98.800 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Enclosure DP
Feedback Device NO FEEDBACK
Frame 364T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 49.4 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36062M
Mounting Arrangement F1
Number of Poles 6
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 29.70 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
